Frequency Mixers

Broadband Frequency Mixers outstanding performance up to 20 GHz!

  • LO power levels from -6 to 10 dBm
  • Can be Mounted on Prototype Base Plate as an integrated modular system
  • Low-cost, custom solutions available!

Active Mixers (Build-in LO Amplifier)

The following Active Mixers only need 0 dBm LO Drive and have excellent LO-RF and LO-IF Isolation.

Part Number PDF Data Data Sheet LO Lvl (dBm) IF in @1dB Comp (dBm) RF in @1dB Comp (dBm) RF/LO MIN (MHz) RF/LO MAX (MHZ) IF MIN (MHz) IF MAX (MHz) Conv Loss (dB) LO-RF Isol (dB) LO-IF Isol (dB)
ECCN
Price
Order Now
MIX2G14G5M3G PDF 0 15 14.8 2000 14000 4.5 6000 7.1 50 50 EAR99 179.99 Order
MIX2G14G500M6G PDF 0 15 14.3 2000 14000 500 6000 8.0 50 45 EAR99 159.99 Order

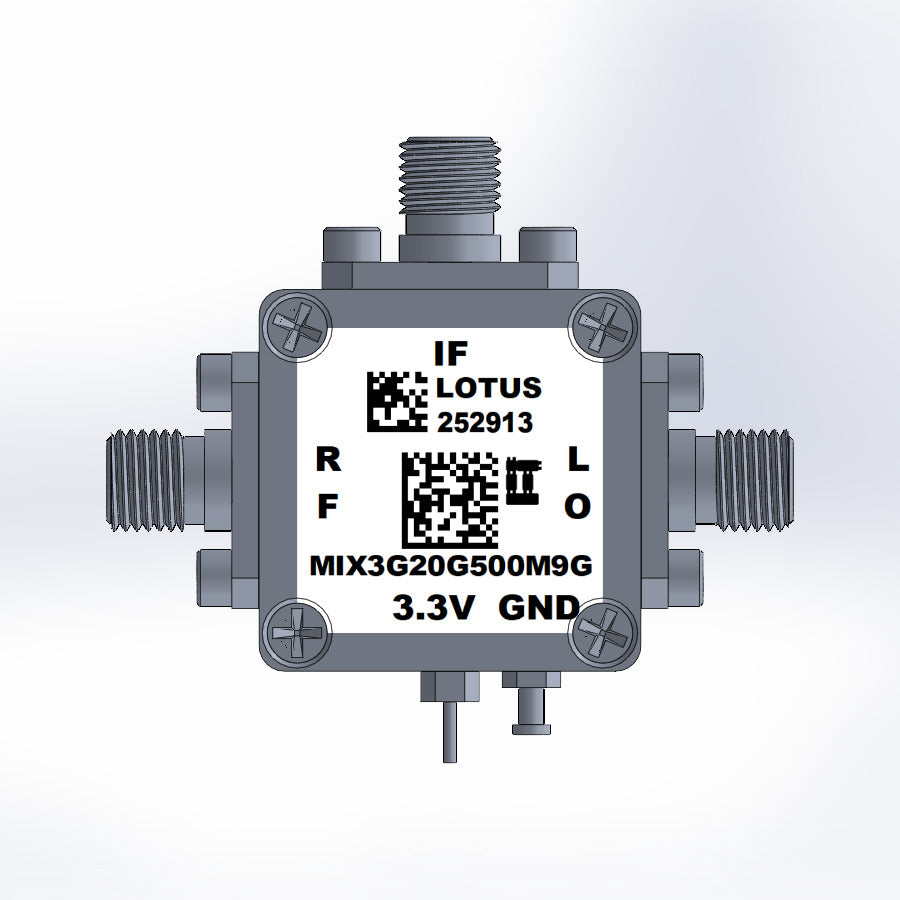

MIX3G20G500M9G PDF 0 15 16 3000 20000 500 9000 9.0 50 50 EAR99 189.99 Order

 Passive Mixers

Part Number PDF Data Data Sheet LO Lvl (dBm) IF in @1dB Comp (dBm) RF in @1dB Comp (dBm) RF/LO MIN (MHz) RF/LO MAX (MHZ) IF MIN (MHz) IF MAX (MHz) Conv Loss (dB) LO-RF Isol (dB) LO-IF Isol (dB)
ECCN
Price
Order Now
MIX1P7G8G PDF 10 3 3 1700 8000 0 3000 6.0 30 18 EAR99 69.99 Order

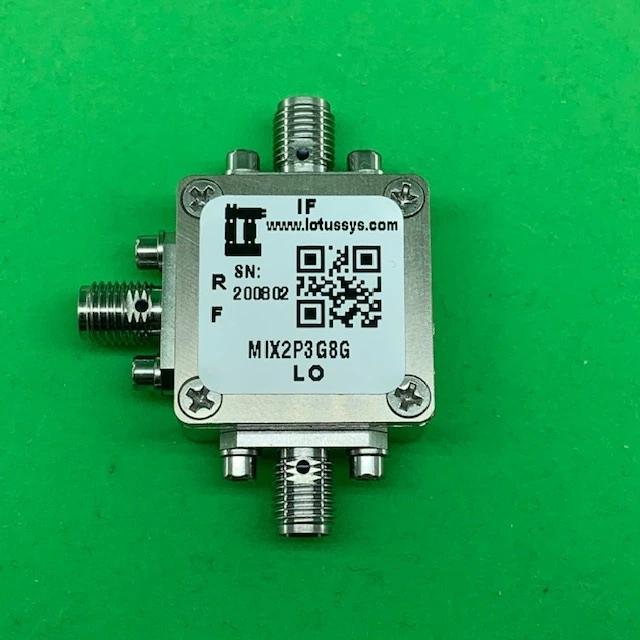

MIX2P3G8G PDF 7 3 3 2300 8000 0 3000 6.0 30 22 EAR99 69.99 Order
MIX2P4G7G PDF 4 3 3 2400 7000 0 3000 6.2 30 21 EAR99 69.99 Order
MIX3P2G15G PDF 10 3 3 3200 15000 0 4000 6.1 32 18 EAR99 69.99 Order

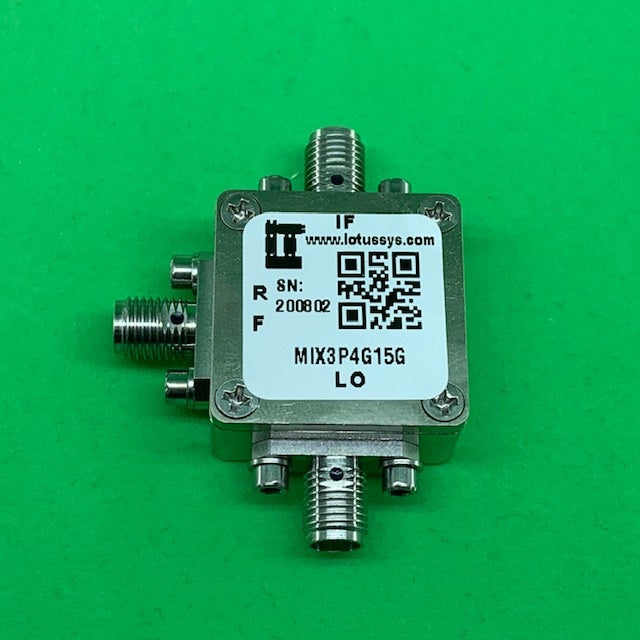

MIX3P4G15G PDF 7 3 3 3400 15000 0 4000 6.8 34 19 EAR99 69.99 Order
MIX3P7G10G PDF 7 3 3 3700 10000 0 4000 6.8 33 22 EAR99 69.99 Order
MIX750M4P2G PDF 7 3 3 750 4200 0 1500 6.0 35 17 EAR99 69.99 Order

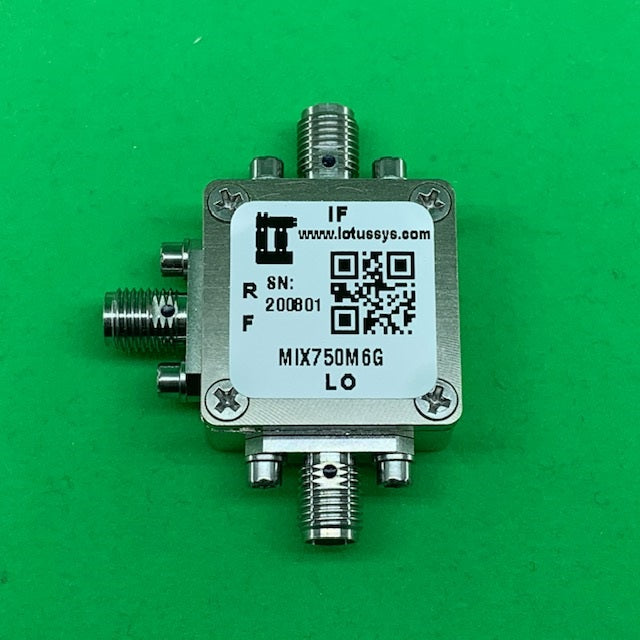

MIX750M6G PDF 10 3 3 750 6000 0 1500 6.2 32 22 EAR99 69.99 Order
