$ 217.80 USD

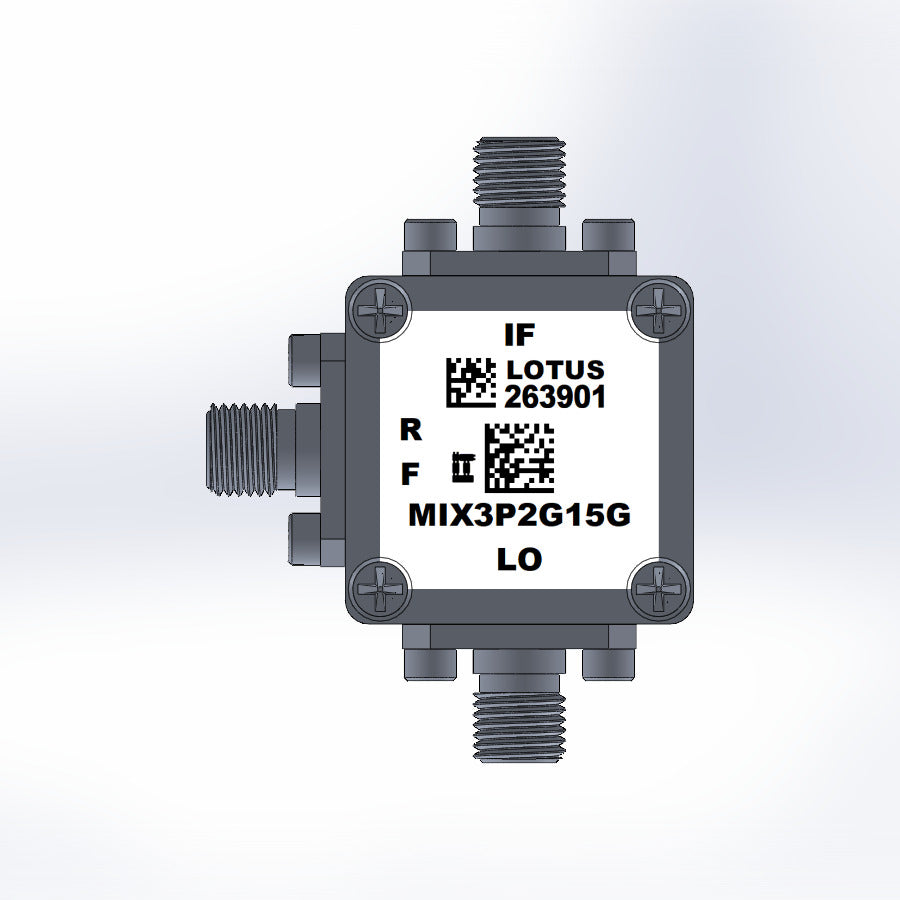

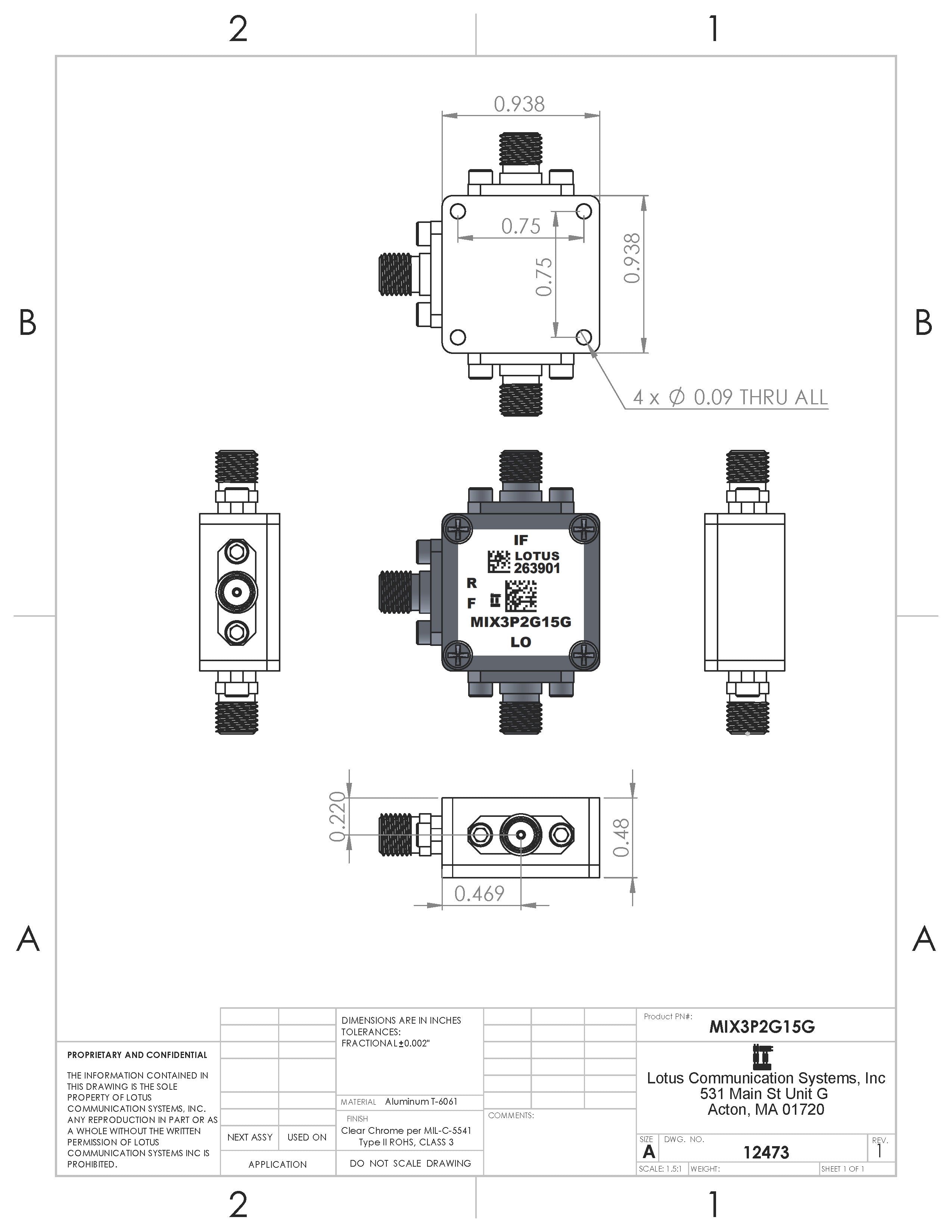

MIX3P2G15G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (3200 to 15000 MHz) in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5P3). It has low insertion loss (6.1dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter.

This Mixer includes the RF Enclosure as shown in picture. SKU#: AK20-001E.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

Collections: Frequency Mixers

Features

Frequency Range: 3200 MHz to 15000 MHz
Low insertion loos, 6.1 dB typ.
LTCC double balanced mixer
Usable as up and down converter
High Quality Rogers RO4350 RF PCB
ROHS Compliant
Operating Temp. (-40C to 85C)
Storage Temp. (-55C to 100C)

Applications

Satellite up/down converter
Mobile Infrastructure
VSAT/ISM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

MIX3P2G15G Datasheet
