    Broadband Medium Power Amplifier outstanding performance up to 20 GHz!

    • Medium Power Amplifier (MPA)
    Type Part Num. Data Sheet F_Low F_High Gain NF dB Gain Flatness OP1dB dBm OPI3 dBm DC (V) DC (mA) Price Order
    MPA MPA5G18G PDF 5G 18G 18 7.0 +/-1.5dB 19.5 28 5 130 $261.80 Order
    MPA MPA5G18GR PDF 5G 18G 18 7.0 +/-1.5dB 19.5 28 5.5~12 130 $294.80 Order
    MPA MPA6G18G PDF 6G 18G 14 4.5 N/A 20 32 5 90 $284.90 Order
    MPA MPA5G20G PDF 5G 20G 19 7.0 +/-2dB 19.5 30 5 114 $379.50 Order
    Medium Power Amplifier 7.0dB NF 5GHz to 18GHz 18dB Gain 20dBm P1dB SMA
    Medium Power Amplifier 7.0dB NF 5GHz to 18GHz 18dB Gain 20dBm P1dB SMA $ 261.80 USD
    Medium Power Amplifier 4.5dB NF 6GHz to 18GHz 14dB Gain 20dBm P1dB SMA
    Medium Power Amplifier 4.5dB NF 6GHz to 18GHz 14dB Gain 20dBm P1dB SMA $ 284.90 USD
    Medium Power Amp. 7.0dB NF 5G~18GHz 18dB Gain 20dBm P1dB SMA Wide Voltage
    Medium Power Amp. 7.0dB NF 5G~18GHz 18dB Gain 20dBm P1dB SMA Wide Voltage from $ 294.80 USD

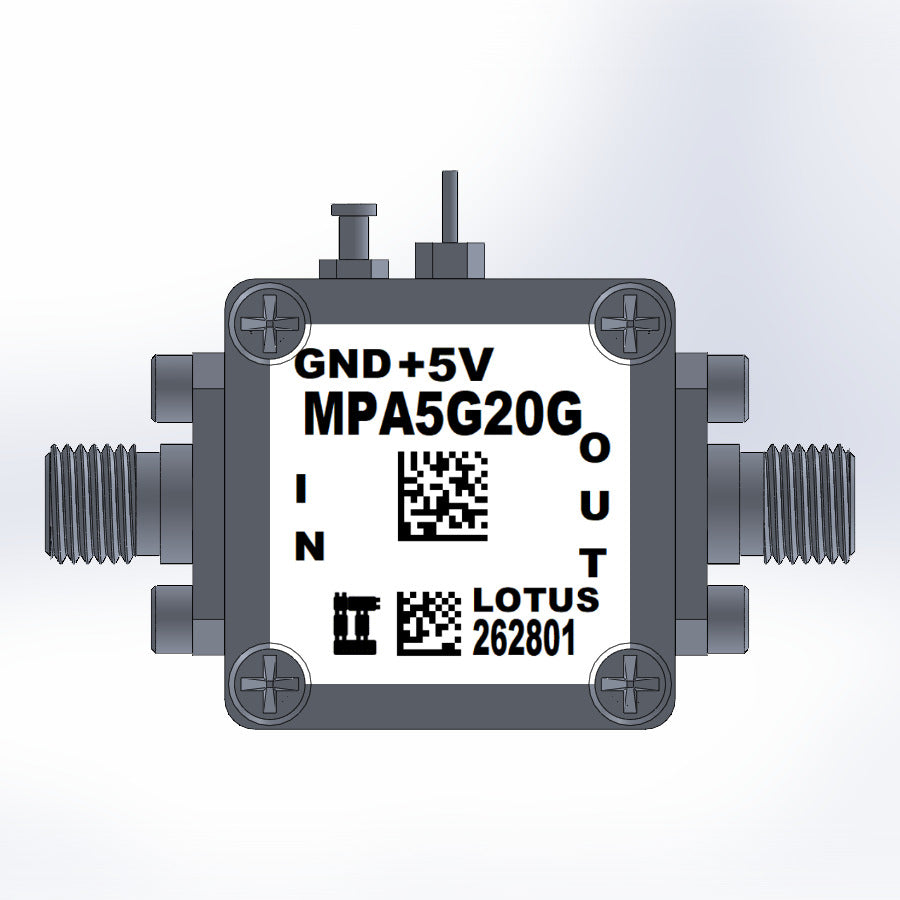

    Medium Power Amplifier 7.0dB NF 5GHz to 20GHz 19dB Gain 20dBm P1dB SMA
    Medium Power Amplifier 7.0dB NF 5GHz to 20GHz 19dB Gain 20dBm P1dB SMA from $ 379.50 USD
