Medium Power Amplifier 7.0dB NF 5GHz to 18GHz 18dB Gain 20dBm P1dB SMA

1 item left

MPA5G18G is a broadband, medium power amplifier with 18 dB typical gain from 5 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  Third order linearity (OIP3) is typically 28 dBm.

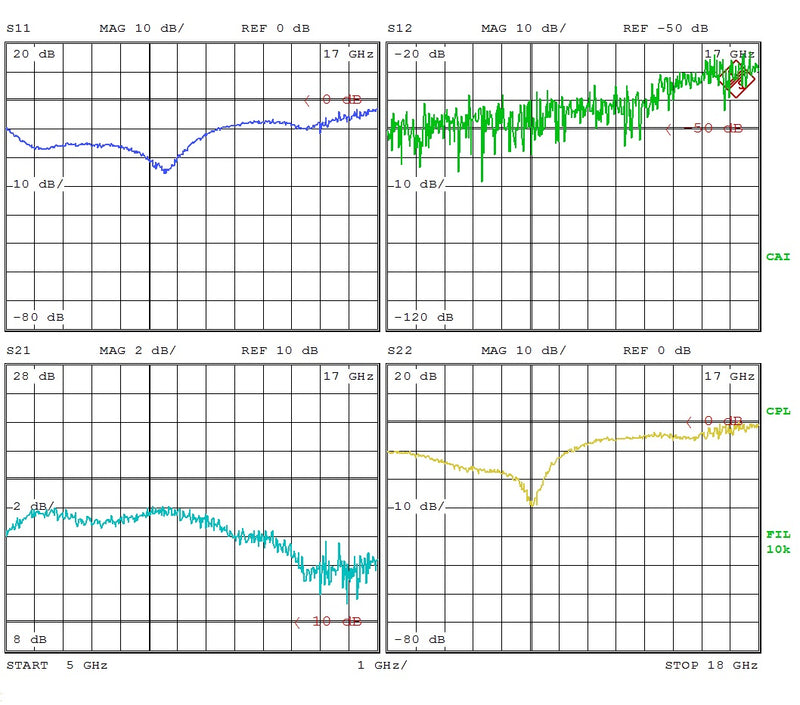

Listed pictures include Product Picture and S Parameter from 5 to 18GHz.

Features:
    * Frequency Range: 5GHz to 18GHz;
    * Noise Figure: typical 7.0dB @ 10 GHz
    * Gain: typical 18 dB @ 10 GHz
    * Output P1dB: 19.5 dBm
    * Output IP3: 28 dBm
    * DC Voltage: +5V
    * Operating Current: 120mA
    * Stainless Steel SMA Female Connector
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Test Instrumentation
    * Wideband A/D System
    * General Purpose Wireless
    * Radar & VSAT
    * SDR & Ham Radio

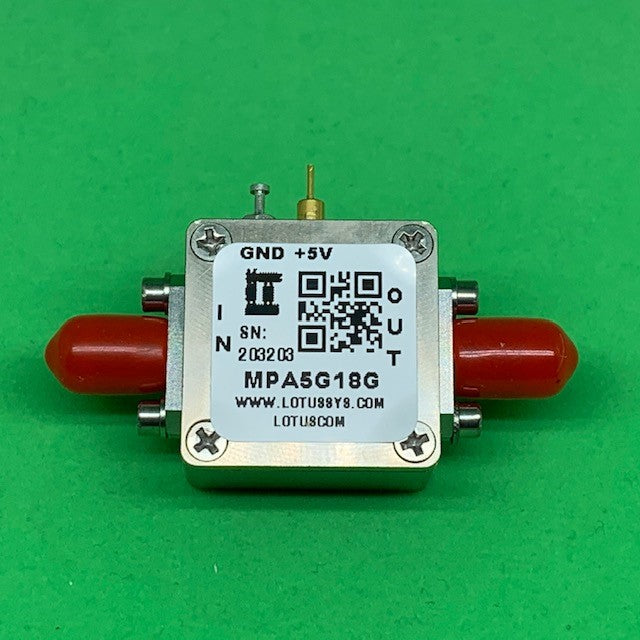

This LNA includes the RF Enclosure as shown in picture.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts.
