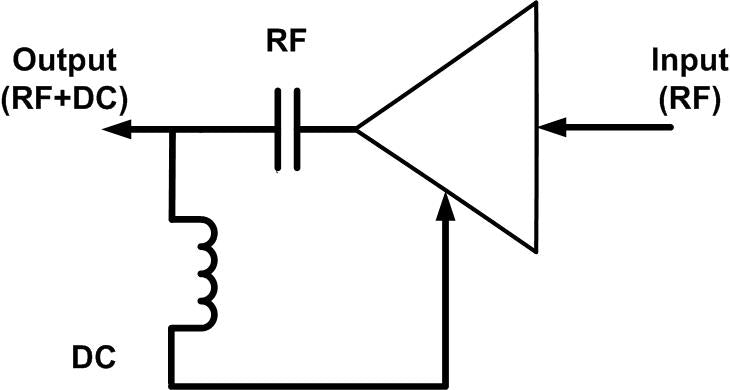

Low Noise Amplifier with Integrated Bias Tee combines LNA with Bias Tee into one module. There are no Pins on the module to hard wire power and ground to.
The DC voltage is fed through output port (SMA Connector) to power the Low Noise Amplifier inside the module. The antenna output or input signal is fed through input port that will be amplified by the LNA.
| Part Number | Data Sheet | Start Freq. | Stop Freq. | Gain | NF dB | Gain Flatness | P1 dBm | IP3 dBm | DC (V) | DC (mA) | ECCN | Price | Order |
| LNA50M4GBT | 50M | 4G | 18 | 0.8 | N/A | 22 | 35 | 3~5 | 40 | EAR99 | $208.00 | Order | |
| LNA100M2GBT | 100M | 2G | 20 | 0.45 | N/A | 20 | 36 | 3.3~5 | 68 | EAR99 | $218.00 | Order | |
| LNA600M6GFGBT | 0.6G | 6G | 21 | 0.9 | 2dB | 19 | 35.5 | 3.3~5 | 56 | EAR99 | $228.00 | Order | |
| LNA700M6GBT | 0.7G | 6G | 20 | 0.4 | N/A | 20 | 35 | 3.3~5 | 70 | EAR99 | $228.00 | Order | |
| LA1G6GHBR | 1G | 6G | 34 | 0.9 | 1dB | 17 | 30 | 8~36 | 70 | EAR99 | $438.00 | Order |

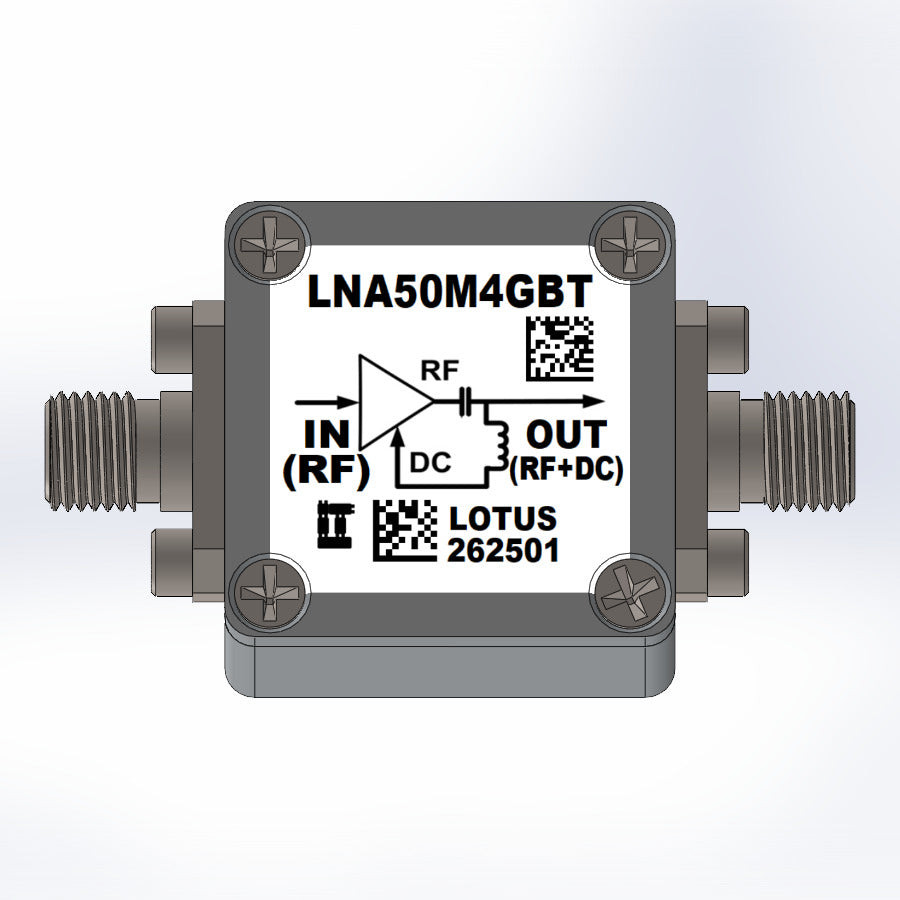

Broadband Low Noise Amplifier 0.8dB NF 50MHz to 4GHz 18dB Gain with Bias Tee
lnabt
Broadband Low Noise Amplifier 0.8dB NF 50MHz to 4GHz 18dB Gain with Bias Tee
$ 208.00 USD
Broadband Low Noise Amplifier 0.8dB NF 50MHz to 4GHz 18dB Gain with Bias Tee
$ 208.00 USD
Broadband Low Noise Amplifier 0.45dB NF 0.1GHz to 2GHz 20dB Gain with Bias Tee
lnabt
Broadband Low Noise Amplifier 0.45dB NF 0.1GHz to 2GHz 20dB Gain with Bias Tee
$ 218.00 USD
Broadband Low Noise Amplifier 0.45dB NF 0.1GHz to 2GHz 20dB Gain with Bias Tee
$ 218.00 USD

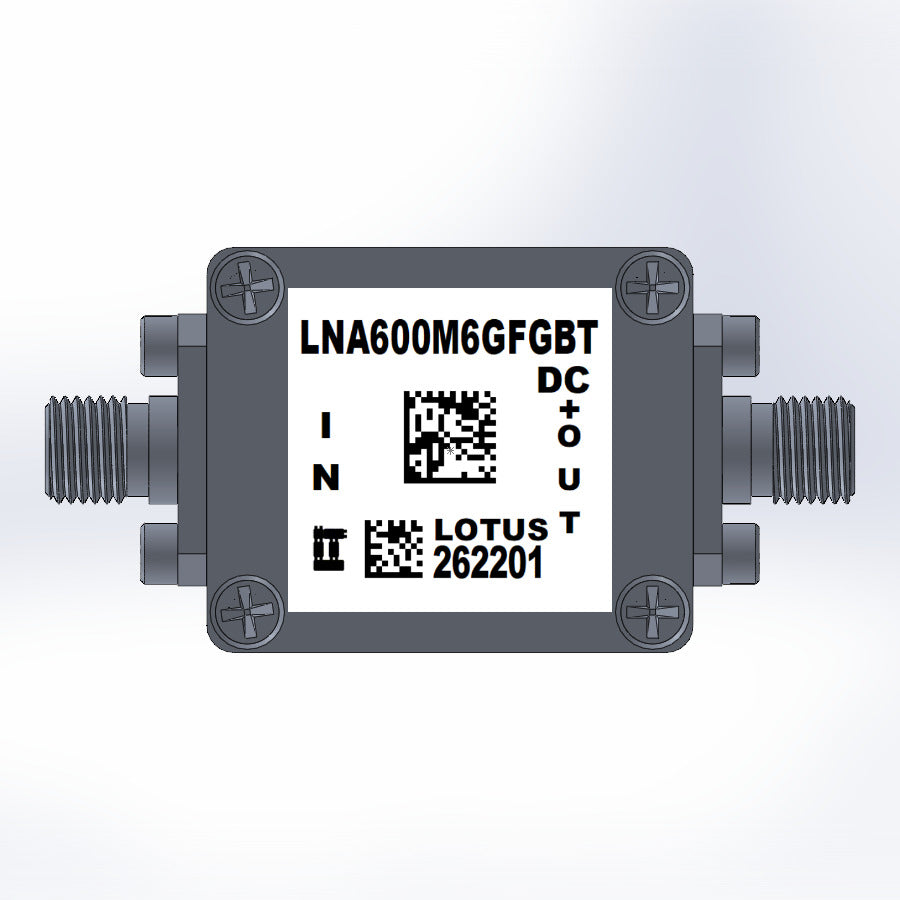

Broadband Low Noise Amplifier 0.95dB NF 0.6GHz to 6GHz 21dB Flat Gain with Bias Tee
lnabt
Broadband Low Noise Amplifier 0.95dB NF 0.6GHz to 6GHz 21dB Flat Gain with Bias Tee
from
$ 228.00 USD
Broadband Low Noise Amplifier 0.95dB NF 0.6GHz to 6GHz 21dB Flat Gain with Bias Tee
from
$ 228.00 USD

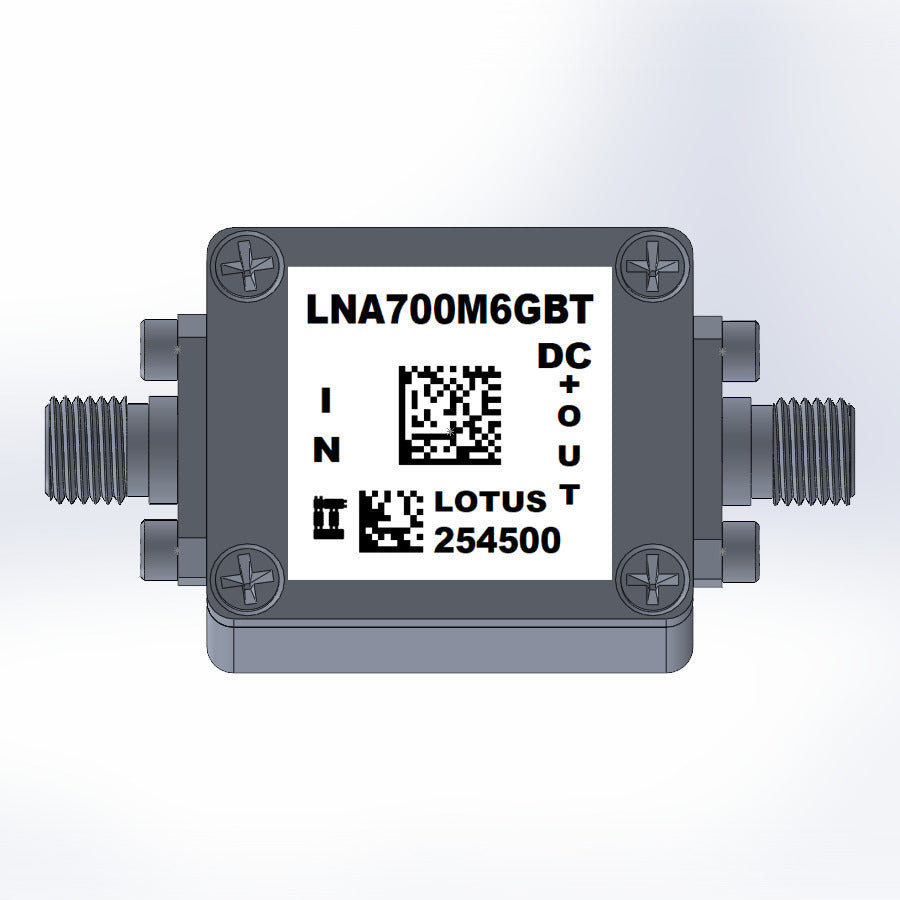

Broadband Low Noise Amplifier 0.4dB NF 0.7GHz to 6GHz 20dB Gain with Bias Tee
lnabt
Broadband Low Noise Amplifier 0.4dB NF 0.7GHz to 6GHz 20dB Gain with Bias Tee
$ 228.00 USD
Broadband Low Noise Amplifier 0.4dB NF 0.7GHz to 6GHz 20dB Gain with Bias Tee
$ 228.00 USD

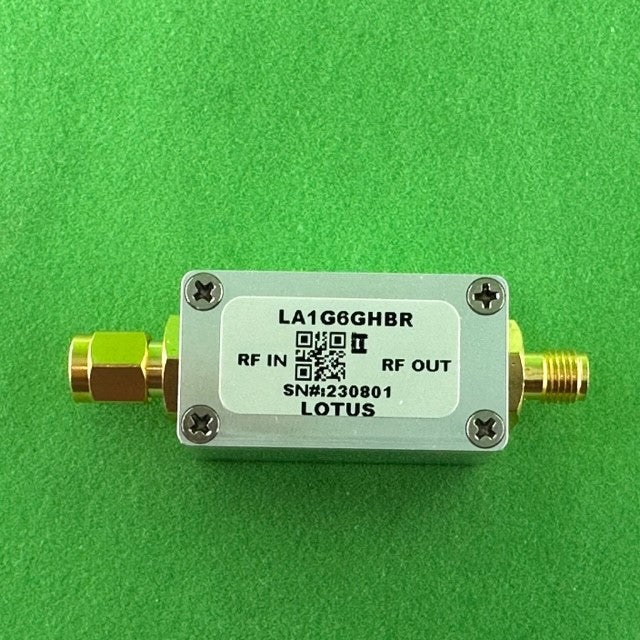

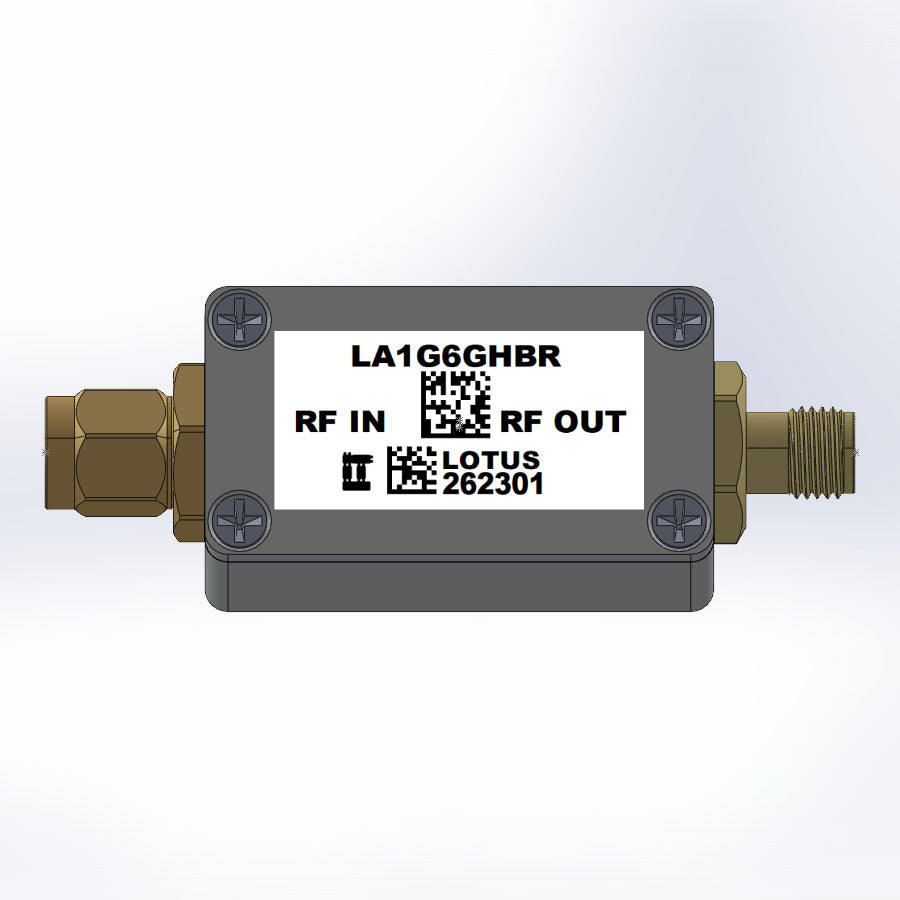

Broadband Low Noise Amplifier 2-Stage Flat Gain 1-6 GHz with Bias Tee
lnabt
Broadband Low Noise Amplifier 2-Stage Flat Gain 1-6 GHz with Bias Tee
from
$ 438.00 USD
Broadband Low Noise Amplifier 2-Stage Flat Gain 1-6 GHz with Bias Tee
from
$ 438.00 USD
