Broadband Low Noise Amp 0.4dB NF 0.7GHz to 6GHz 20dB Gain with Bias Tee

3 items left
LNA700M6GBT is a high-linearity, ultra low noise amplifier in a small 1-1/8"x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.95 GHz, the amplifier typically provides 20 dB gain, +35 dBm OIP3 at a 70 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V. The DC power is fed through output SMA connector. It combines Bias Tee and LNA in one with DC Power via RF output port.

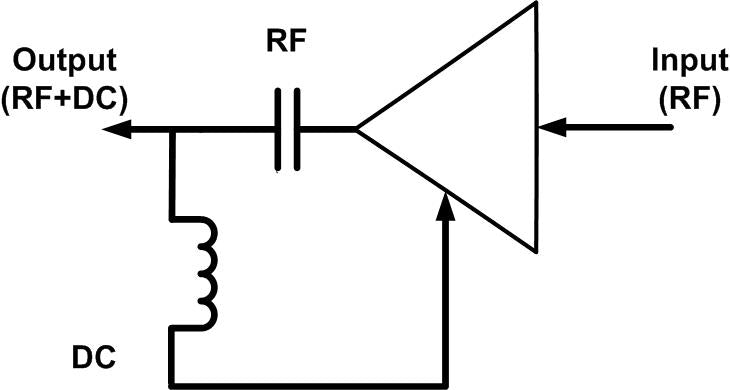

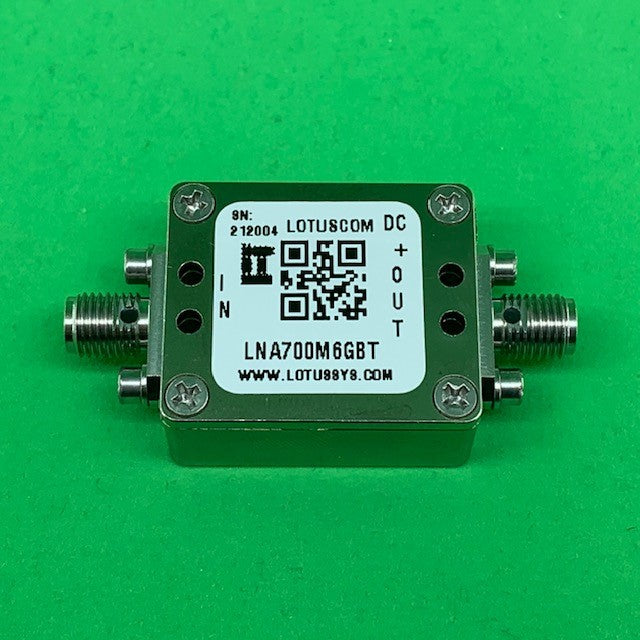

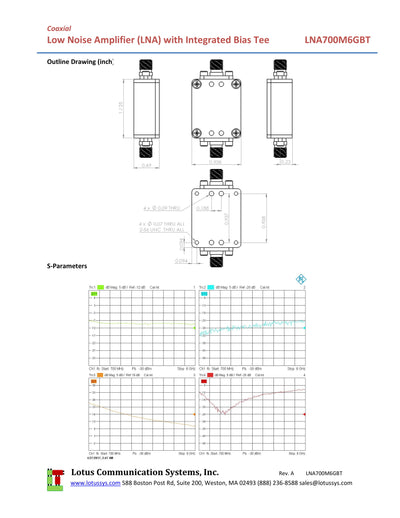

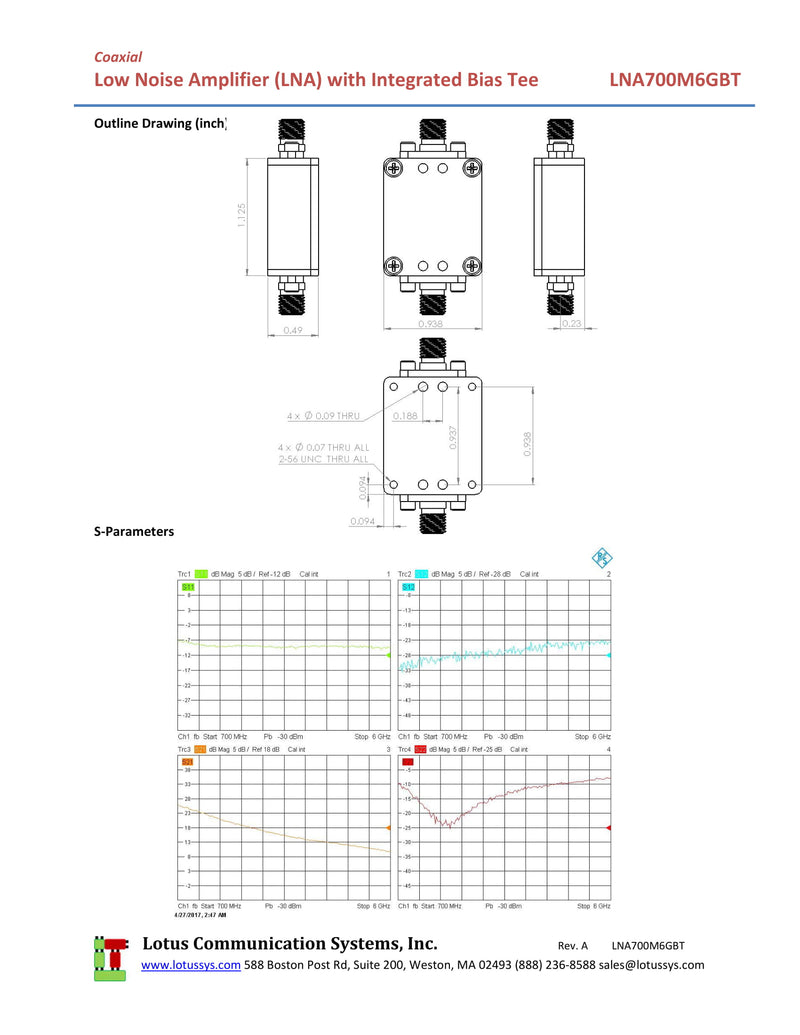

Listed pictures include Product Picture and S Parameter from 700M to 6GHz.

Features:
    * Frequency Range: 700 MHz to 6 GHz;
    * Noise Figure: typical 0.4 dB @ 1.95 GHz
    * Gain: 20 dB Gain at 1.95 GHz
    * Output P1dB: +22 dBm CW
    * Output IP3: +35 dBm
    * DC Voltage: +3.3 to +5V
    * Operating Current: 70 mA
    * Stainless Steel SMA Female Connector
    * High Quality RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Repeaters/DAS
    * Mobile Infrastructure
    * LTE/WCDMA/CDMA/GSM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

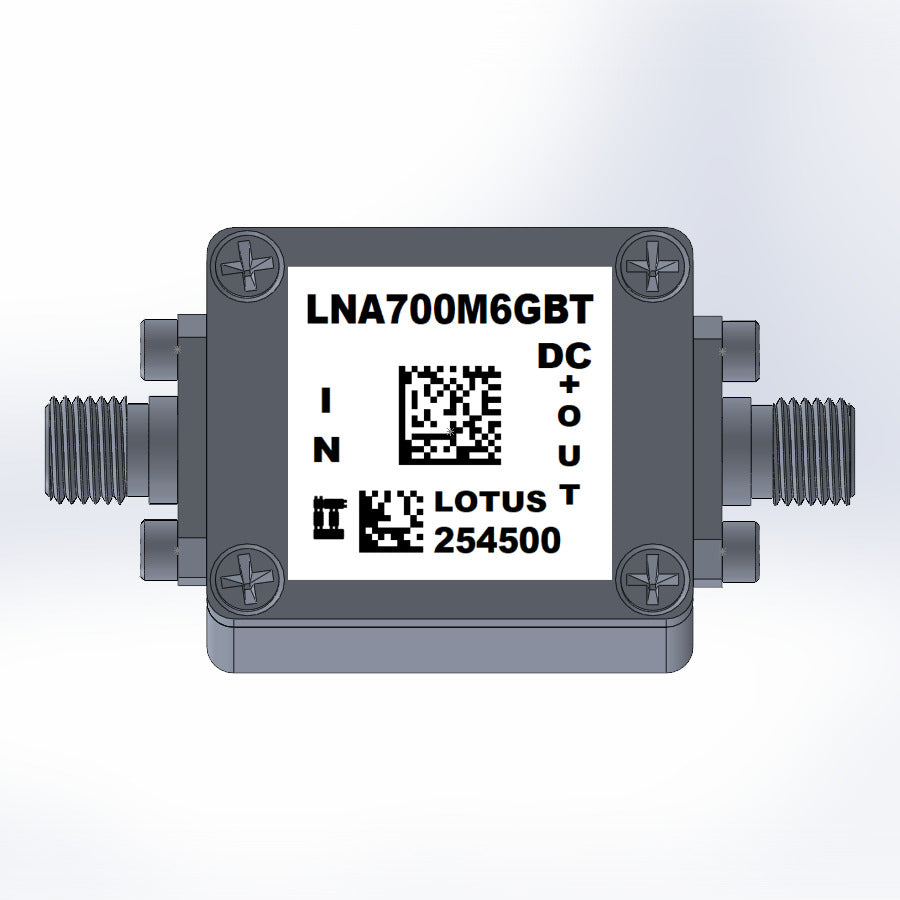

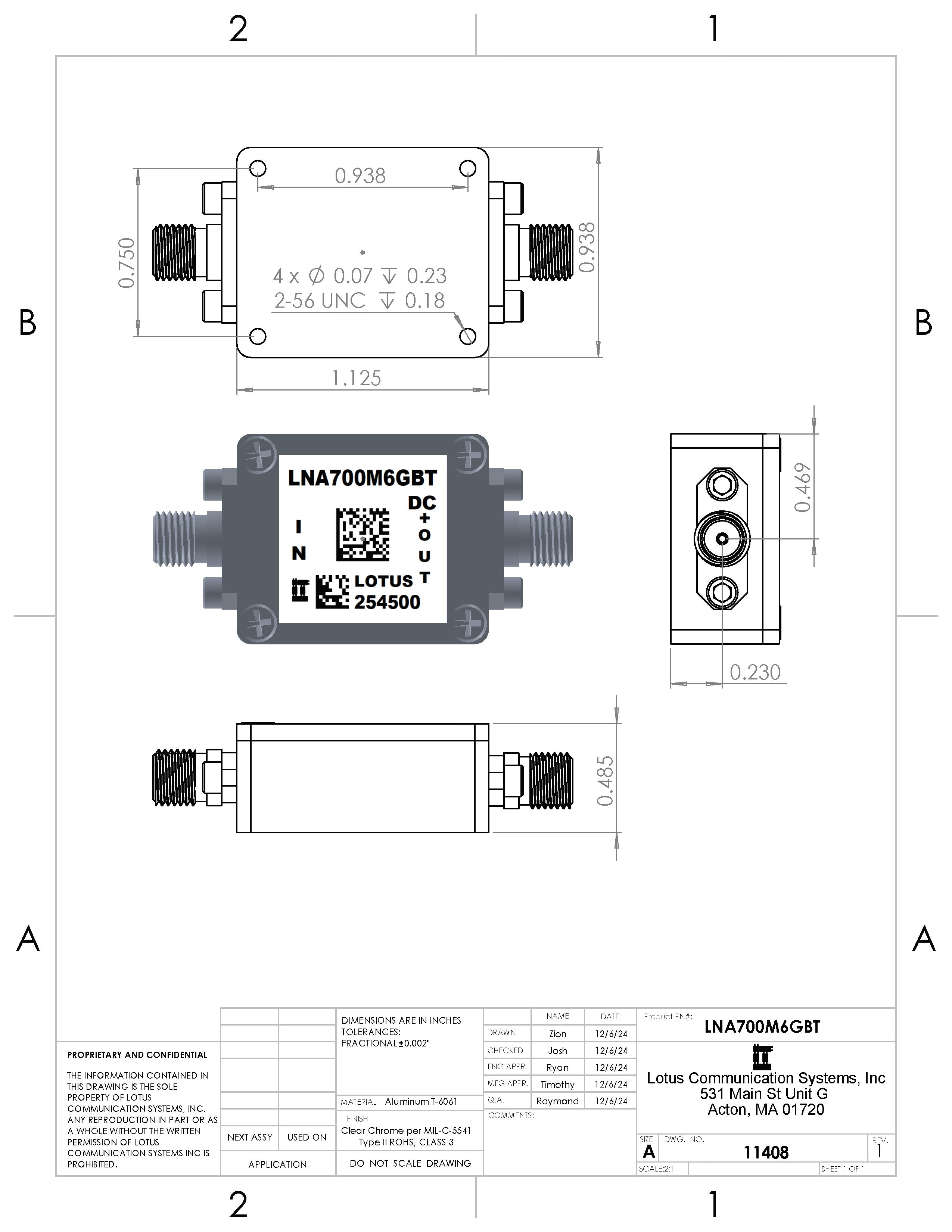

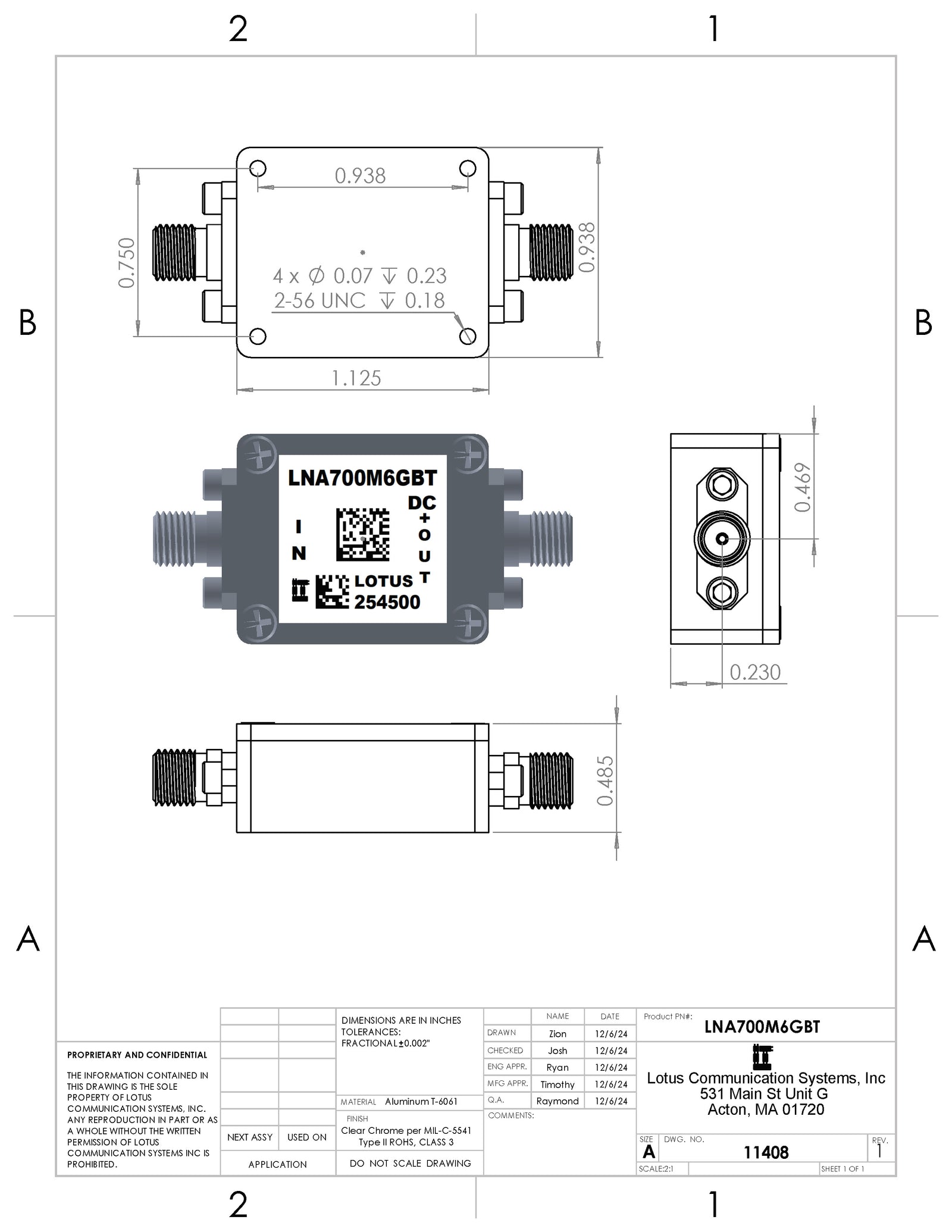

This LNA includes the RF Enclosure as shown in picture.

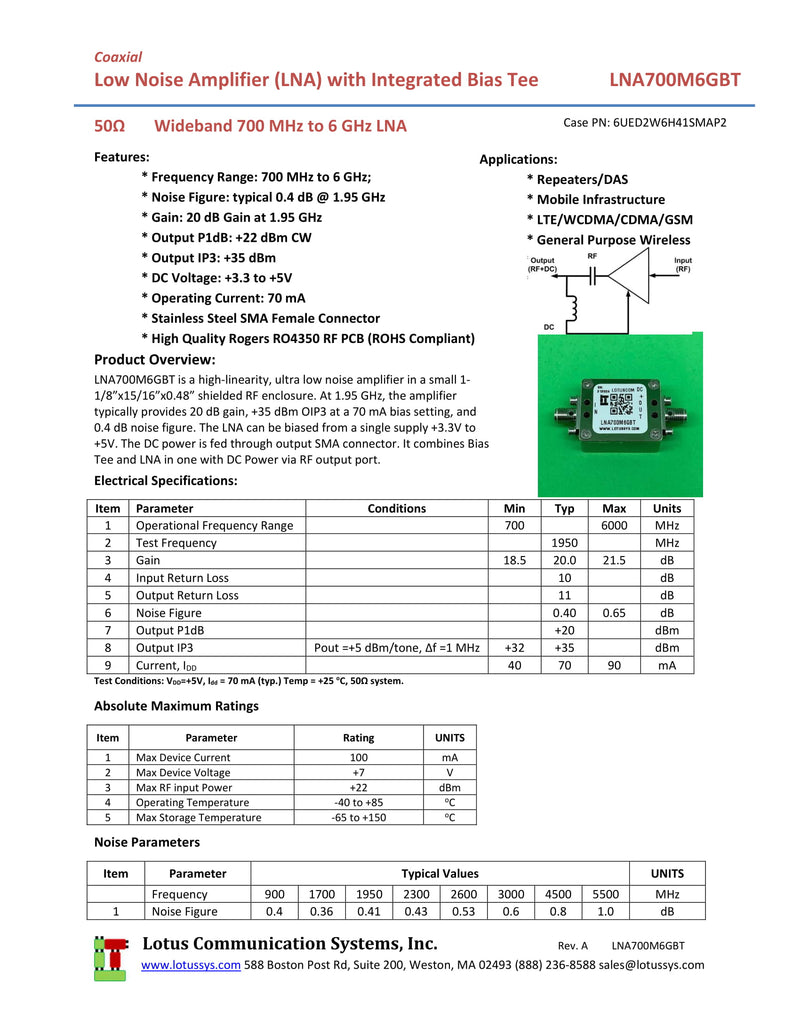

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA700M6GBT.pdf to see detailed specification.

Proudly MADE IN USA. SKU#: AK20_002K
