Oscillator
Lotus offers low phase noise and precise TCXO and OCXO.
- The TCXO and OCXO frequency is standard 10MHz.
- Customized Frequency is available
- IP67 Waterproof option available
- Wide voltage range +4~15V
OCXO:
| Part Number | Data Sheet | Freq. | Temp. Stability | Output Format | Phase Noise | DC (V) | DC (mA) | ECCN | Price | Order Now |

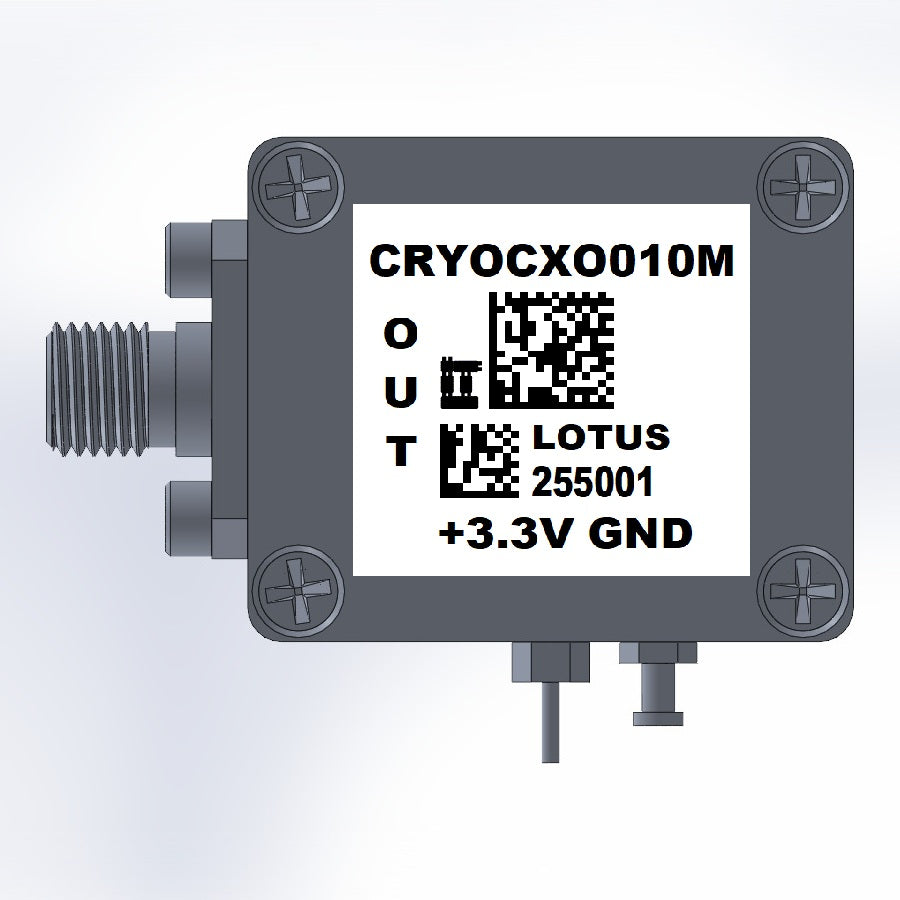

| CRYOCXO010M | 10 MHz | +/-25 ppb | LVCMOS | -149dBc/1KHz | 3.3V | 350 | EAR99 | $286.00 | Order | |
| CRYOCXO010MA | 10 MHz | +/-30 ppb | LVCMOS | -140dBc/1KHz | 3.3V | 350 | EAR99 | $878.00 | Order | |
| CRYOCXO010MR | 10 MHZ | +/-25 ppb | LVCMOS | -149dBc/1KHz | 4V~12V | 350 | EAR99 | $348.00 | Order | |
| CRYOCXO10MS | 10 MHz | +/-30 ppb | Sinewave | -145dBc/1KHz | 5V | 200 | EAR99 | $878.00 | Order | |
| CRYOCXO100MS | 100MHz | +/-30 ppb | Sinewave | -145dBc/1KHz | 5V | 200 | EAR99 | $878.00 | Order |
TCXO:
| Part Number | Data Sheet | Freq. | Temp. Stability | Output Format | Phase Noise | DC (V) | DC (mA) | ECCN | Price | Order Now |
| CRYTCXO010M | 10 MHz | +/-0.28 ppm | Clipped Sinewave | -147dBc/1KHz | 3.3V | 3 | EAR99 | $136.00 | Order | |
| CRYTCXO010MR | 10 MHz | +/-0.28 ppm | Clipped Sinewave | -147dBc/1KHz | 4V~15V | 3 | EAR99 | $166.00 | Order | |
| CRYTCXO020M | 20 MHz | +/-0.28 ppm | CMOS | -147dBc/1KHz | 3.3V | 3 | EAR99 | $136.00 | Order | |
| CRYTCXO020MR | 20 MHz | +/-0.28 ppm | CMOS | -147dBc/1KHz | 4V~15V | 3 | EAR99 | $186.00 | Order |
