Lotus offers a broad range of coaxial multipliers including doublers, triplers, quadruplers, X5, X6 and X12 with output frequencies range from 100K~40GHz!
Frequency Multiplier X2:
| Part Number PDF Data | Data Sheet | Input Freq. Low (GHz) | Input Freq. High (GHz) | Output Freq. Low (GHz) | Output Freq. High (GHz) | RF Input Power (dBm) Min. | RF Input Power (dBm) Max. | Conversion Loss (dB) Typ. | F1 Harmonic Output Below F2 (dBc) Typ. | F1 Harmonic Output Below F2 (dBc) Typ. | F3 Harmonic Output Below F2 (dBc) Typ. |
ECCN |
Price |
Order Now |
| FM2X4G14G | 2 | 7 | 4 | 14 | 12.0 | 18.0 | 12 | 30 | 33 | 23 | EAR99 | $163.90 | Order | |
| FM2X5G10G | 2.5 | 5 | 5 | 10 | 10.0 | 16.0 | 11.5 | 22 | 31 | 16 | EAR99 | $207.90 | Order | |
| FM2X6G9G | 3 | 4.5 | 6 | 9 | -2 | 6 | N/A | 22 | 30 | 15 | EAR99 | $240.90 | Order | |
| FM2X10G20G | 5 | 10 | 10 | 20 | 10.0 | 16.0 | 11.5 | 30 | 35 | 25 | EAR99 | $217.80 | Order | |
| FM2X13G24P6G | 6.5 | 12.3 | 13 | 24.6 | 0 | 6 | N/A | 25 | 25 | 25 | EAR99 | $350.90 | Order | |
| FM2X1P2G4P4G | 0.6 | 2.2 | 1.2 | 4.4 | 10.0 | 15.0 | 11.5 | 26 | 35 | 16 | EAR99 | $217.80 | Order | |
| FM2X2P6G7P2G | 1.3 | 3.6 | 2.6 | 7.2 | 9.0 | 13.0 | 11.5 | 22 | 28 | 24 | EAR99 | $217.80 | Order | |
| FM2X20G25G | 10 | 12.5 | 20 | 25 | -4 | 6 | N/A | 20 | 25 | 25 | EAR99 | $317.90 | Order | |
| FM2X18G29G | 9 | 14.5 | 18 | 29 | 0 | 6 | N/A | 20 | 25 | 25 | EAR99 | $317.90 | Order | |
| FM2X25G31G | 12.5 | 15.5 | 25 | 31 | 0 | 6 | N/A | 25 | 35 | 25 | EAR99 | $328.90 | Order | |
| FM2X23G33G | 11.5 | 16.5 | 23 | 33 | 0 | 6 | N/A | 20 | 30 | 30 | EAR99 | $393.80 | Order |
Frequency Multiplier X3:
| Part Number PDF Data | Data Sheet | Input Freq. Low (MHz) | Input Freq. High (MHz) | Output Freq. Low (MHz) | Output Freq. High (MHz) | RF Input Power (dBm) Min. | RF Input Power (dBm) Max. | Conversion Loss (dB) Typ. | F1 Harmonic Output Below F3 (dBc) Typ. | F2 Harmonic Output Below F3 (dBc) Typ. | F4 Harmonic Output Below F3 (dBc) Typ. |
ECCN |
Price |
Order Now |
| FM3X27M36M | 9 | 12 | 27 | 36 | 12 | 17 | 14 | 4 | 60 | 60 | EAR99 | $185.90 | Order | |
| FM3X300M450M | 100 | 150 | 300 | 450 | 12 | 17 | 13.2 | 4 | 52 | 50 | EAR99 | $185.90 | Order | |
| FM3X450M900M | 150 | 300 | 450 | 900 | 12 | 17 | 14 | -1 | 66 | 67 | EAR99 | $185.90 | Order | |
| FM3X900M1P2G | 300 | 400 | 900 | 1200 | 0 | 6 | 14.5 | 6 | 48 | 52 | EAR99 | $185.90 | Order | |
| FM3X1P2G2P1G | 400 | 700 | 1200 | 2100 | 12 | 17 | 17 | -1.4 | 50 | 53 | EAR99 | $185.90 | Order | |
| FM3X2P1G3G | 700 | 1000 | 2100 | 3000 | 12 | 17 | 17 | 4.5 | 47.5 | 43.5 | EAR99 | $185.90 | Order | |
| FM3X2P1G3P3G | 700 | 1100 | 2100 | 3300 | 10 | 15 | 15.6 | 3 | 40 | 37 | EAR99 | $185.90 | Order | |
| FM3X4P6G7P2G | 1525 | 2400 | 4575 | 7200 | 7 | 11 | 14 | 3 | 55 | 55 | EAR99 | $185.90 | Order | |
| FM3X4P8G6P6G | 1600 | 2200 | 4800 | 6600 | 9 | 13 | 15 | 6 | 45 | 38 | EAR99 | $185.90 | Order | |
| FM3X5P4G8P1G | 1800 | 2700 | 5400 | 8100 | 0 | 6 | 16 | 6 | 40 | 37 | EAR99 | $185.90 | Order | |
| FM3X5P4G9G | 1800 | 3000 | 5400 | 9000 | 7 | 11 | 15 | 6 | 55 | 55 | EAR99 | $185.90 | Order | |
| FM3X6P6G10G | 2200 | 3335 | 6600 | 10005 | 13 | 17 | 14.5 | 6 | 40 | 37 | EAR99 | $185.90 | Order | |
| FM3X6P6G10P5G | 2200 | 3500 | 6600 | 10500 | 13 | 17 | 14.5 | 5 | 33 | 45 | EAR99 | $185.90 | Order | |
| FM3X6P6G12G | 2200 | 4000 | 6600 | 12000 | 7 | 11 | 14.5 | 6 | 52 | 50 | EAR99 | $217.80 | Order | |
| FM3X6P75G12P6G | 2250 | 4200 | 6750 | 12600 | 7 | 11 | 15.5 | 5 | 45 | 50 | EAR99 | $217.80 | Order | |
| FM3X7P8G15G | 2600 | 5000 | 7800 | 15000 | 7 | 11 | 17 | 1 | 48 | 50 | EAR99 | $217.80 | Order |
Frequency Multiplier X4:
| Part Number PDF Data | Data Sheet | Input Freq. Low (GHz) | Input Freq. High (GHz) | Output Freq. Low (GHz) | Output Freq. High (GHz) | RF Input Power (dBm) Min. | RF Input Power (dBm) Max. | Output Power (dBm) Typ. |
Sub-Harmonic Suppression (dBc) Typ. |
ECCN |
Price |
Order Now |
| FM4X14G16G | 3.6 | 4.1 | 14.4 | 16.4 | -15 | 5 | 0 | 22 | EAR99 | $217.80 | Order |
Frequency Multiplier X5:
| Part Number PDF Data | Data Sheet | Input Freq. Low (MHz) | Input Freq. High (MHz) | Output Freq. Low (MHz) | Output Freq. High (MHz) | RF Input Power (dBm) Min. | RF Input Power (dBm) Max. | Conversion Loss (dB) Typ. | F1 Harmonic Output Below F5 (dBc) Typ. | F4 Harmonic Output Below F5 (dBc) Typ. | F6 Harmonic Output Below F5 (dBc) Typ. |
ECCN |
Price |
Order Now |
| FM5X37P5M52P5M | 7.5 | 10.5 |
37.5 |
52.5 |
0 | 5 | 22.9 | -1.3 | 39 | 37 |
EAR99 | $179.95 | Order | |
| FM5X250M500M | 50 | 100 |
250 |
500 |
17 | 17 | 22 | 2 | 56 | 57 |
EAR99 | $179.95 | Order | |
| FM5X500M750M | 100 | 150 |
500 |
750 |
17 | 17 | 22 | -1 | 60 | 67 | EAR99 | $179.95 | Order | |
| FM5X750M1G | 150 | 200 |
750 |
1000 |
17 | 17 | 22 | 2 | 63 | 68 | EAR99 | $179.95 | Order | |

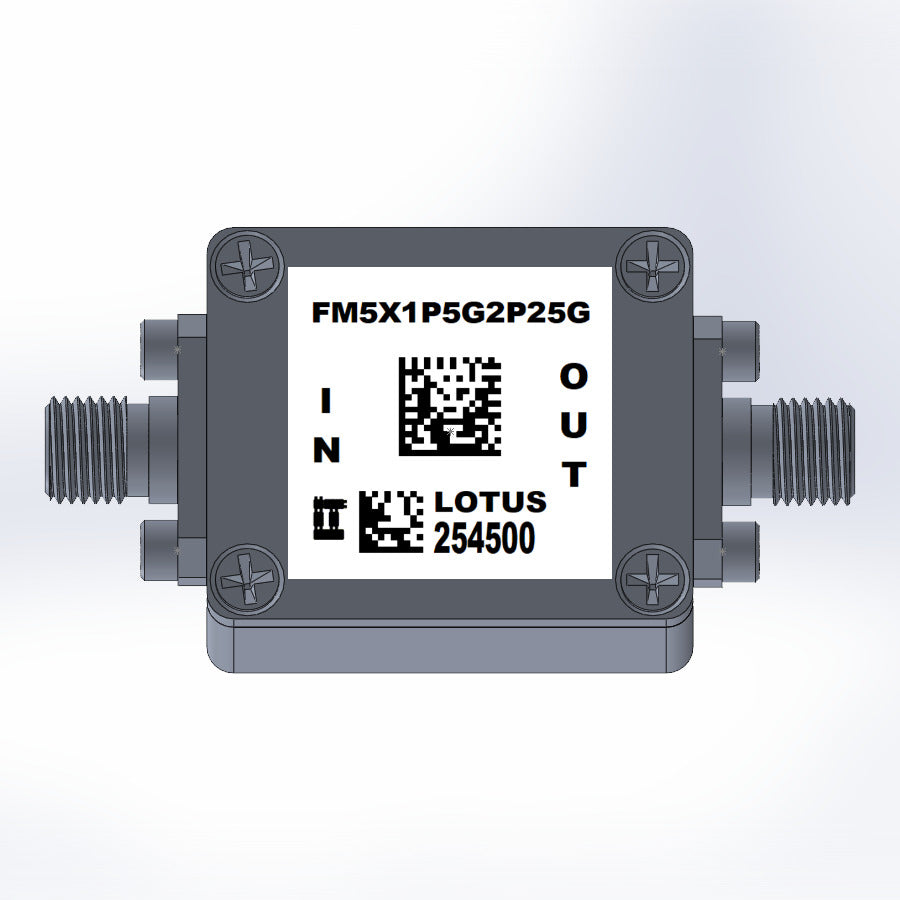

| FM5X1P5G2P25G | 300 | 450 |
1500 |
2250 |
17 | 17 | 21.2 | 5.3 | 52 | 56 | EAR99 | $179.95 | Order | |
| FM5X2P25G2P75G | 450 | 550 |
2250 |
2750 |
17 | 17 | 22 | 4.8 | 54 | 57 | EAR99 | $179.95 | Order | |
| FM5X2P75G3P5G | 550 | 700 |
2750 |
3500 |
17 | 17 | 22 | 6.5 | 40 | 40 | EAR99 | $179.95 | Order | |

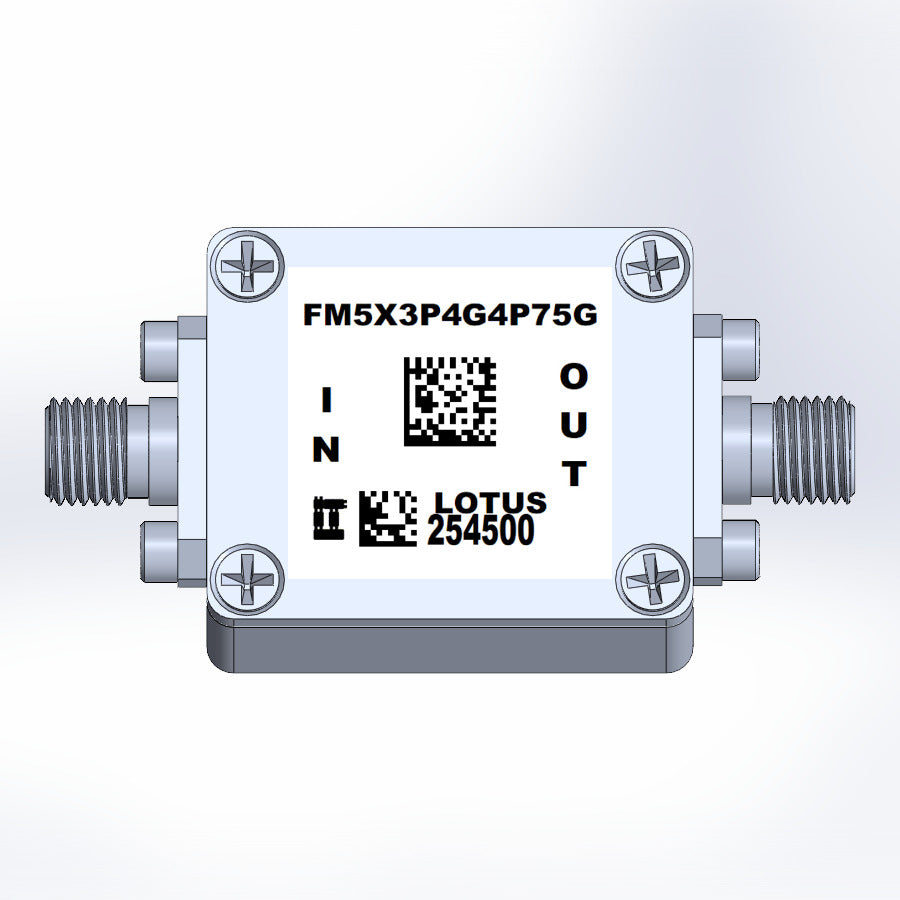

| FM5X3P4G4P75G | 675 | 950 |
3375 |
4750 |
10 | 16 | 22 | 4 | 55 | 60 | EAR99 | $189.95 | Order | |
| FM5X5G8G | 1000 |
1600 |
5000 | 8000 | 7 | 11 | 28 | -3.5 | 56 | 58 | EAR99 | $189.95 | Order |
