Passive Freq. Multiplier X2 (OUTPUT 4G to 14 GHz) FM2X4G14G

Passive Freq. Multiplier X2 (OUTPUT 4G to 14 GHz) FM2X4G14G

Passive Freq. Multiplier X2 (OUTPUT 4G to 14 GHz) FM2X4G14G

Passive Freq. Multiplier X2 (OUTPUT 4G to 14 GHz) FM2X4G14G

$ 149.00 USD

Part Number: FM2X4G14G is a passive Frequency Multiplier X2 with input frequency range from 2 GHz to 7 GHz and output frequency range from 4 GHz to 14 GHz.

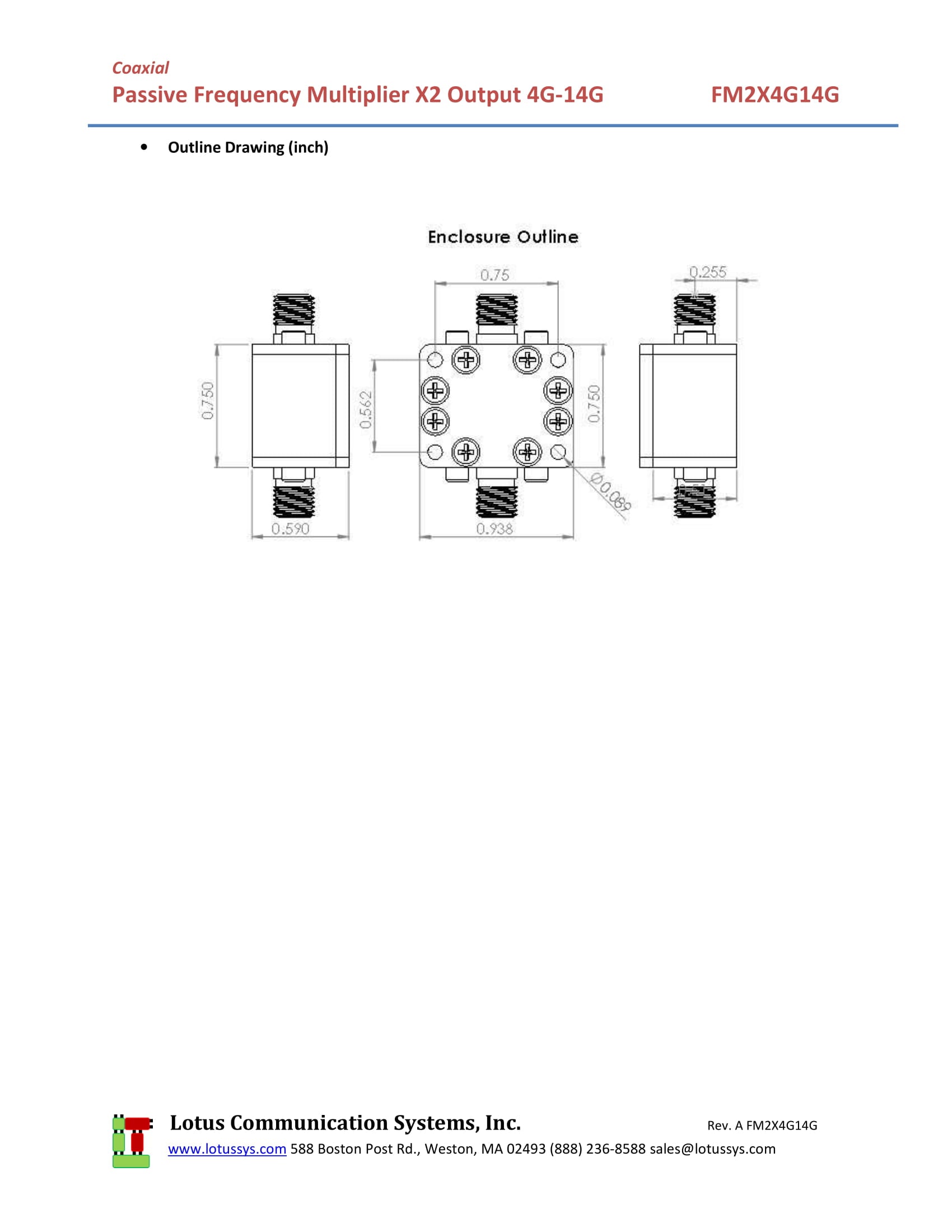

Enclosure is using RF Design Kit 6UCD2W6S1P2 with dimension 0.75"x0.9375x0.59".

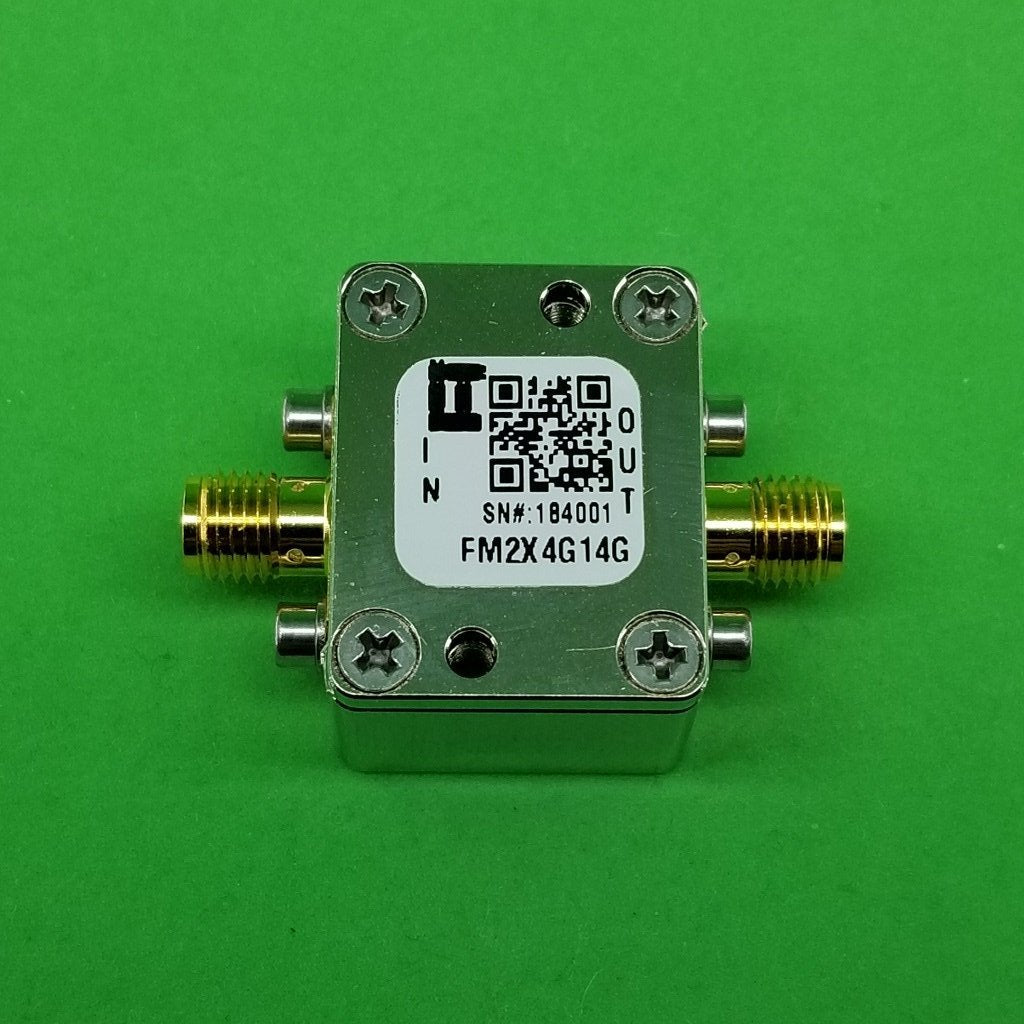

The frequency divider includes the RF Enclosure as shown in picture.

SKU#: AK20-003T.

Collections: Frequency Multipliers

Features

Multiply by M: (M=2)
Input Frequency Range: 2 GHz to 7 GHz
Output Frequency Range: 4 GHz to 14 GHz
Input Power Range: +12 to +18 dBm
Output Power: 0 dBm
Operating Temperature -40 to +85C
Low Conversion Loss, 12 dB
Good fundamental and harmonic suppression

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

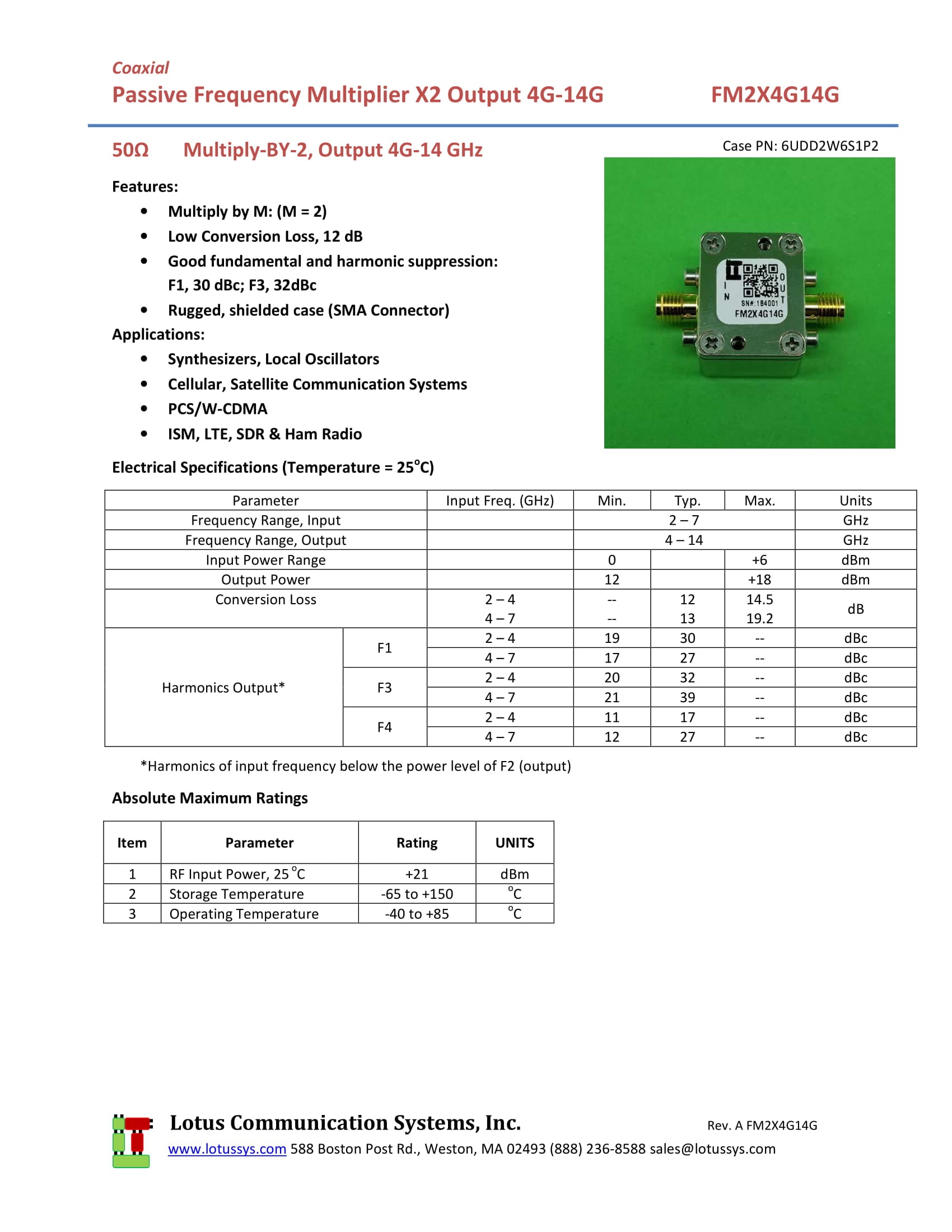

FM2X4G14G Datasheet
