FM2X6G9G

Freq. Multiplier X2 (OUTPUT 6G to 9G Hz) FM2X6G9G

2 items left

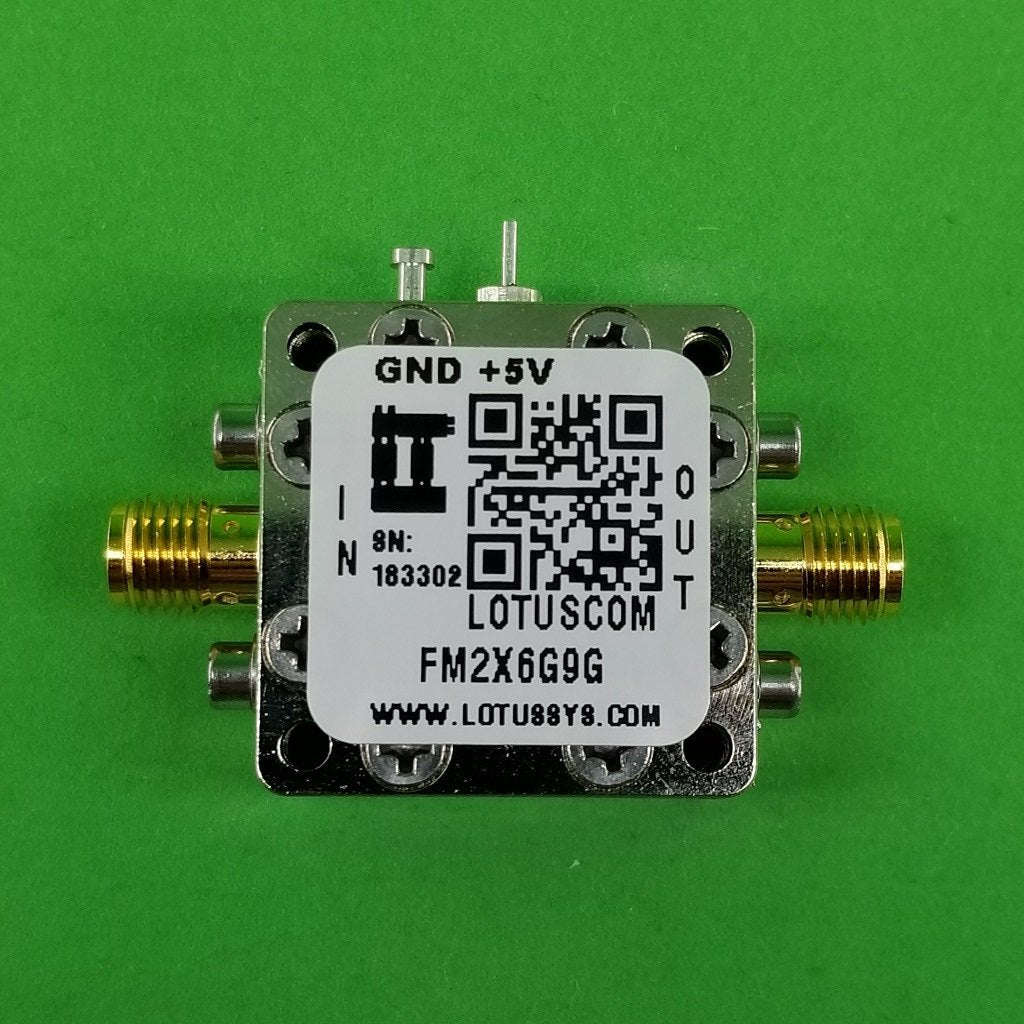

FM2X6G9G Active Frequency Multiplier X2 with input frequency range from 3 GHz to 4.5 GHz.  Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59".  The frequency divider includes the RF Enclosure as shown in picture.  SKU#: AK20_003C.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Multiply by M: (M=2)
  • Input Frequency Range: 3 GHz to 4.5 GHz
  • Output Frequency Range: 6 GHz to 9 GHz
  • Low Input Power Range: Min. -2 dBm, Max. +6 dBm
  • Operating Temperature -40 to +85C
  • High Output Power: +17 dBm
  • High Quality RO4350 PCB
  • Single Supply: +5V@90mA
  • ROHS Compliant

Applications

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

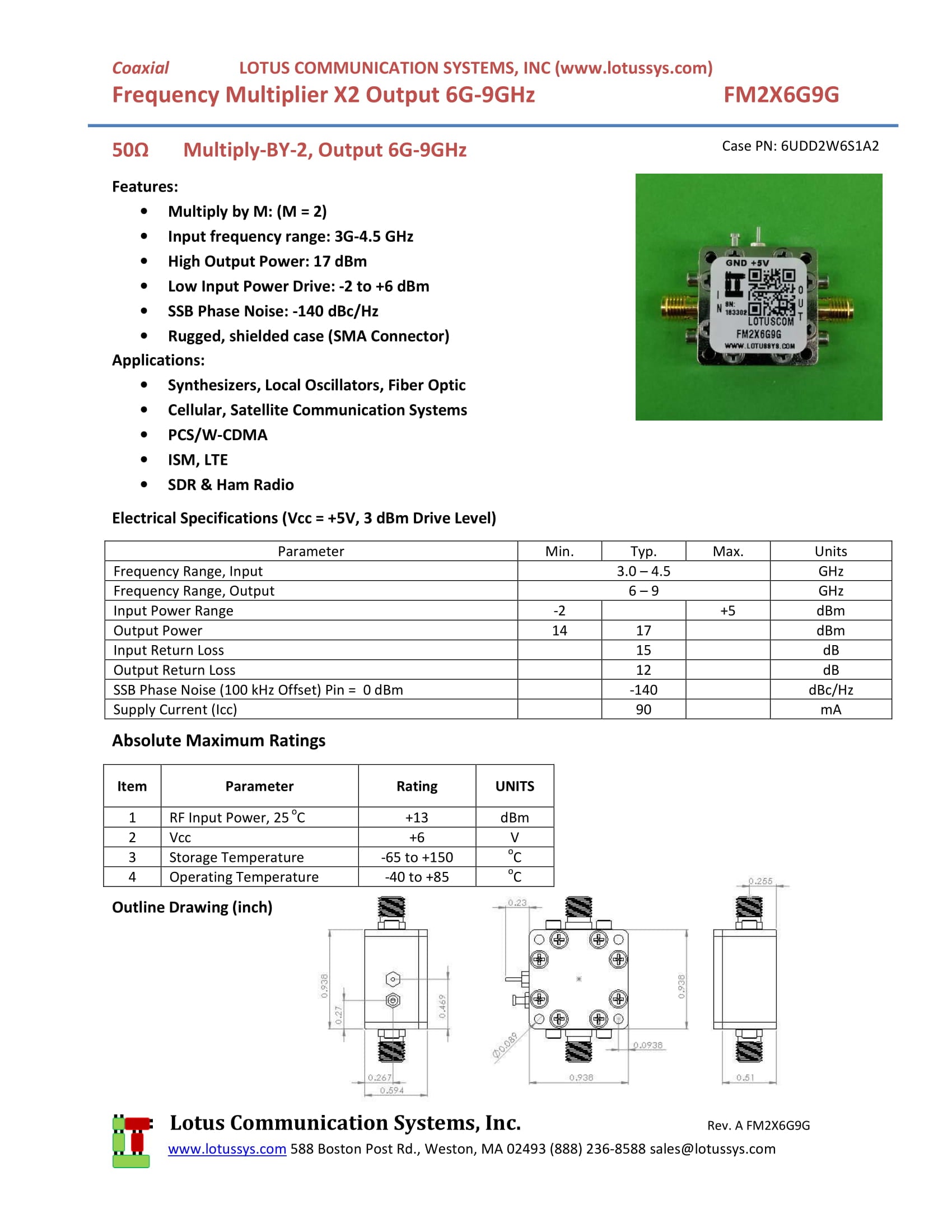

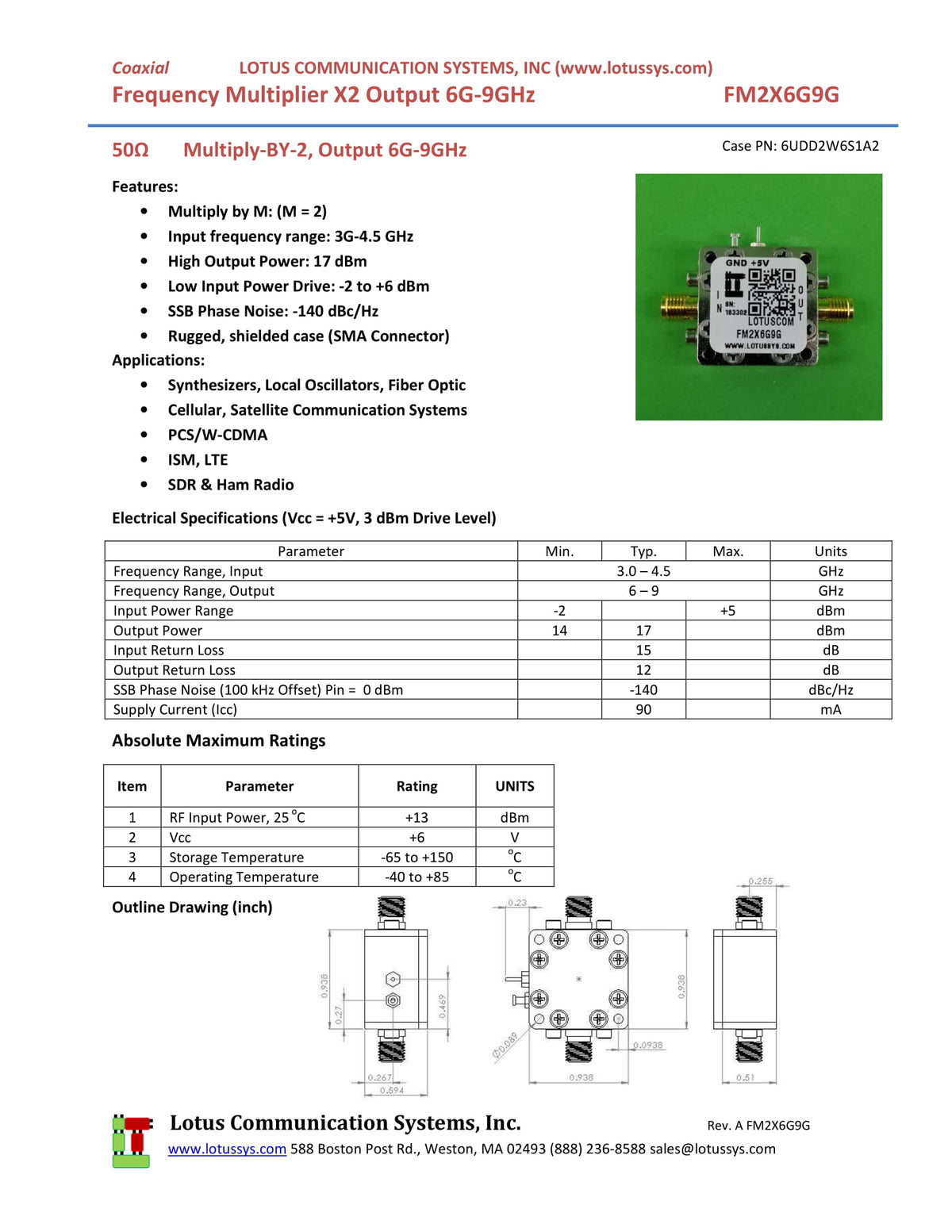

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM2X6G9G Datasheet
