Passive Freq. Multiplier X3 (OUTPUT 2.1-3.3GHz)
$ 185.90 USD

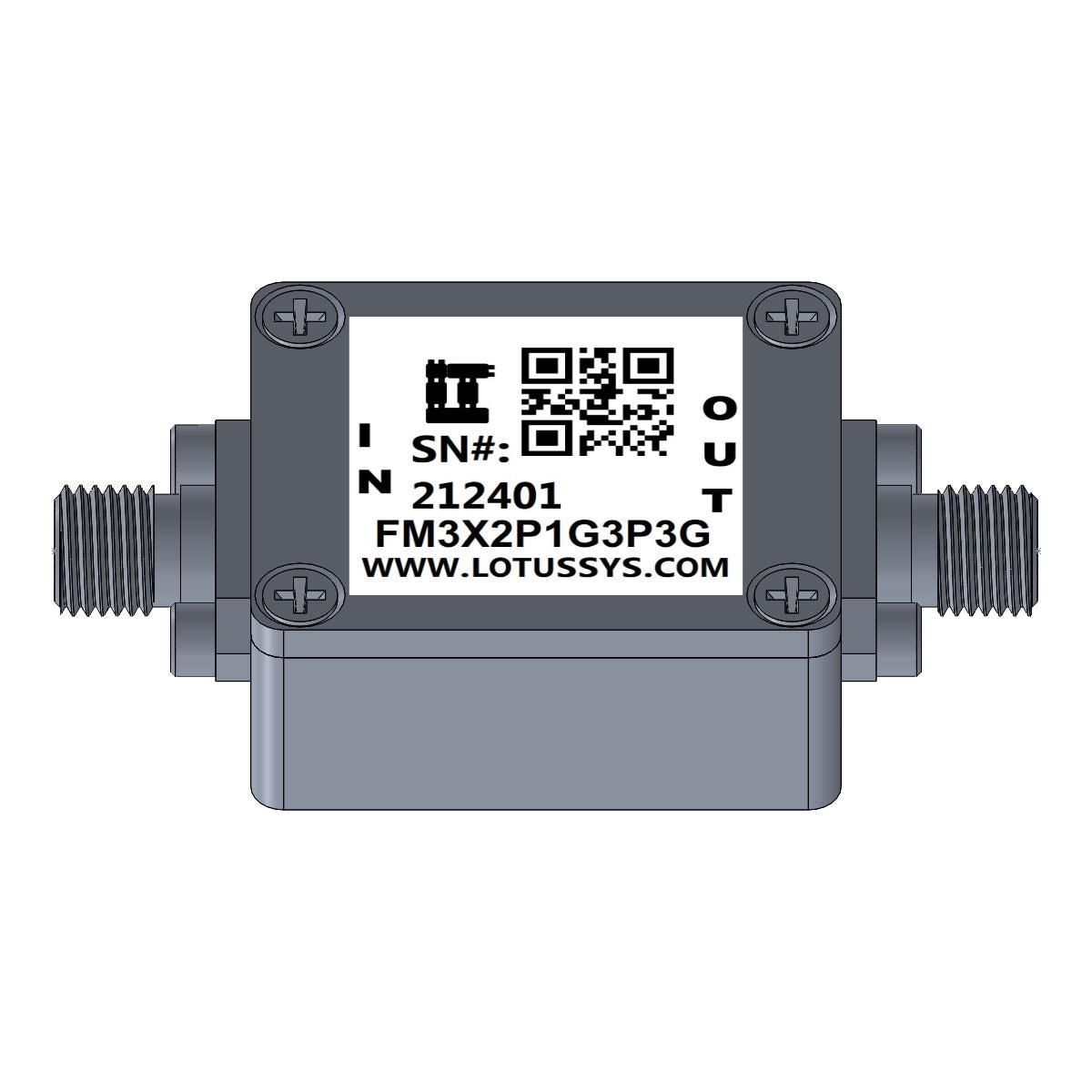

Part Number#: FM3X2P1G3P3G Frequency Multiplier X3 with input frequency range from 700-1100 MHz and output frequency range from 2100-3300 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".
Features
- Multiply by M: (M=3)
- Input Power: +10 to +15 dBm
- Input Frequency Range: 700-1100 MHz
- Output Frequency Range: 2.1-3.3GHz
- Conversion Loss: 15.6dB Typ.
- Operating Temperature -40 to +85°C
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM3X2P1G3P3G Datasheet
