  • Active Freq. Multiplier X2 (OUTPUT 20 to 25 GHz) FM2X20G25G

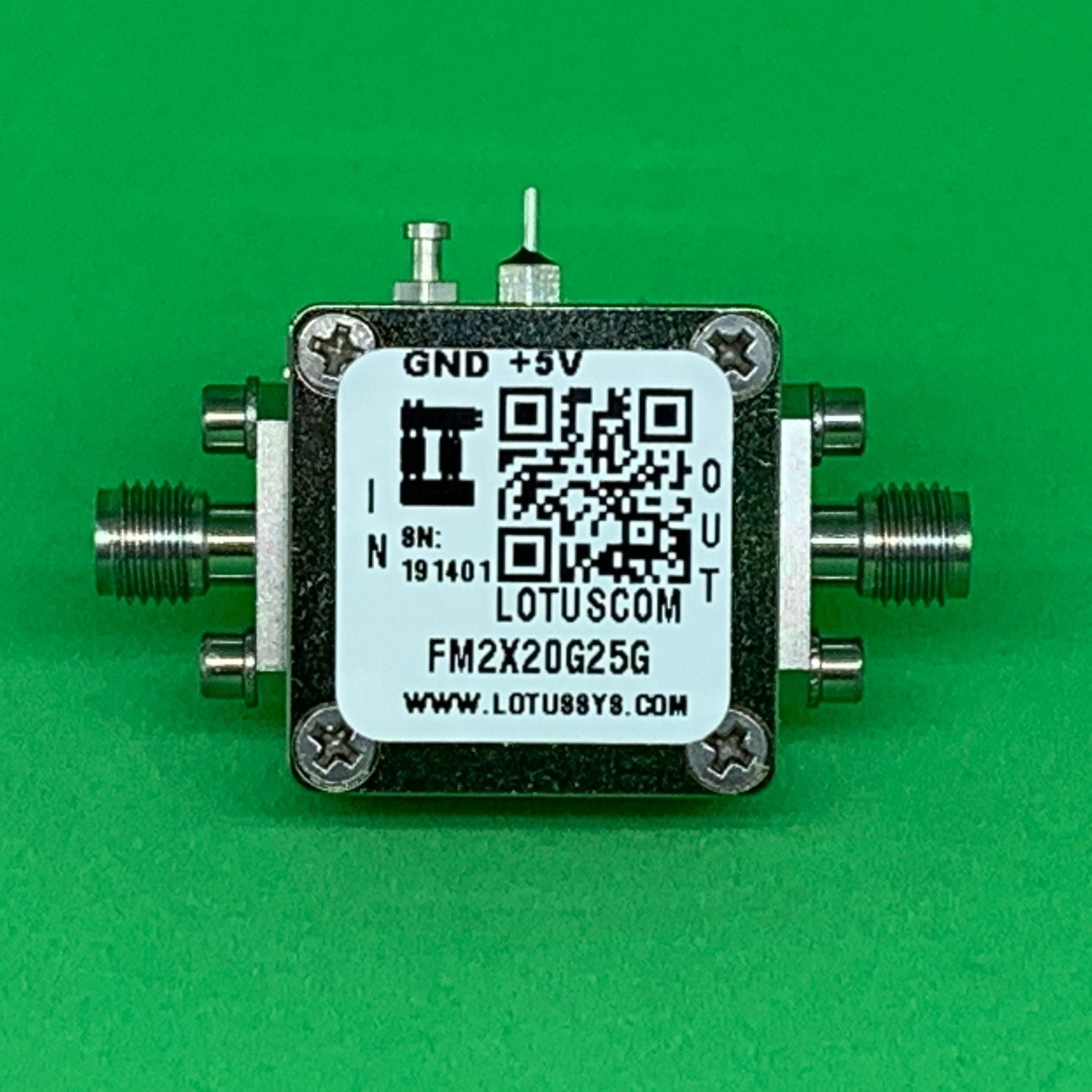

    FM2X20G25G is a x2 active broadband frequency multiplier GaAs PHEMT SMT package.  It has low input power drive requirement (-4 to +6 dBm). When driven by +0 dBm signal, the multiplier provides a +11 dBm typical output power from 20 to 25 GHz.  It integrates 2 Amplifiers (one before Multiplier and one after Multiplier).  The low additive SSB Phase Noise of -135 dBc/Hz at 100 kHz offset maintains good system noise performance.  The FM2X20G25G is ideal for use in LO multiplier chains for Point-to-Point & VSAT Radios and yielding reduced parts counts vs. traditional approaches.  The input connector and Output connector are 2.92mm Steel Connector.

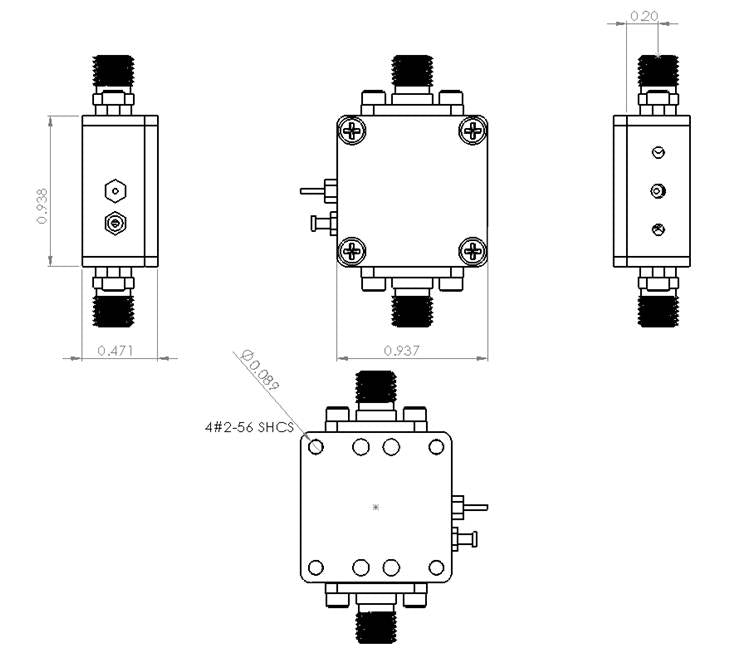

    Enclosure is using RF Design Kit 6UDD2W6O5A2 with dimension 0.9375"x0.9375x0.47".

    SKU#: AK20_004M

    1 item left

    Features

    • Multiply by M: (M=2)
    • High Output Power: +11 dBm
    • Low Input Power Drive: -4 to +6 dBm
    • Input Frequency Range: 10 GHz to 12.5 GHz
    • Output Frequency Range: 20 GHz to 25 GHz
    • Fo, 3Fo Isolation >20 dBc @ Fout = 20 GHz
    • Single Supply: +5V @48mA

    Applications

    • Synthesizer, Local Oscillators, Fiber Optic
    • Microwave Radio & Clock Generation
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM2X20G25G Datasheet
