  • Freq. Multiplier X4 (14.4G to 16.4G Hz)

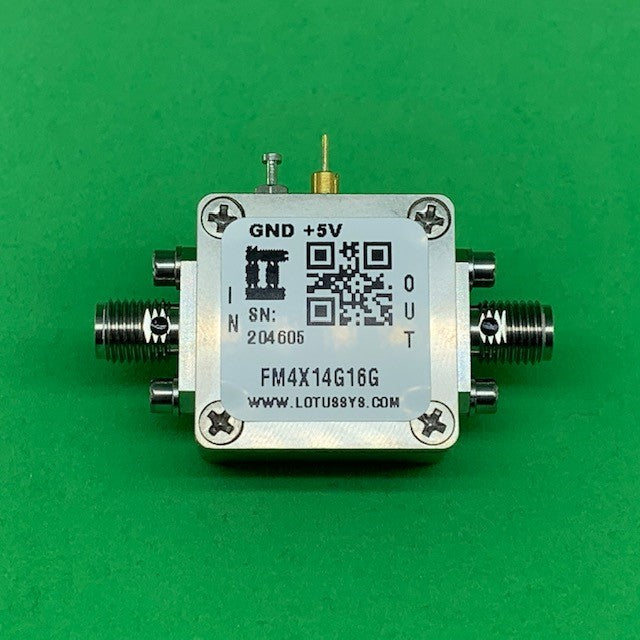

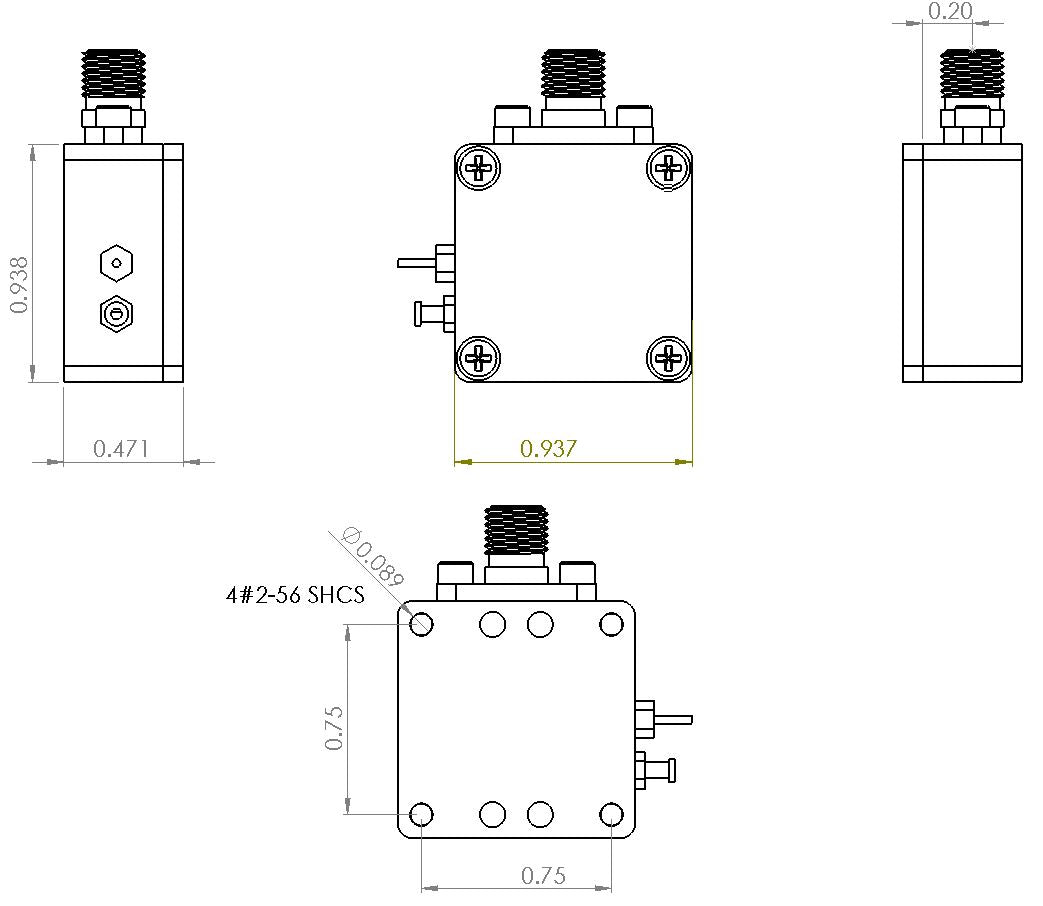

    Part Number: FM4X14G16G Frequency Multiplier X4 with input frequency range from 3.6 GHz to 4.1 GHz and output frequency range from 14.4 GHz to 16.4 GHz.  Enclosure is using RF Design Kit (also sold in our web site) 6UDD2W6S1A2 with dimension 0.9375"x0.9375x0.59".  The frequency divider includes the RF Enclosure as shown in picture.  SKU#: AK20-001J.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    6 items left


    • Multiply by M: (M=4)
    • Input Frequency Range: 3.6 GHz to 4.1 GHz
    • Output Frequency Range: 14.4 GHz to 16.4 GHz
    • Input Power Range: Min. -15 dBm, Max. +5 dBm
    • Output Power: 0 dBm
    • Operating Temperature -40 to +85C
    • SSB Phase Noise: -140 dBc/Hz


    • Synthesizer, Local Oscillators
    • Microwave Radio
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM4X14G16G Datasheet
