FM2X5G10G

Freq. Multiplier X2 (OUTPUT 5G to 10G Hz) FM2X5G10G

12 items left

FM2X5G10G Frequency Multiplier X2 with input frequency range from 2.5 GHz to 5 GHz.

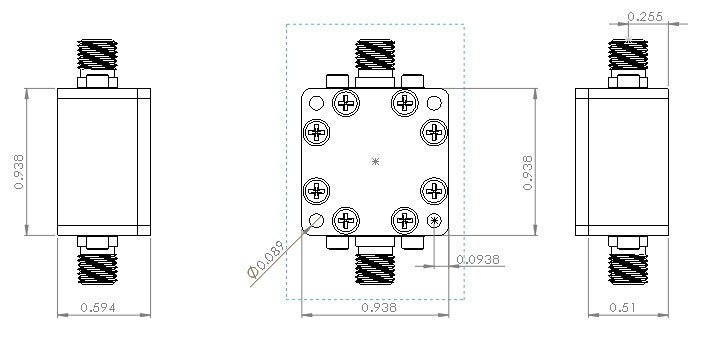

Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59".

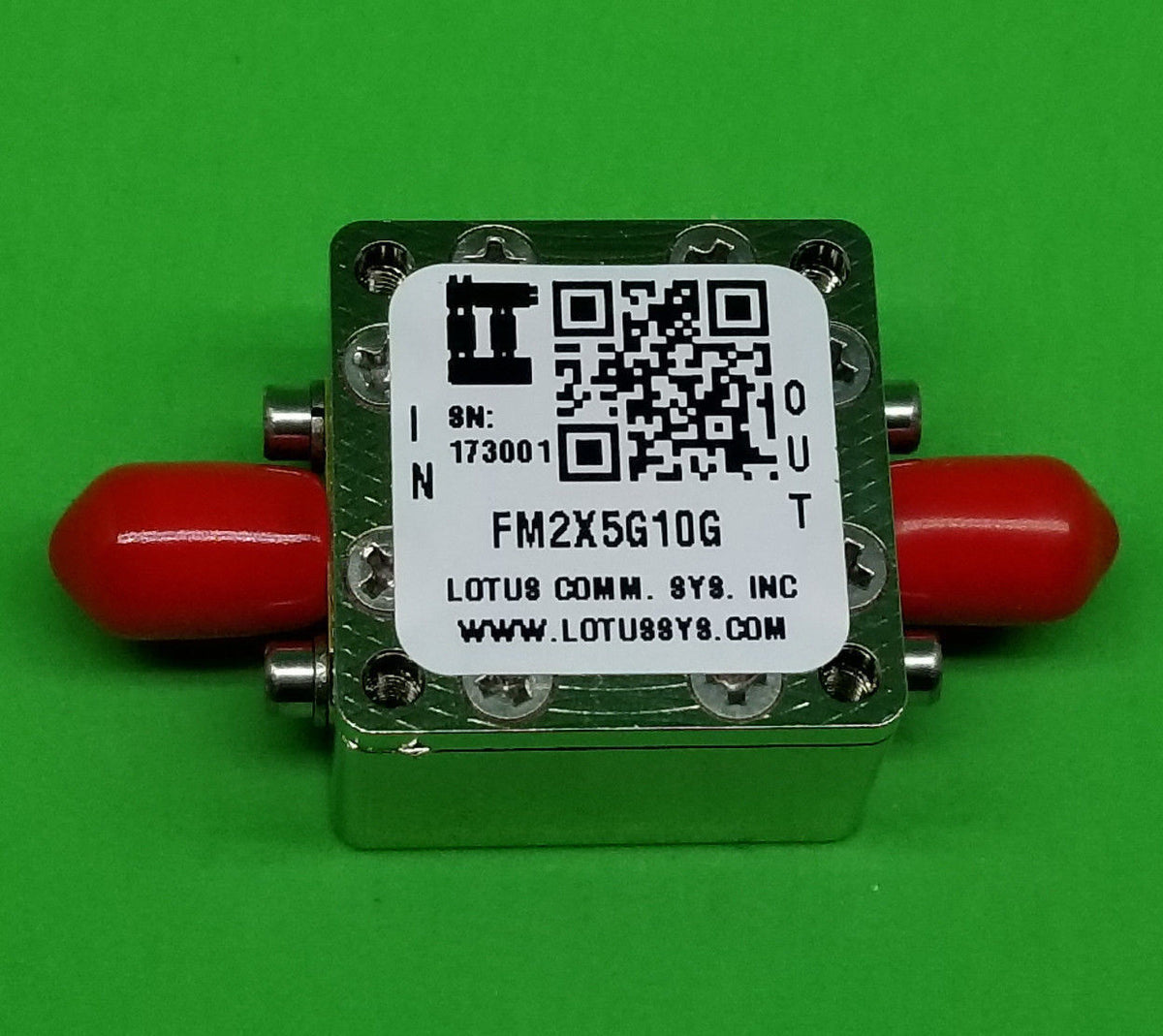

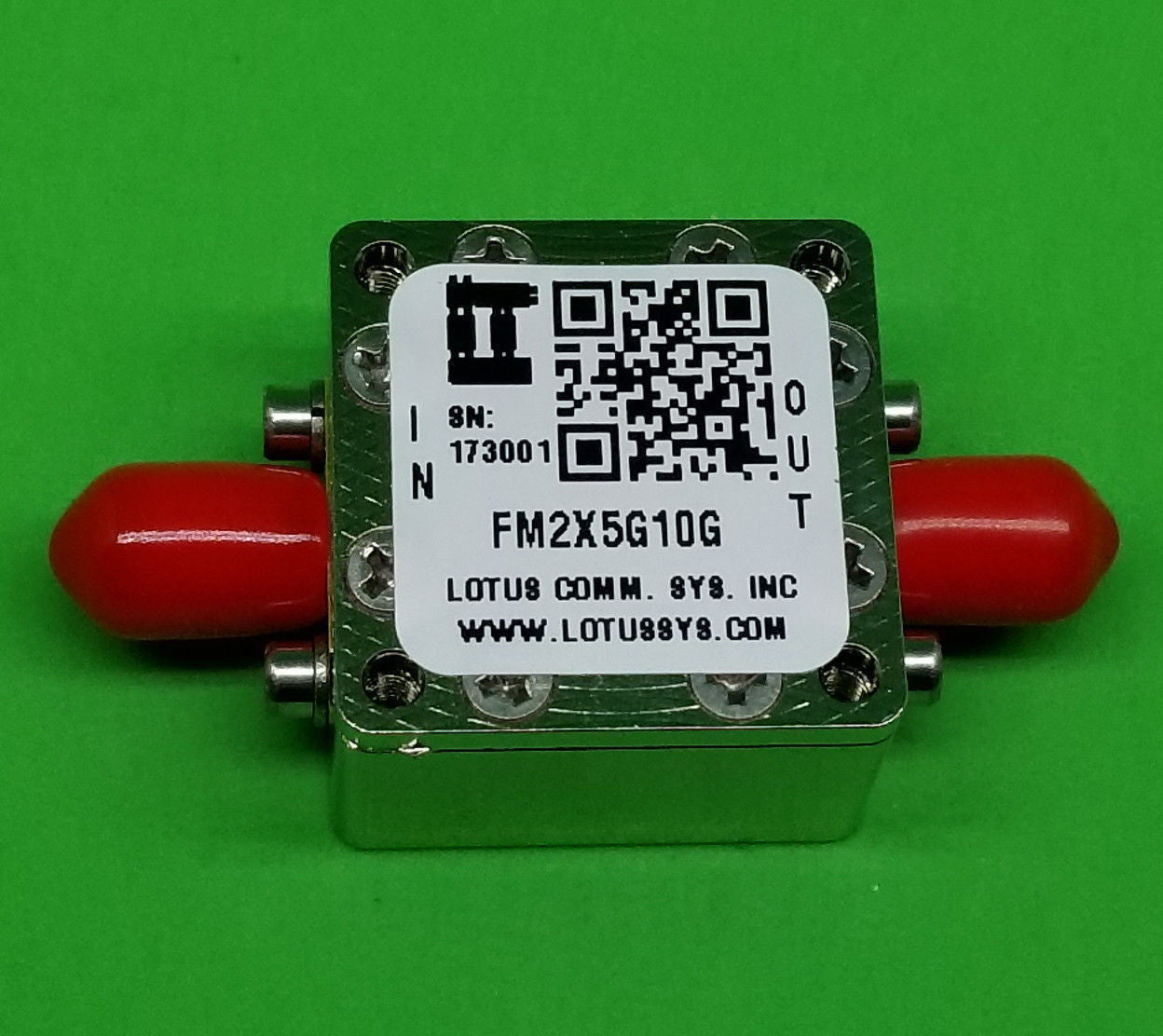

The frequency divider includes the RF Enclosure as shown in picture.

SKU#: AK20_001K


Features

  • Multiply by M: (M=2)
  • Input Frequency Range: 2.5 GHz to 5 GHz
  • Input Power Range: Min. +13 dBm, Max. +17 dBm
  • Operating Temperature -40 to +85C
  • High Quality Stainless Steel SMA Female Connector (DC-24GHz)

Applications

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

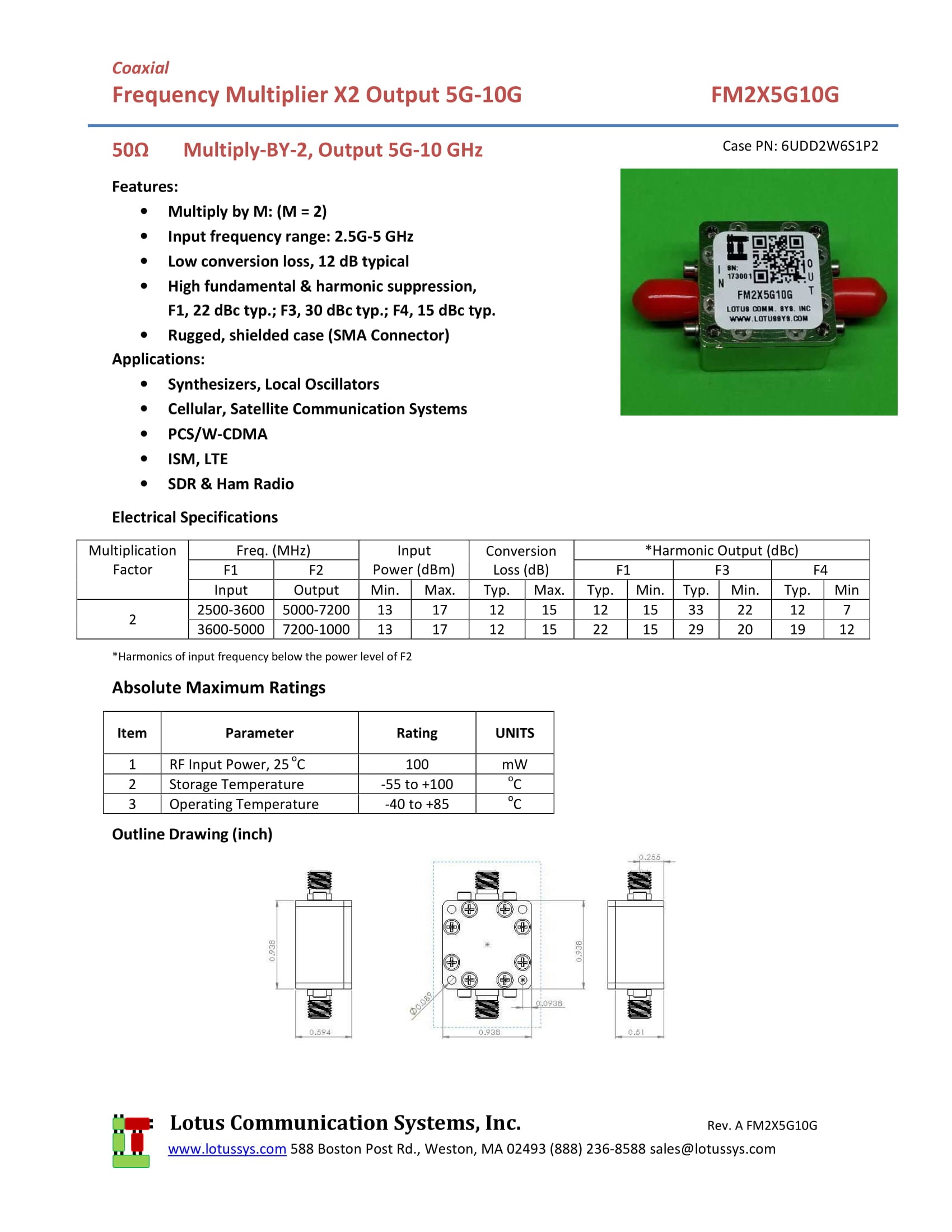

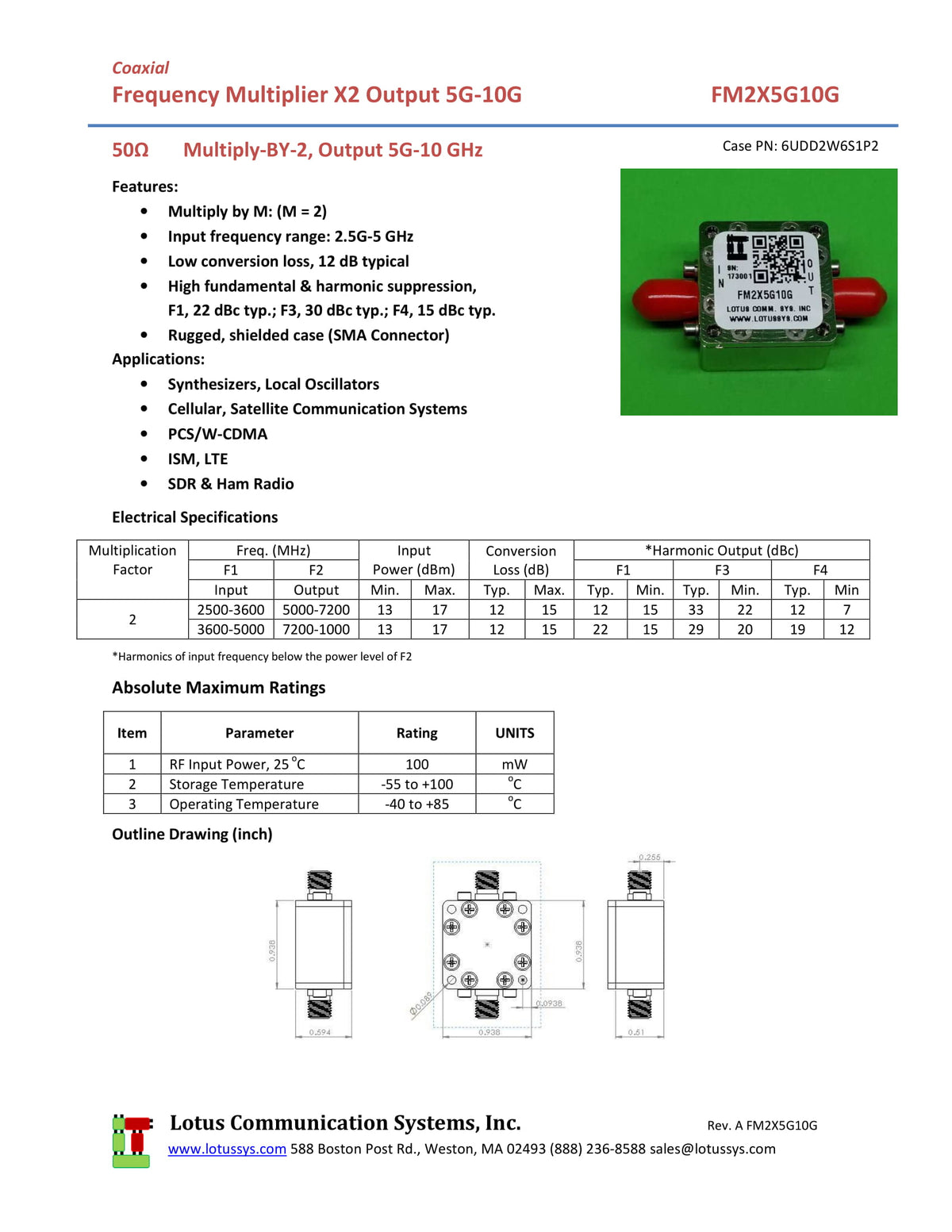

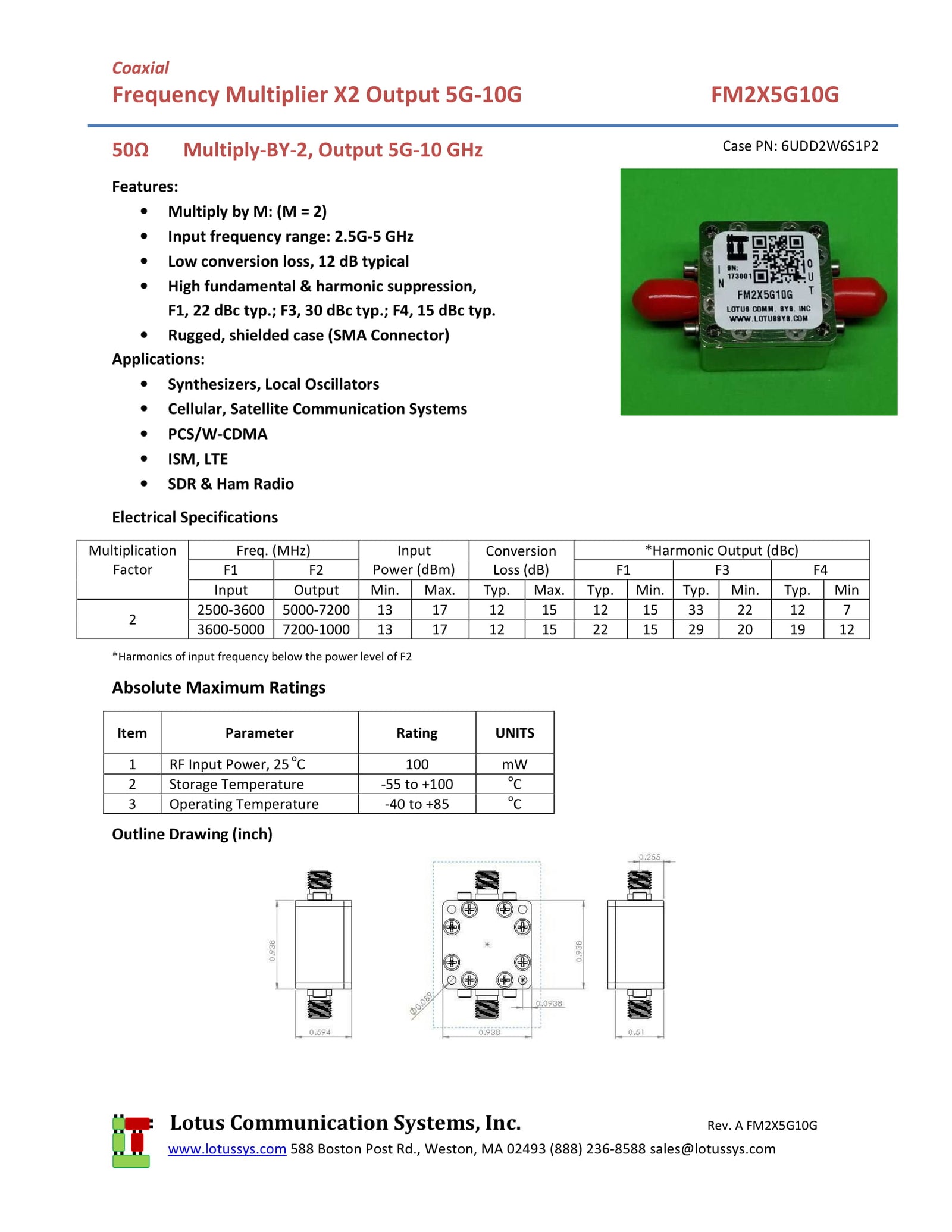

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM2X5G10G Datasheet
