Freq. Multiplier X2 (OUTPUT 5G to 10G Hz) FM2X5G10G

12 items left

FM2X5G10G Frequency Multiplier X2 with input frequency range from 2.5 GHz to 5 GHz.

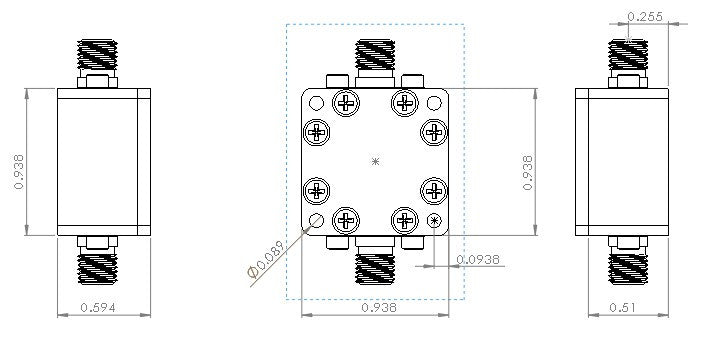

Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59".

Features:

  • Input Frequency Range: 2.5 GHz to 5 GHz
  • Multiply by M: (M=2)
  • Operating Temperature -40 to +85C
  • Input Power Range: Min. +13 dBm, Max. +17 dBm
  • High Quality Stainless Steel SMA Female Connector (DC-24GHz)

Applications:

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

The frequency divider includes the RF Enclosure as shown in picture.

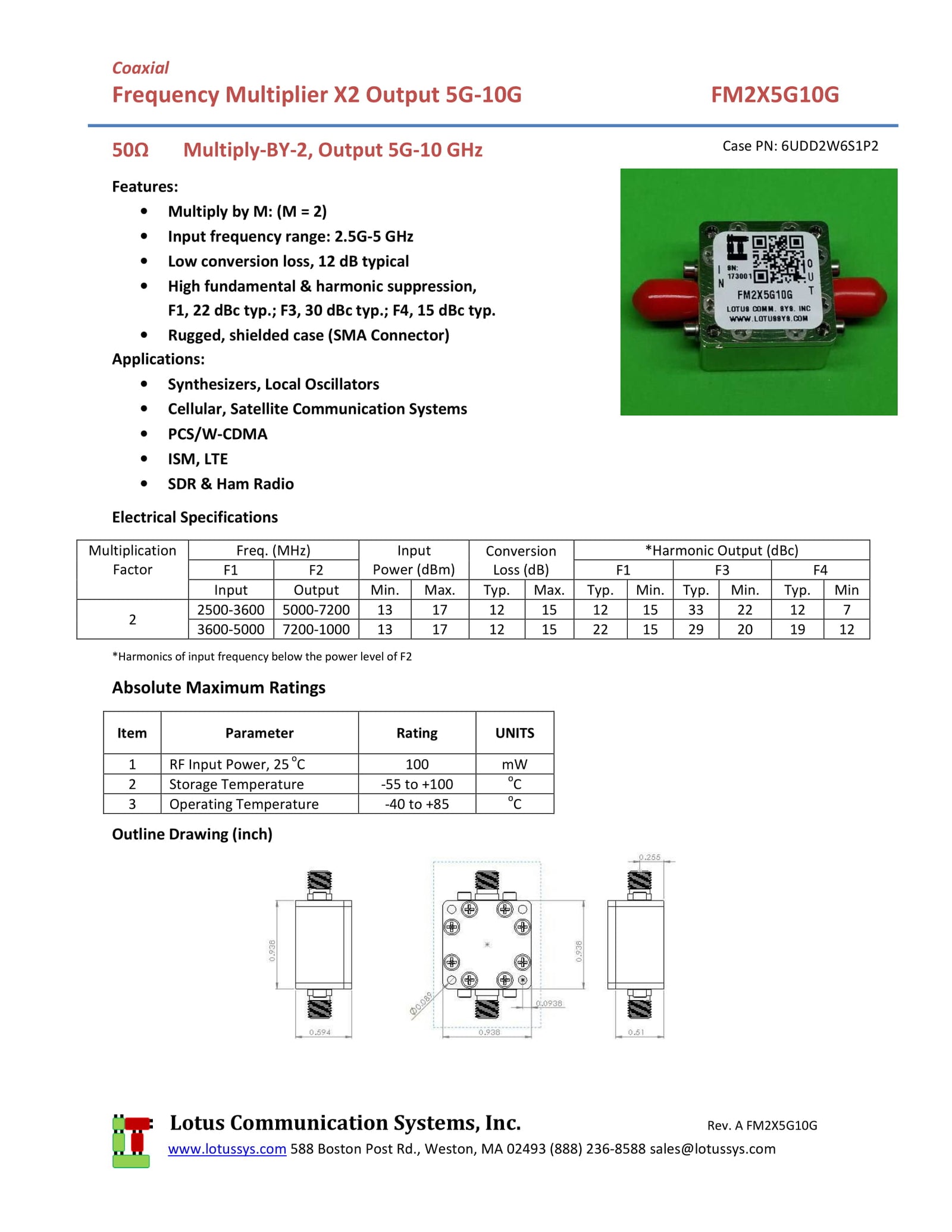

Click https://cdn.shopify.com/s/files/1/1592/7469/files/FM2X5G10G.pdf to see detailed specification.

Proudly MADE IN USA. SKU#: AK20_001K
