Freq. Multiplier X2 (OUTPUT 10G to 20G Hz) FM2X10G20G

Freq. Multiplier X2 (OUTPUT 10G to 20G Hz) FM2X10G20G

Freq. Multiplier X2 (OUTPUT 10G to 20G Hz) FM2X10G20G

Freq. Multiplier X2 (OUTPUT 10G to 20G Hz) FM2X10G20G

$ 198.00 USD

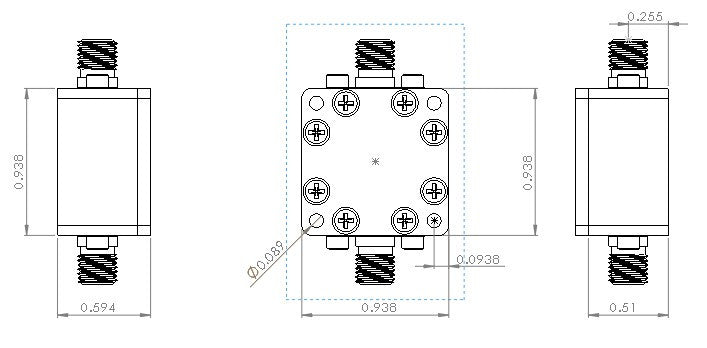

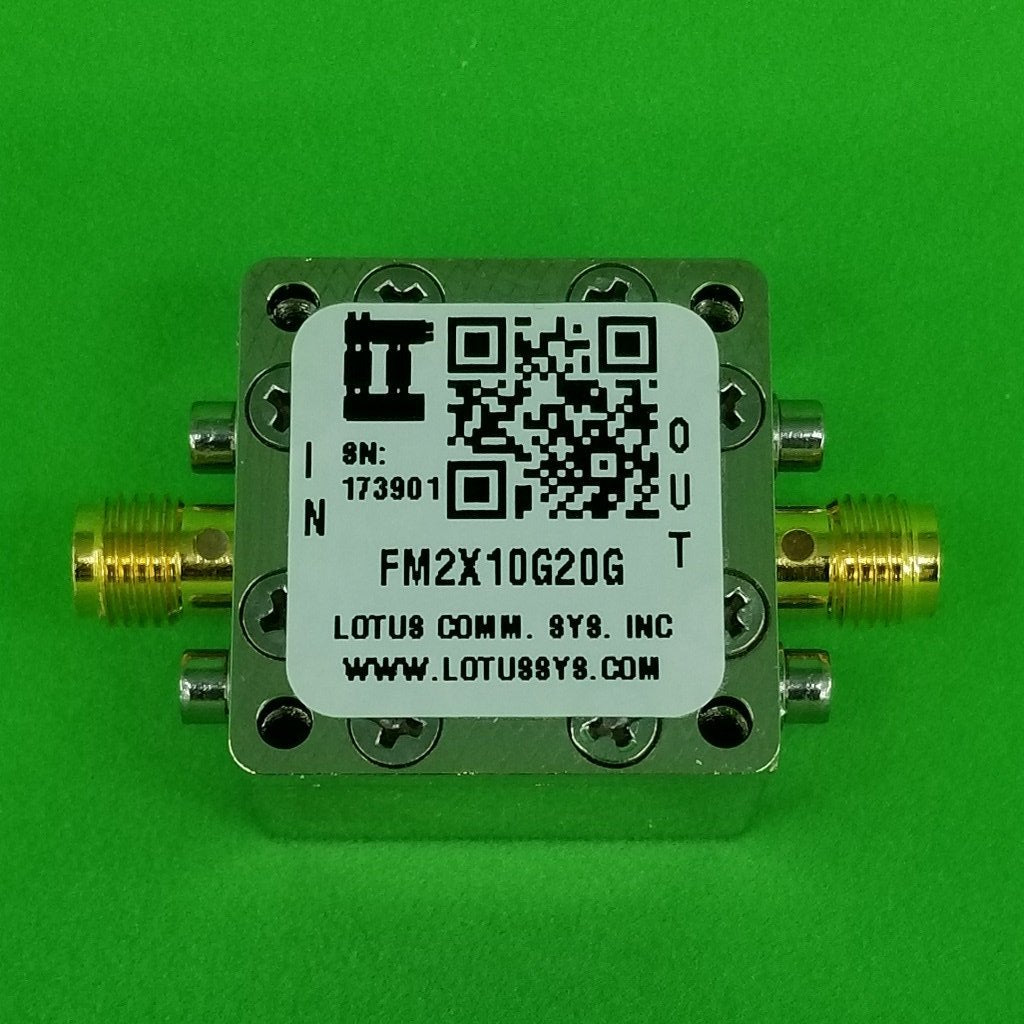

Part Number: FM2X10G20G Frequency Multiplier X2 with input frequency range from 5 GHz to 10 GHz. Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59". The frequency divider includes the RF Enclosure as shown in picture. SKU#: AK20-001K.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Frequency Multipliers

Features

Multiply by M: (M=2)
Input Frequency Range: 5 GHz to 10 GHz
Input Power Range: Min. +10 dBm, Max. +16 dBm
Operating Temperature -40 to +85C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

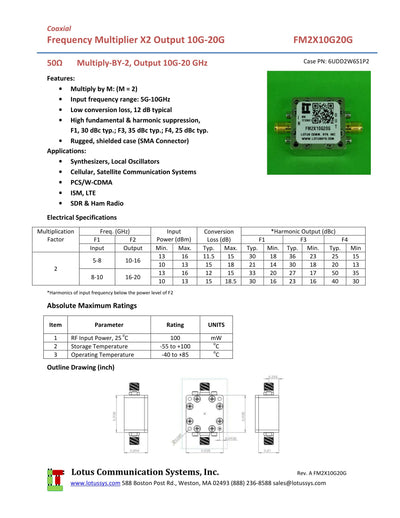

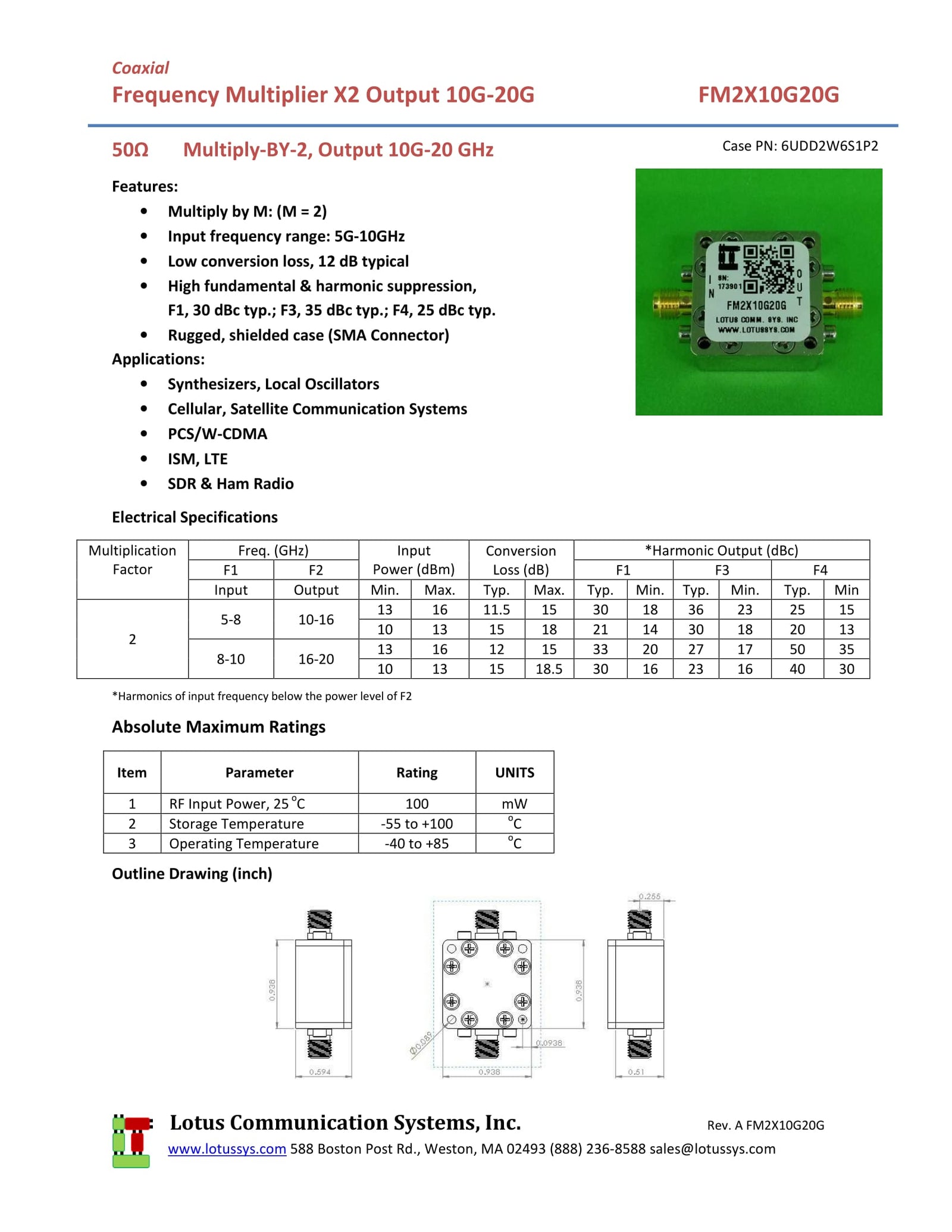

Resources (PDF Datasheet)

FM2X10G20G Datasheet
