Passive Freq. Multiplier X3 (OUTPUT 1.2-2.1GHz)

Passive Freq. Multiplier X3 (OUTPUT 1.2-2.1GHz)

Passive Freq. Multiplier X3 (OUTPUT 1.2-2.1GHz)

$ 185.90 USD

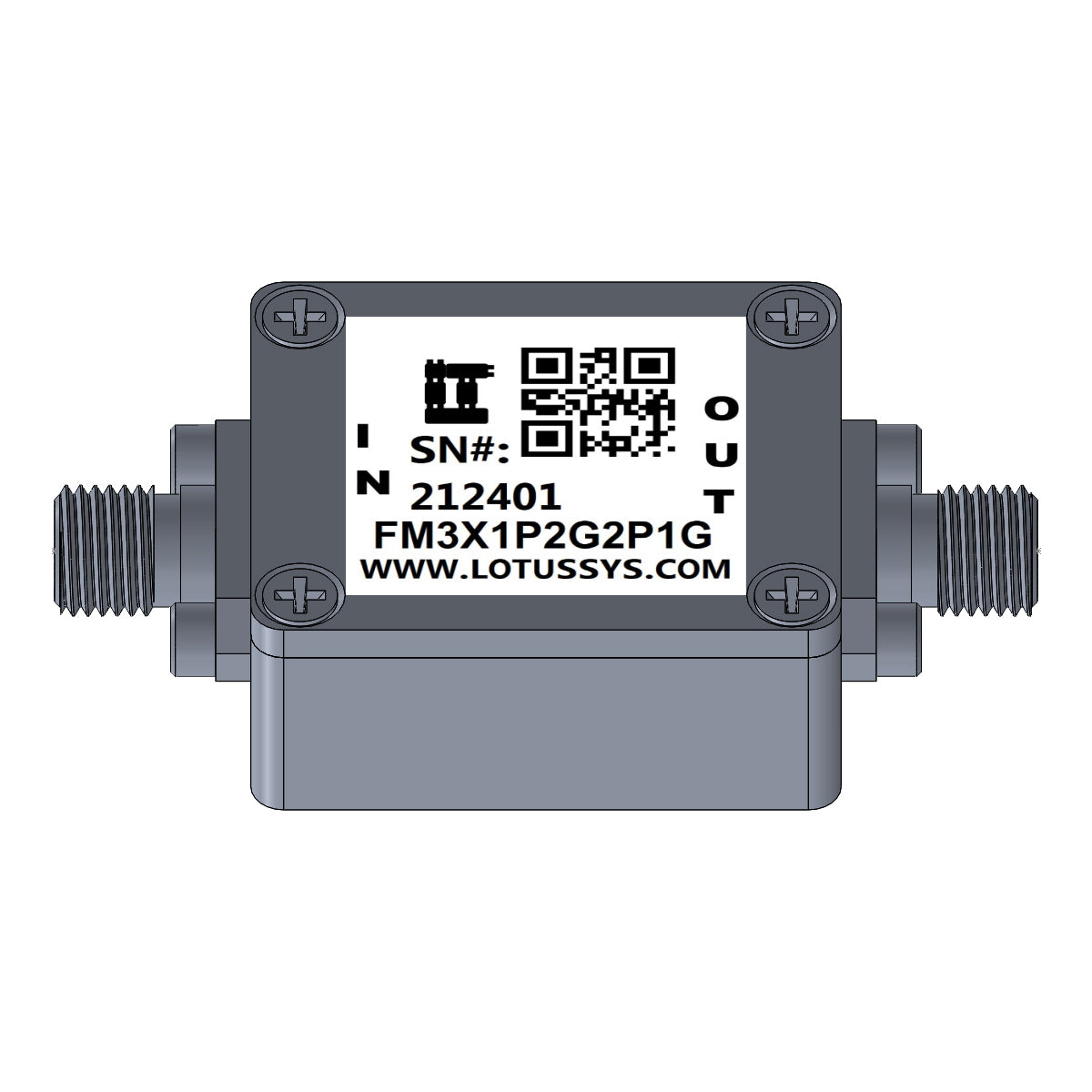

Part Number#: FM3X1P2G2P1G Frequency Multiplier X3 with input frequency range from 400-700 MHz and output frequency range from 1200-2100 MHz.
Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".

Collections: Frequency Multipliers

Features

Multiply by M: (M=3)
Input Power: +12 to +17 dBm
Input Frequency Range: 400-700 MHz
Output Frequency Range: 1.2G-2.1GHz
Conversion Loss: 14dB Typ.
Operating Temperature -40 to +85°C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

Resources

FM3X1P2G2P1G Datasheet
