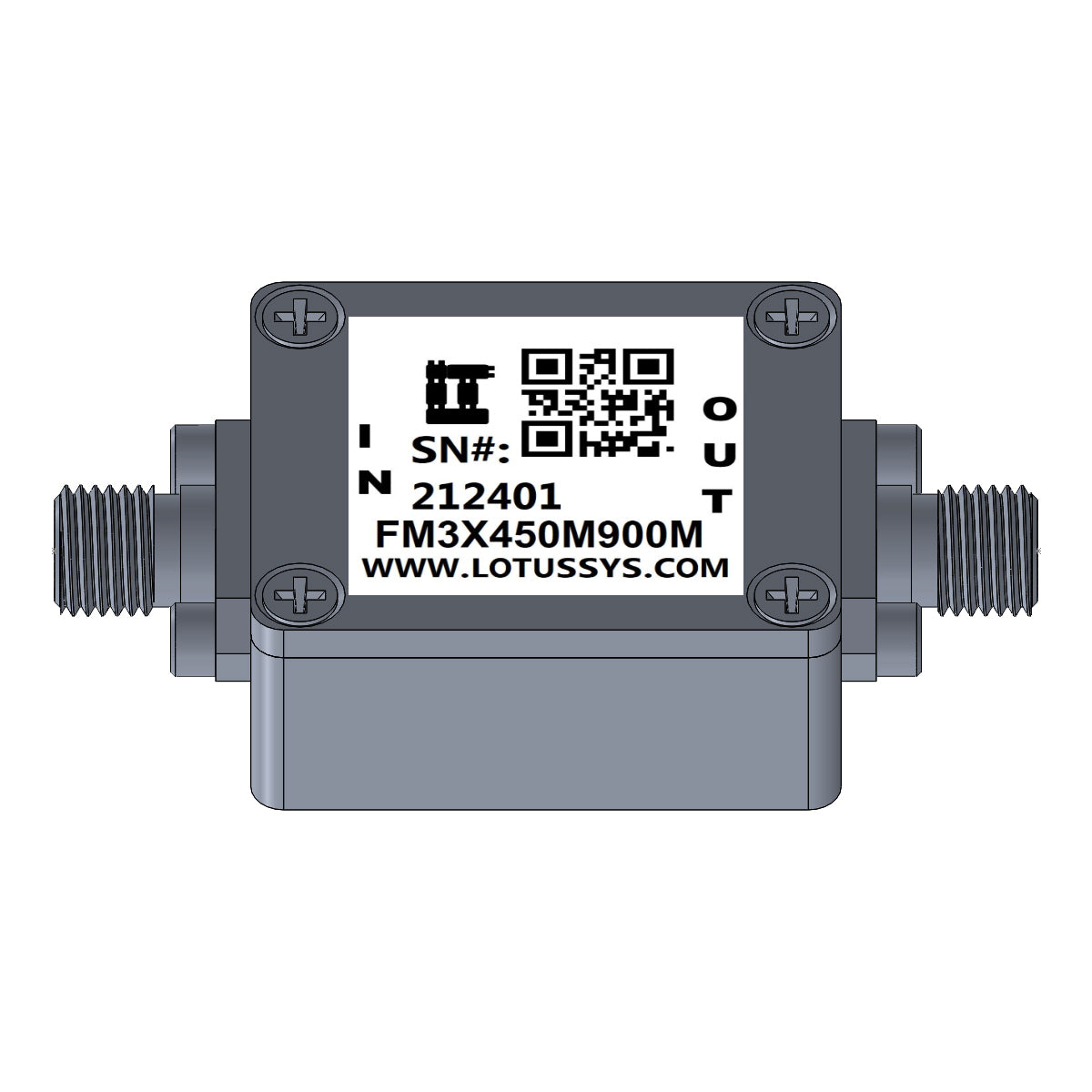

Passive Freq. Multiplier X3 (OUTPUT 450-900 MHz)
$ 226.00 USD - $ 316.00 USD
Part Number#: FM3X450M900M Frequency Multiplier X3 with input frequency range from 150-300 MHz and output frequency range from 450-900 MHz.
Features
- Multiply by M: (M=3)
- Input Power: +12 to +17 dBm
- Input Frequency Range: 150-300 MHz
- Output Frequency Range: 450-900 MHz
- Conversion Loss: 14dB Typ.
- Operating Temperature -40 to +85°C
- EMI Shield (& Weatherproof) Option Available PN#: FM3X450M900MW
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM3X450M900M Datasheet
