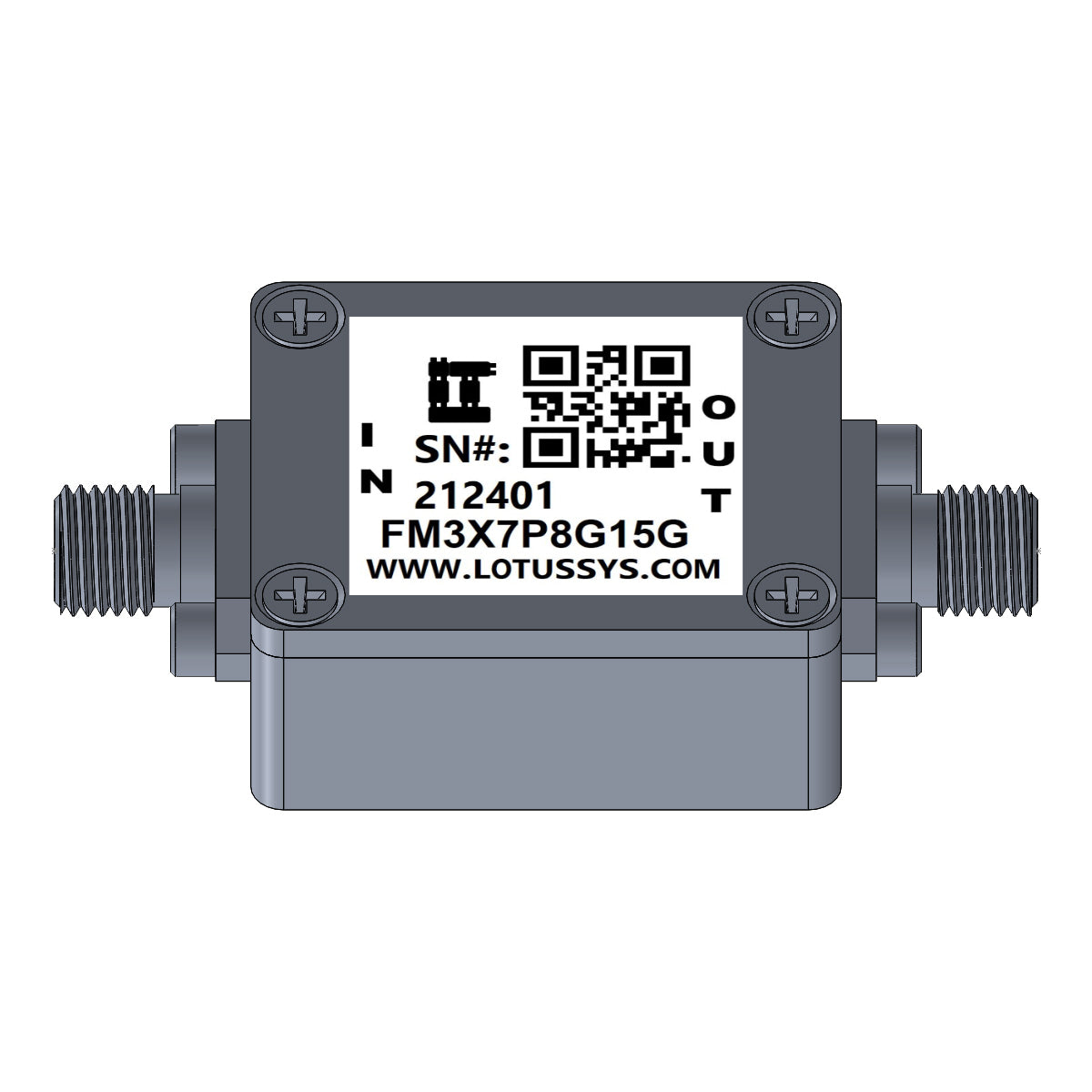

Passive Freq. Multiplier X3 (OUTPUT 7.8-15 GHz)

Part Number#: FM3X7P8G15G Frequency Multiplier X3 with input frequency range from 2.6 GHz to 7.8 GHz and output frequency range from 7.8 GHz to 15 GHz.

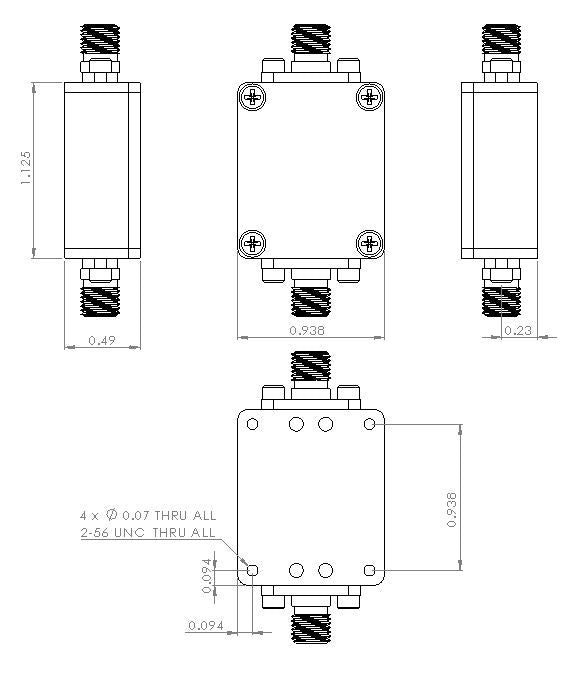

Enclosure is using RF Design Kit 6UED2W6H41SMAA2 with dimension 1.125"x0.9375x0.48".



Features

  • Multiply by M: (M=3)
  • Input Power: +7 to +11 dBm
  • Input Frequency Range: 2.6 GHz to 5 GHz
  • Output Frequency Range: 7.8 GHz to 15 GHz
  • Conversion Loss: 17dB Typ.
  • Operating Temperature -40 to +85°C

Applications

  • Synthesizer, Local Oscillators
  • Microwave Radio
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png FM3X7P8G15GDatasheet
