FM2X18G29G

Active Freq. Multiplier X2 (OUTPUT 18 to 29 GHz) FM2X18G29G

1 item left

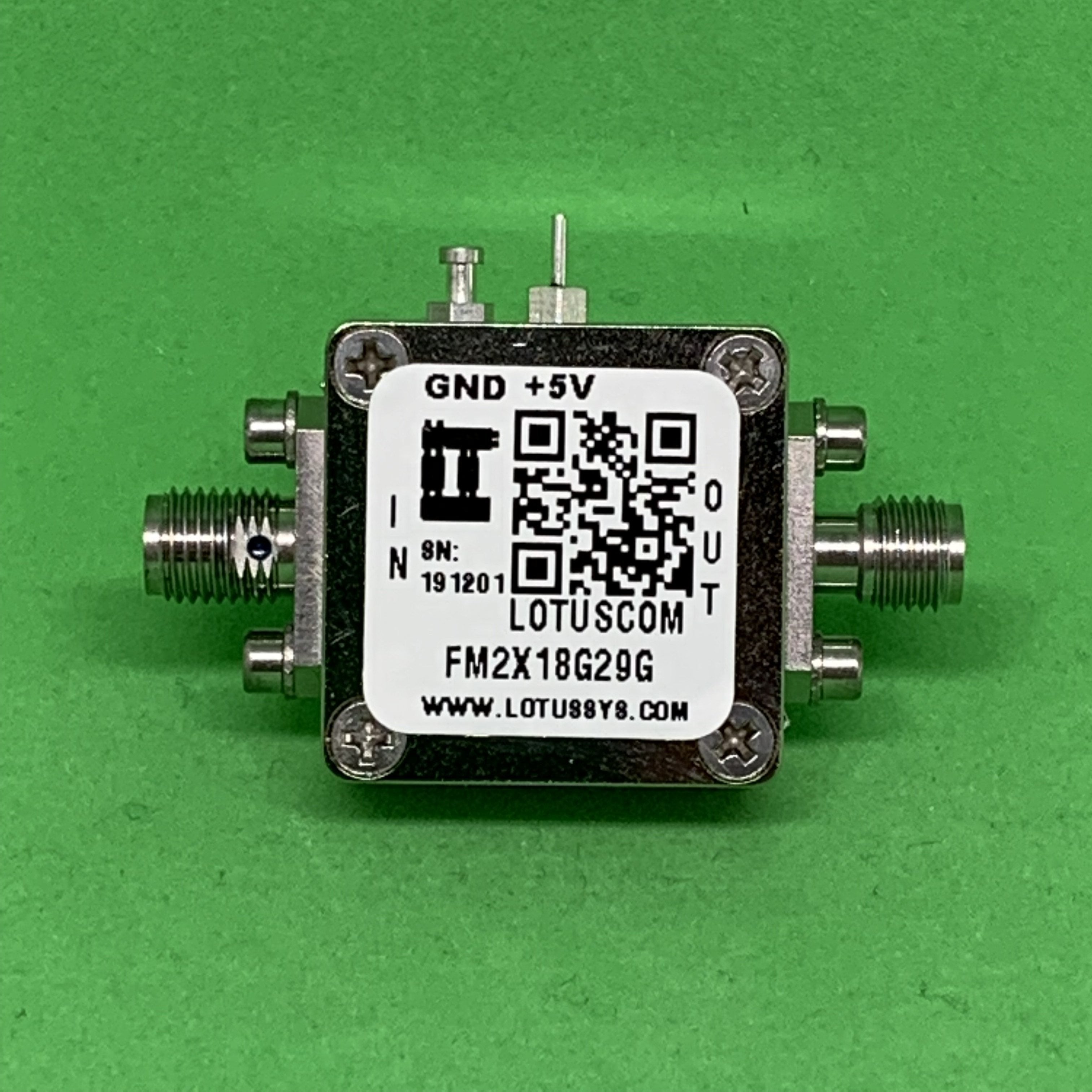

FM2X18G29G is a x2 active broadband frequency multiplier GaAs pHEMT SMT package.  It has low input power drive requirement (0 to +6 dBm). When driven by +3 dBm signal, the multiplier provides a +15 dBm typical output power from 18 to 29 GHz.  It integrates 2 Amplifiers (one before Multiplier and one after Multiplier).  The low additive SSB Phase Noise of -132 dBc/Hz at 100 kHz offset maintains good system noise performance.  The FM2X18G29G is ideal for use in LO multiplier chains for Point-to-Point & VSAT Radios and yielding reduced parts counts vs. traditional approaches.  The input connector is SMA Steel Connector and Output connector is 2.92mm Steel Connector.

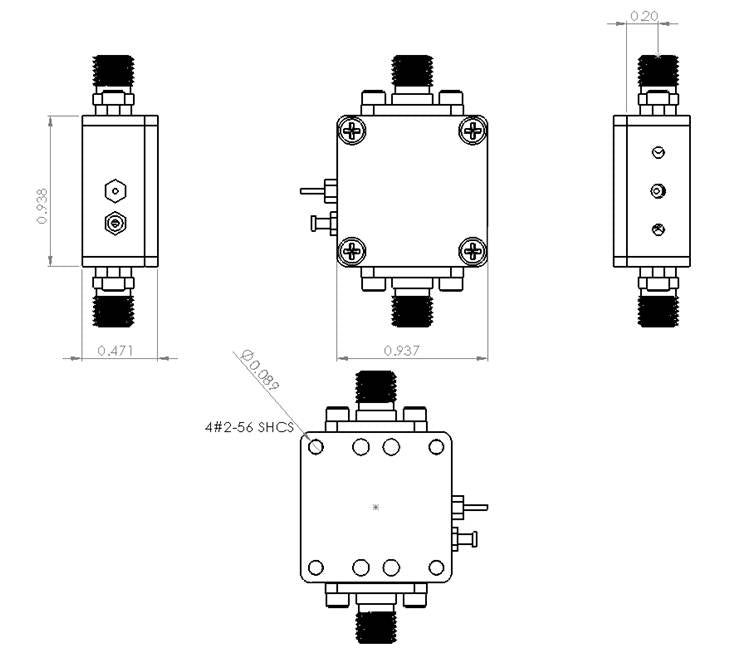

Enclosure is using RF Design Kit 6UDD2W6O5A2 with dimension 0.9375"x0.9375x0.47".

SKU#: AK20_004I


Features

  • Multiply by M: (M=2)
  • High Output Power: +15 dBm
  • Low Input Power Drive: 0 to +6 dBm
  • Input Frequency Range: 9 GHz to 14.5 GHz
  • Output Frequency Range: 18 GHz to 29 GHz
  • Fo Isolation >20 dBc @ Fout = 24 GHz
  • Single Supply: +5V @82mA

Applications

  • Synthesizer, Local Oscillators, Fiber Optic
  • Microwave Radio & Clock Generation
  • Test Instrumentation
  • Satellite Communication/Software Defined Radio/Ham Radio
