Passive Freq. Multiplier x5 (OUTPUT 5-8GHz) FM5X5G8G
$ 198.00 USD - $ 288.00 USD
Part Number#: FM5X5G8G Frequency Multiplier x5 with input frequency range from 1000-1600 MHz and output frequency range from 5-8GHz.

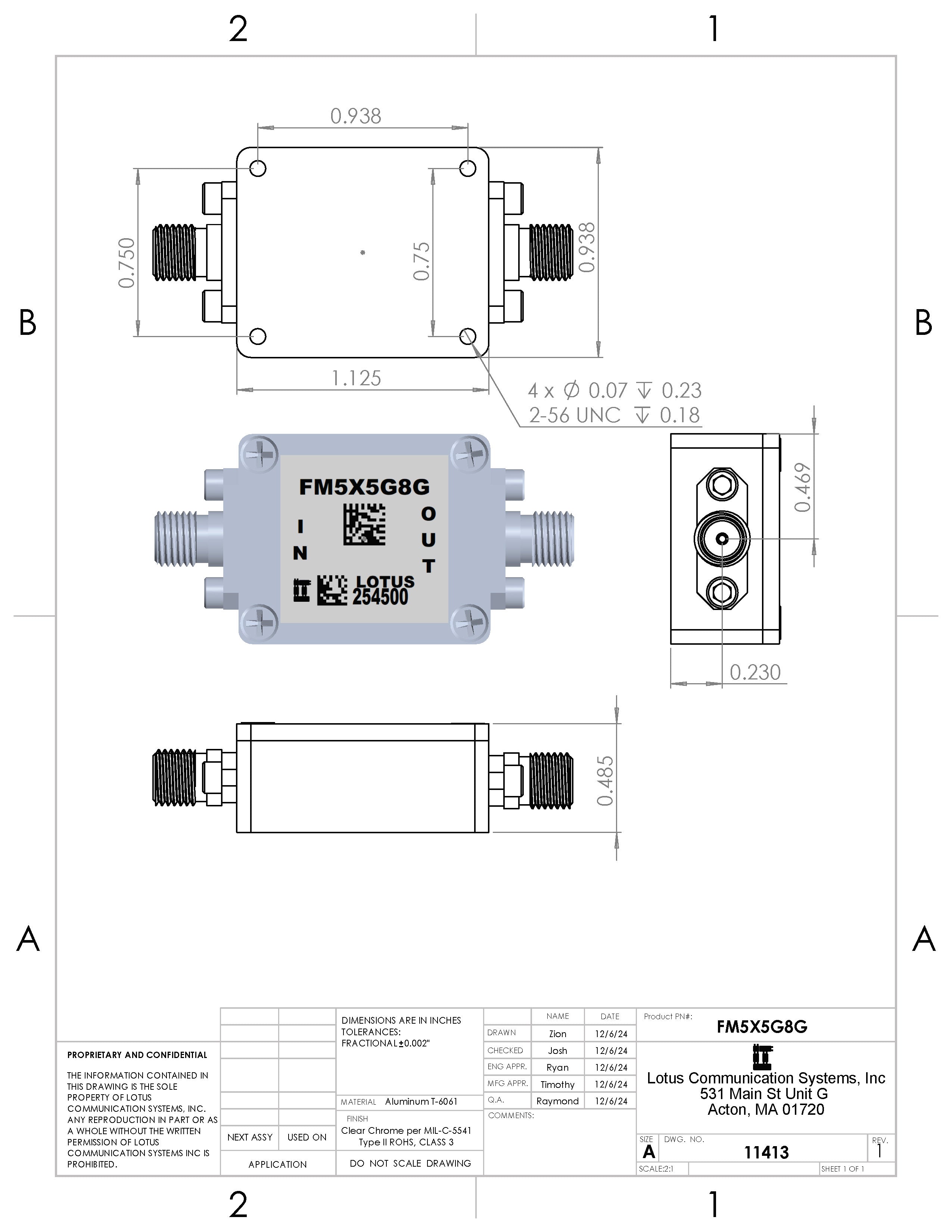

Enclosure is using RF Design Kit 6ED2W6H41SP2W with dimension 1.125"x0.9375x0.49".
Features
- Multiply by M: (M=5)
- Input Power: 9 dBm
- Input Frequency Range: 1000-1600 MHz
- Output Frequency Range: 5-8 GHz
- Low Conversion Loss: 28 dB Typ.
- Operating Temperature -40 to +85°C

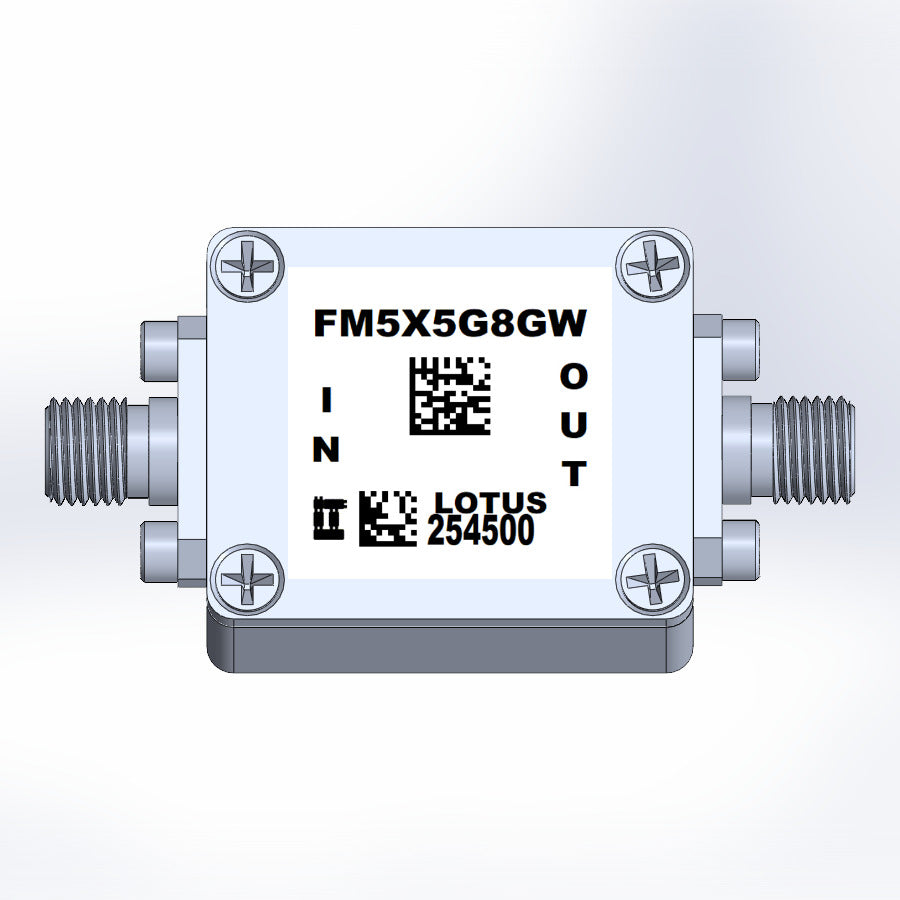

- EMI Shield & Weatherproof available (PN#: FM5X5G8GW)
Applications
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio
Resources
FM5X5G8G Datasheet
