FM2X1P2G4P4G Frequency Multiplier X2 with input frequency range from 0.6 GHz to 1.2 GHz.

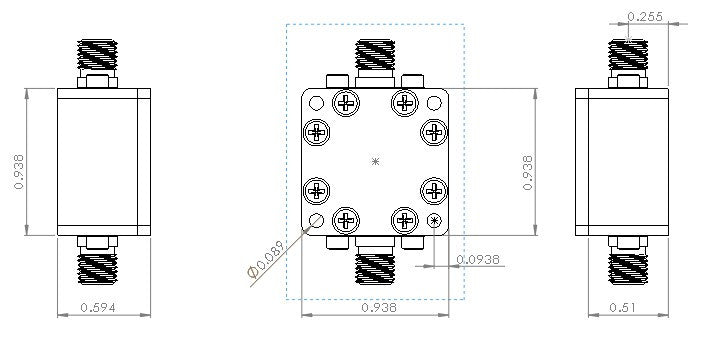

Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59".
- Input Frequency Range: 0.6 GHz to 1.2 GHz
- Multiply by M: (M=2)
- Operating Temperature -40 to +85C
- Input Power Range: Min. +10 dBm, Max. +15 dBm
- Synthesizer, Local Oscillators
- Microwave Radio
- Test Instrumentation
- Satellite Communication/Software Defined Radio/Ham Radio

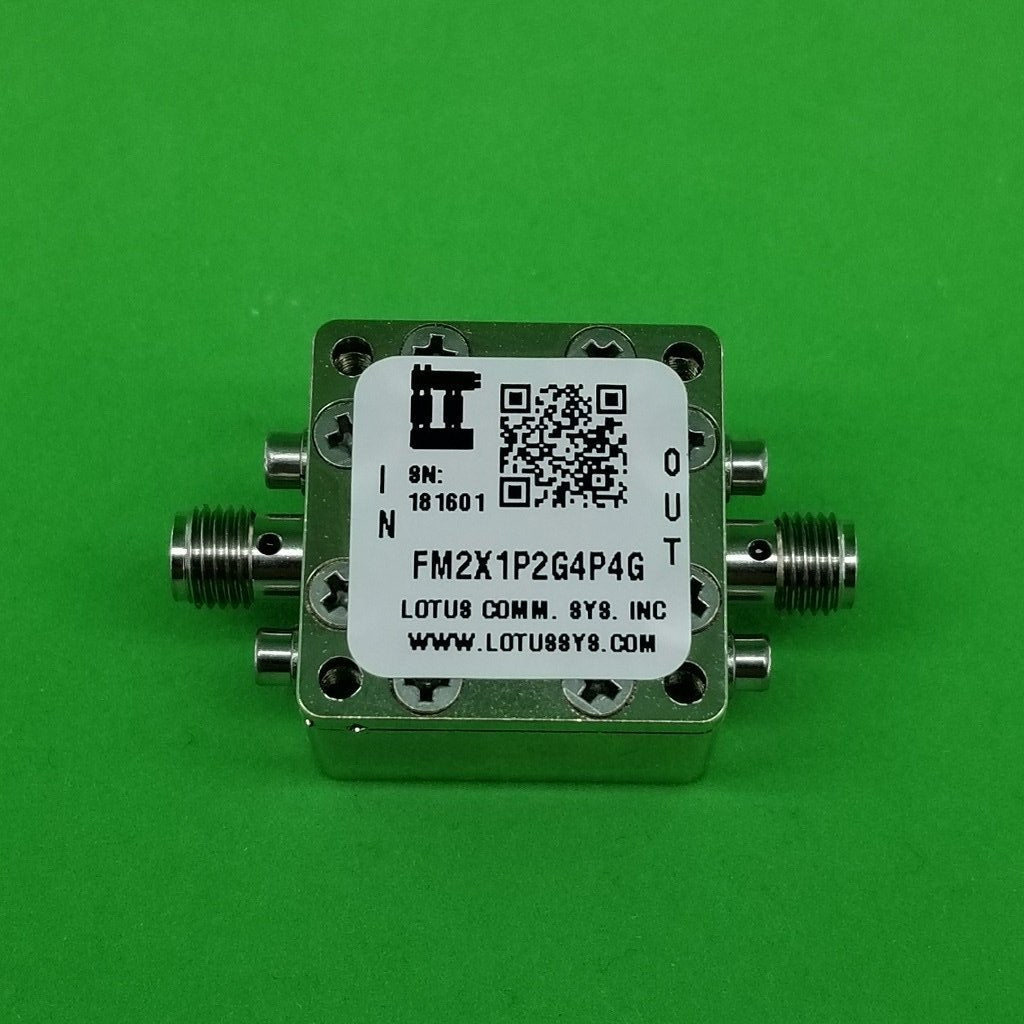

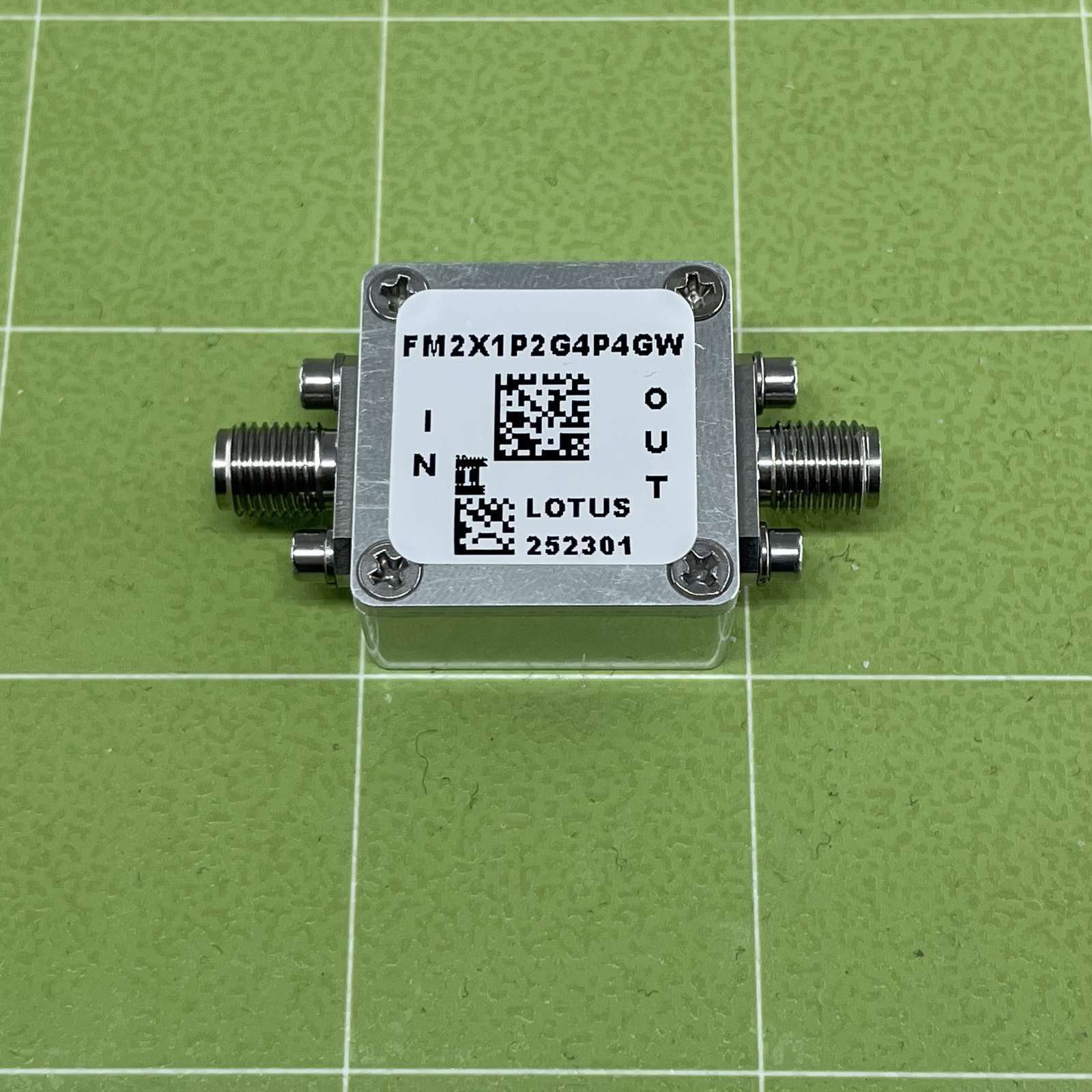

The frequency divider includes the RF Enclosure as shown in picture.

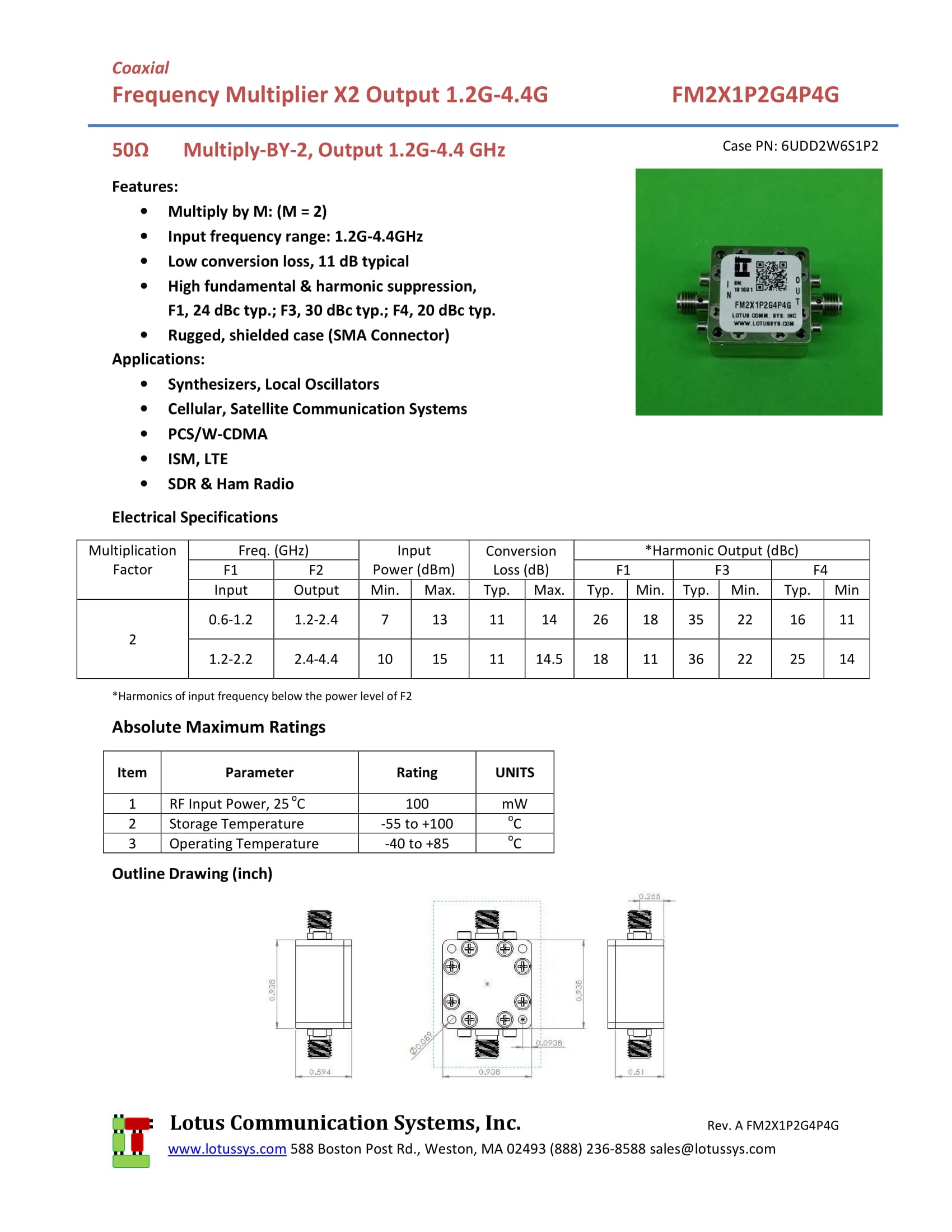

Click https://cdn.shopify.com/s/files/1/1592/7469/files/FM2X1P2G4P4G.pdf to see detailed specification.
Proudly MADE IN USA. SKU#: AK20_001K
