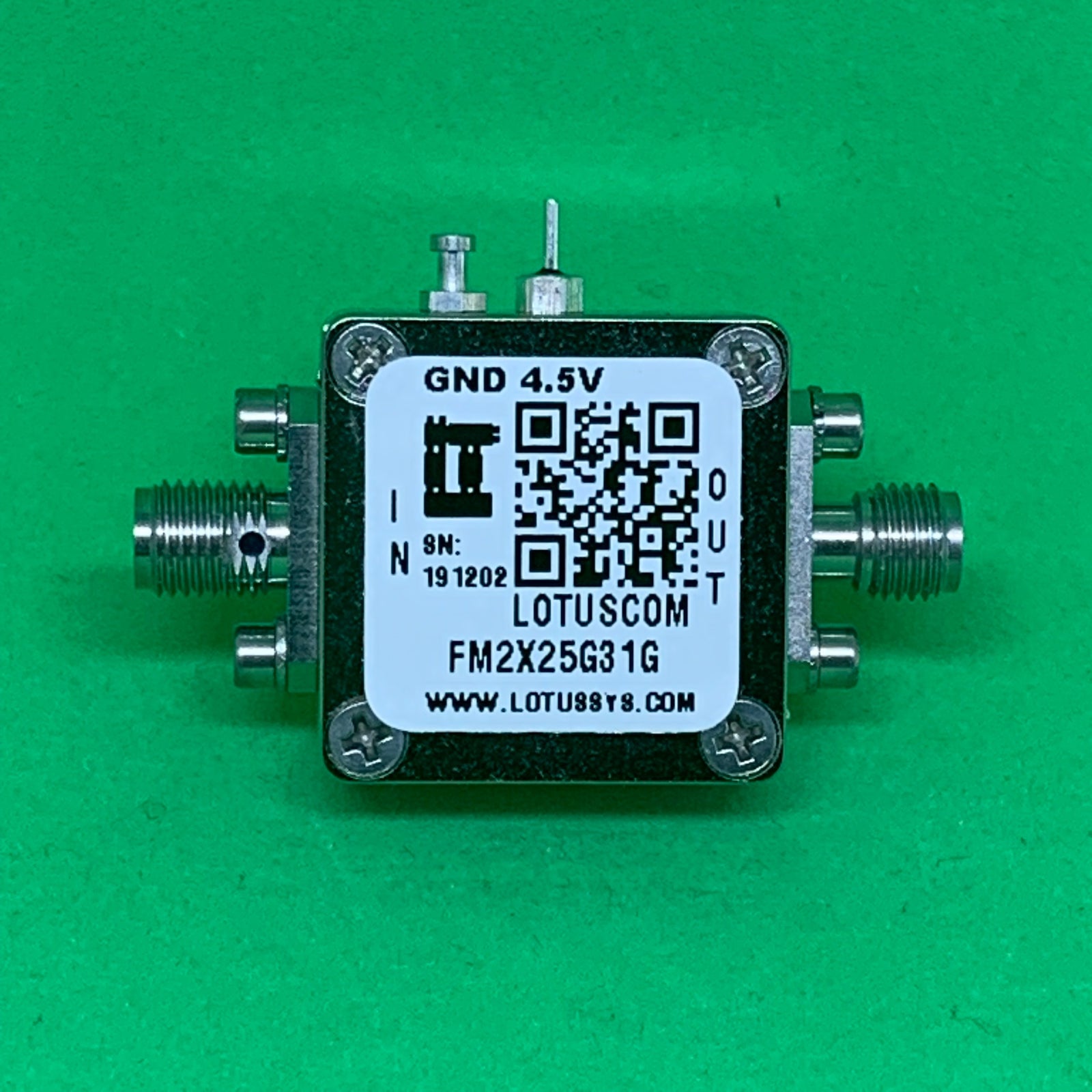

  • Active Freq. Multiplier X2 (OUTPUT 25G to 31 GHz) FM2X25G31G

    FM2X25G31G Frequency Multiplier X2 with input frequency range from 12.5 GHz to 15.5 GHz and output frequency range from 25 GHz to 31 GHz.  It has low input power drive requirement (0 to +6 dBm). When driven by +4 dBm signal, the multiplier provide a +17 dBm typical output power from 25 to 31GHz.  It integrates 2 Amplifiers (one before Multiplier and one after Multiplier).  The FM2X25G31G is ideal for use in LO multiplier chains for Point-to-Point & VSAT Radios and yielding reduced parts counts vs. traditional approaches.  The input connector is SMA Steel Connector and Output connector is 2.92mm Steel Connector.

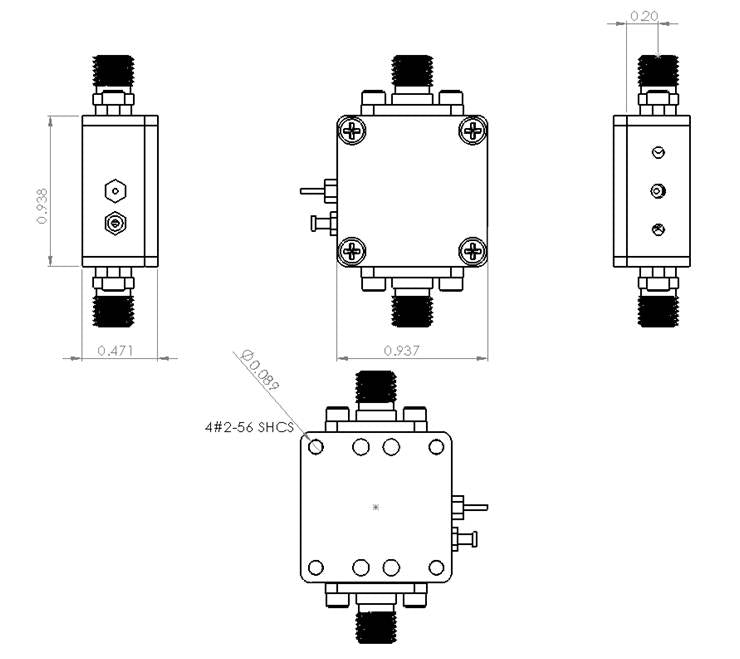

    Enclosure is using RF Design Kit 6UDD2W6O5A2 with dimension 0.9375"x0.9375x0.47".

    SKU#: AK20-005I

    Features

    • Multiply by M: (M=2)
    • High Output Power: +17 dBm
    • Low Input Power Drive: 0 to +6 dBm
    • Input Frequency Range: 12.5 GHz to 15.3 GHz
    • Output Frequency Range: 25 GHz to 31 GHz
    • Fo Isolation >45 dBc
    • Single Supply: +4.5V @214mA

    Applications

    • Synthesizer, Local Oscillators, Fiber Optic
    • Microwave Radio & Clock Generation
    • Test Instrumentation
    • Satellite Communication/Software Defined Radio/Ham Radio
