Freq. Multiplier X2 (OUTPUT 2.6G to 7.2GHz) FM2X2P6G7P2G

Freq. Multiplier X2 (OUTPUT 2.6G to 7.2GHz) FM2X2P6G7P2G

Freq. Multiplier X2 (OUTPUT 2.6G to 7.2GHz) FM2X2P6G7P2G

Freq. Multiplier X2 (OUTPUT 2.6G to 7.2GHz) FM2X2P6G7P2G

$ 198.00 USD

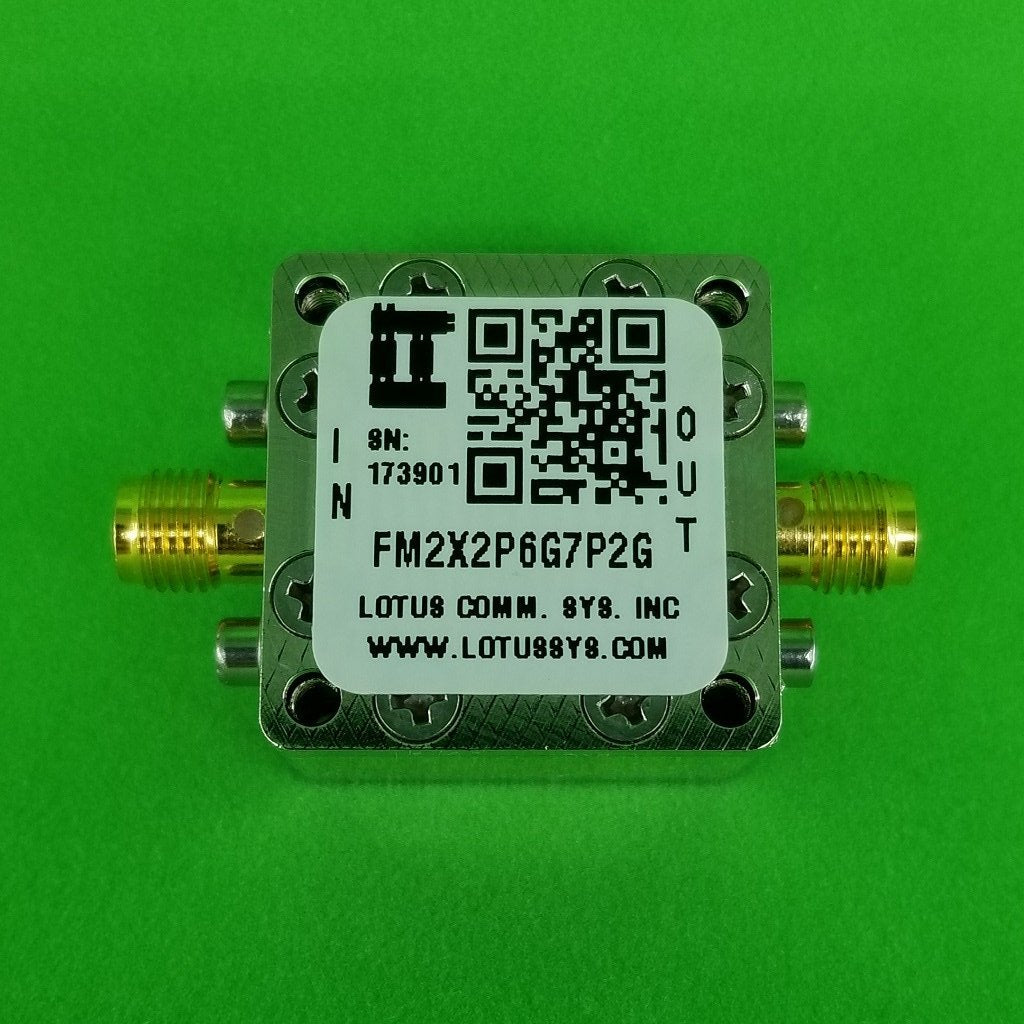

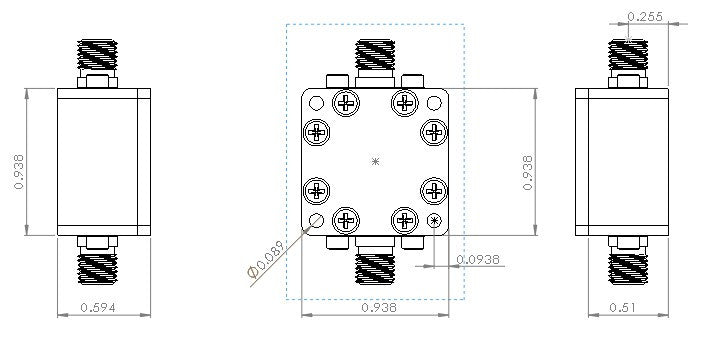

PN#: FM2X2P6G7P2G Frequency Multiplier X2 with input frequency range from 1.3 GHz to 3.6 GHz. Enclosure is using RF Design Kit 6UDD2W6S1P2 with dimension 0.9375"x0.9375x0.59". The frequency divider includes the RF Enclosure as shown in picture. SKU#: AK20-001K.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Frequency Multipliers

Features

Multiply by M: (M=2)
Input Frequency Range: 1.3 GHz to 3.6 GHz
Output Frequency Range: 2.6 GHz to 7.2 GHz
Input Power Range: Min. +9 dBm, Max. +13 dBm
Operating Temperature -40 to +85C

Applications

Synthesizer, Local Oscillators
Microwave Radio
Test Instrumentation
Satellite Communication/Software Defined Radio/Ham Radio

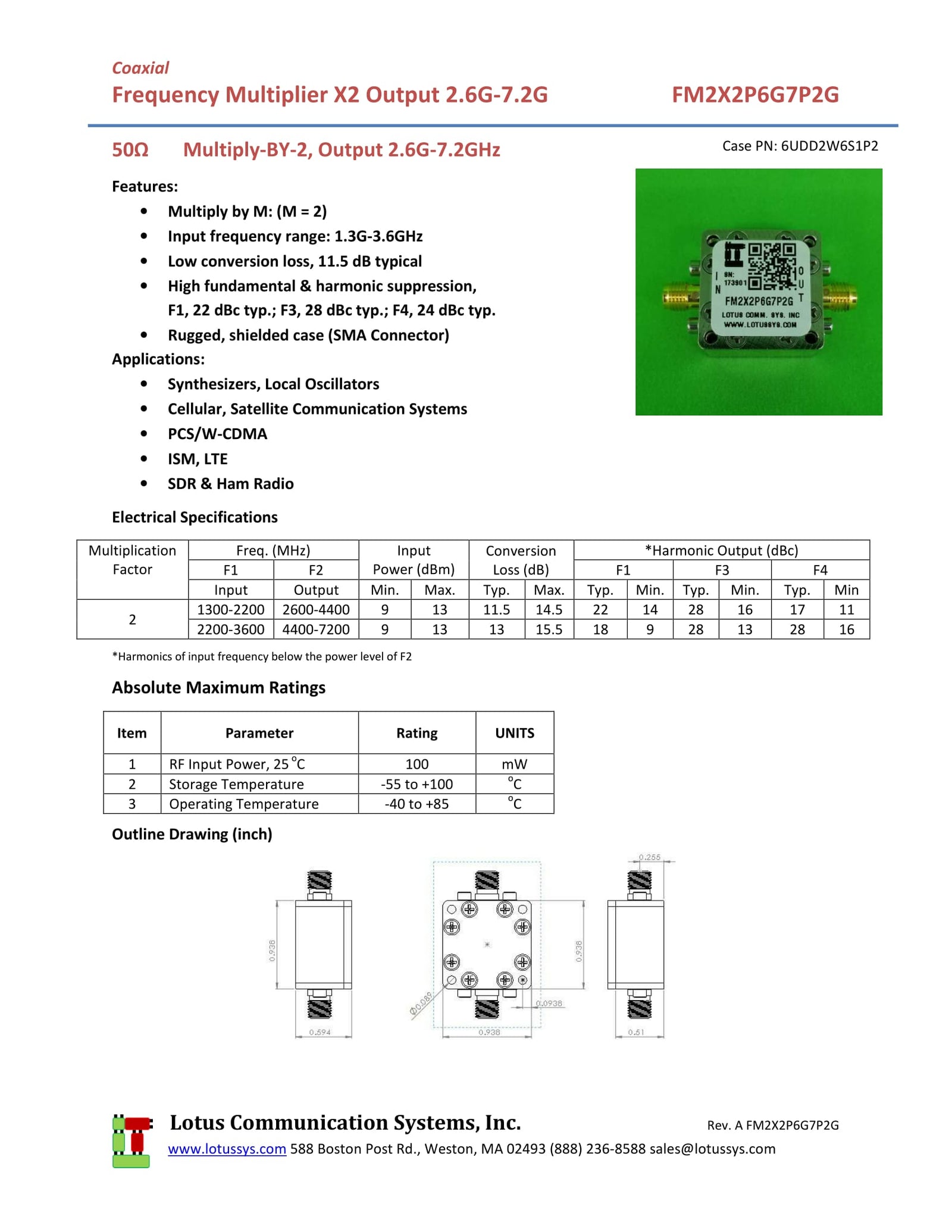

Resources (PDF Datasheet)

FM2X2P6G7P2G Datasheet
