  • Oscillator OCXO (Stratum 3) 10MHz (±25 ppb) (Wide Voltage Range +4~12V)

    Part Number: CRYOCXO010MR Precision OCXO (Stratum 3) with 10 MHz output. It has superior +/-25 ppb over temperature -40°C to +85°C.  It has wide operation voltage from +4 to +12V.

    It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

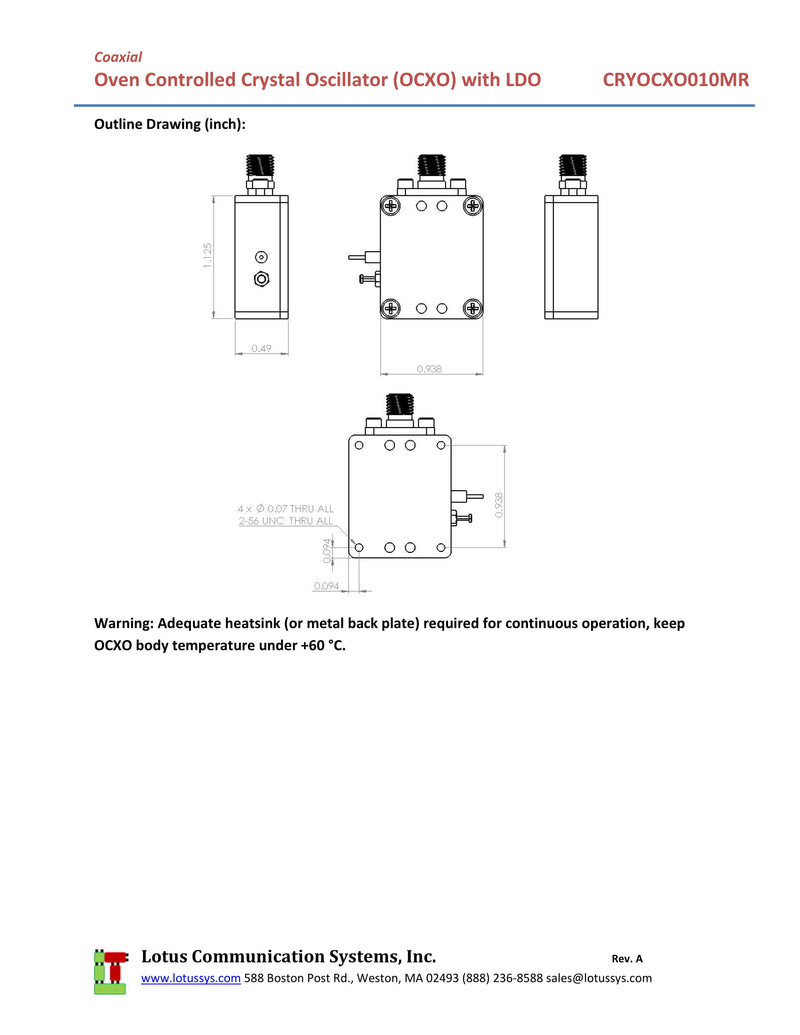

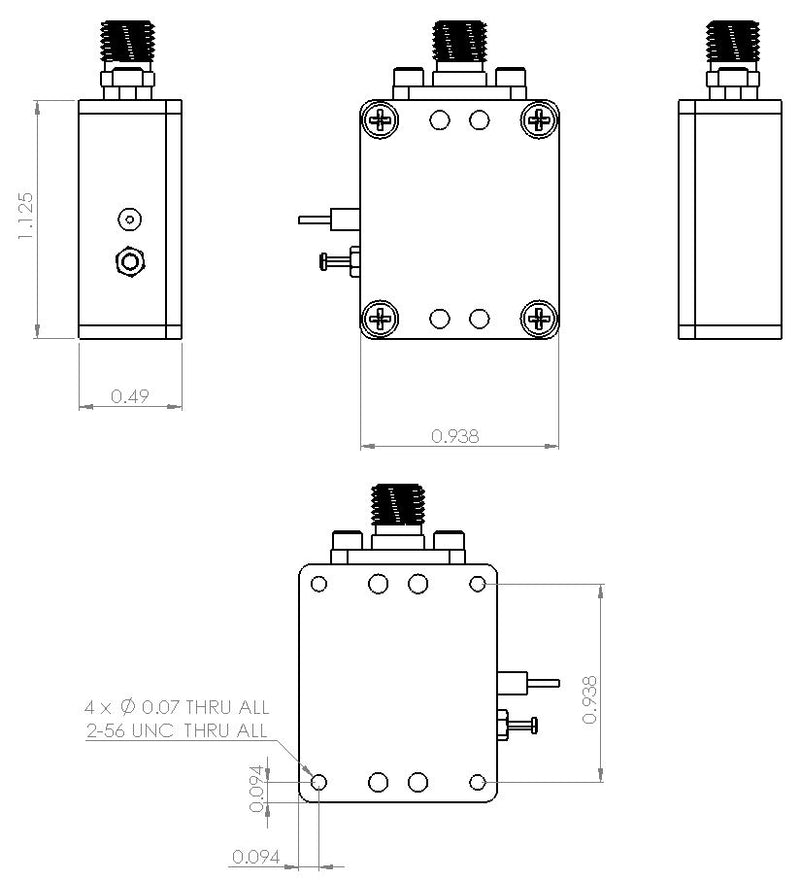

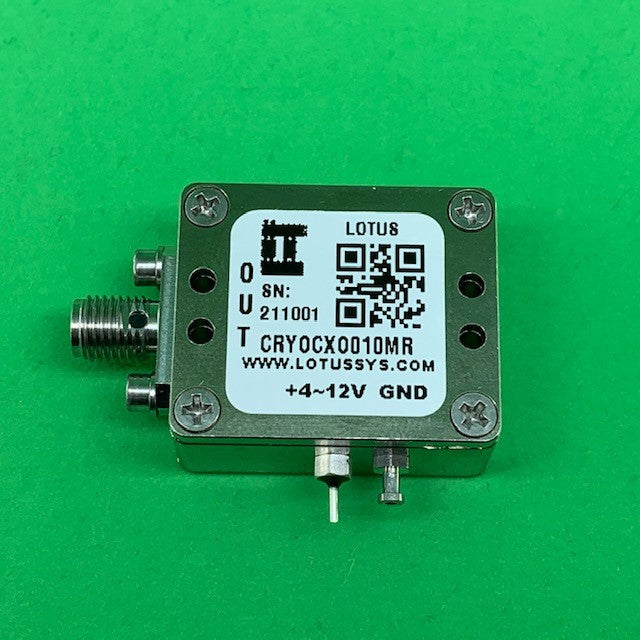

    Enclosure is using RF Design Kit 6UED2W6H41SMAA1 (only one SMA output) with dimension 1.125"x0.9375x0.59". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-001B.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    5 items left

    Features

    • Output Frequency 10 MHz (Smallest OCXO Module)
    • ±25 ppb Stability over -40°C to +85°C
    • Short-term aging better than ±2 ppb/day
    • Low Power Consumption (350mW)
    • Power Supply: +4V~12V
    • Operating Temperature: -40°C to 60°C
    • SMA Female Connector (50 ohm system)
    • ROHS Compliant

    Applications

    • Stratum 3
    • Small Cells
    • Network Switches and Routers
    • Instrument Time & Frequency References
    • SyncE and IEEE 1588

    Resources

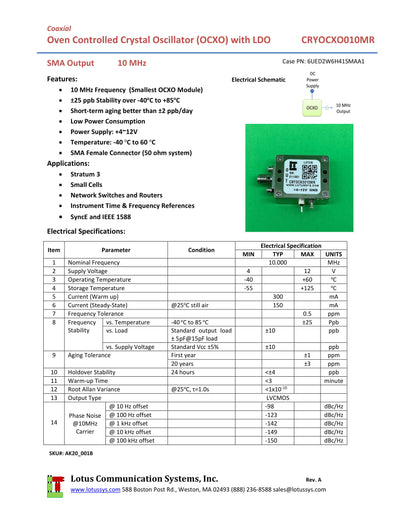

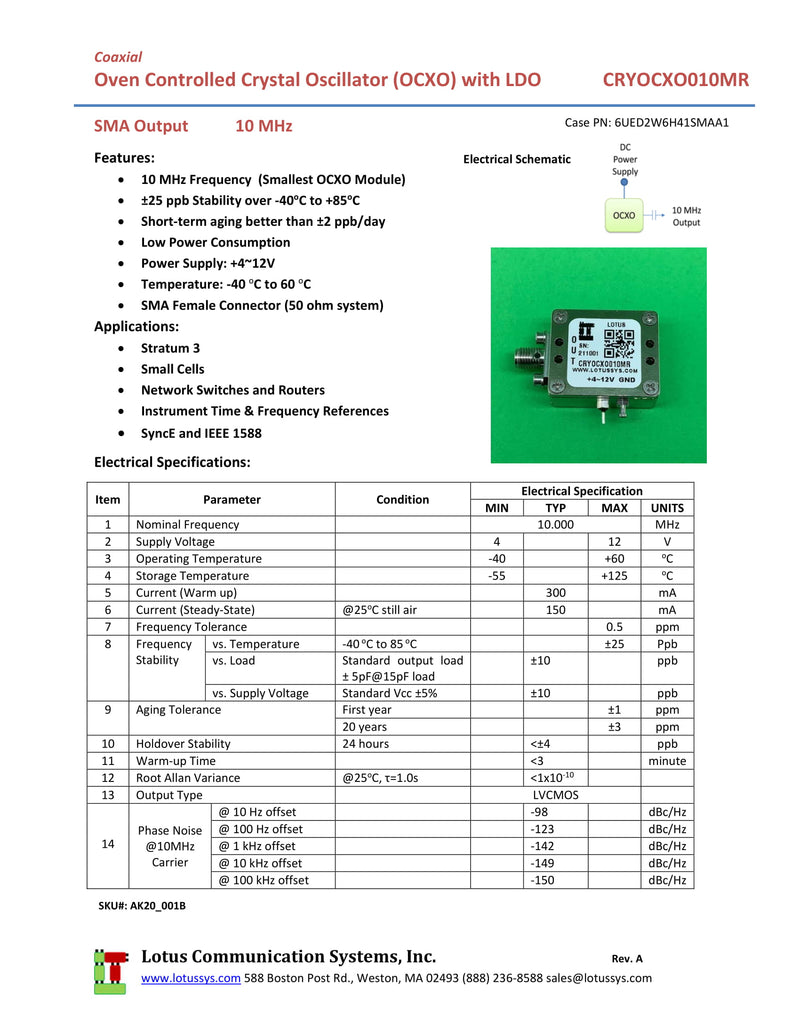

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYOCXO010MR Datasheet
