  • Oscillator OCXO (Stratum 3) 10MHz (±30 ppb) Sinewave Output

    Part Number: CRYOCXO10MS Precision OCXO (Stratum 3) with 10 MHz output. It has superior +/-30 ppb over temperature -40°C to +50°C.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

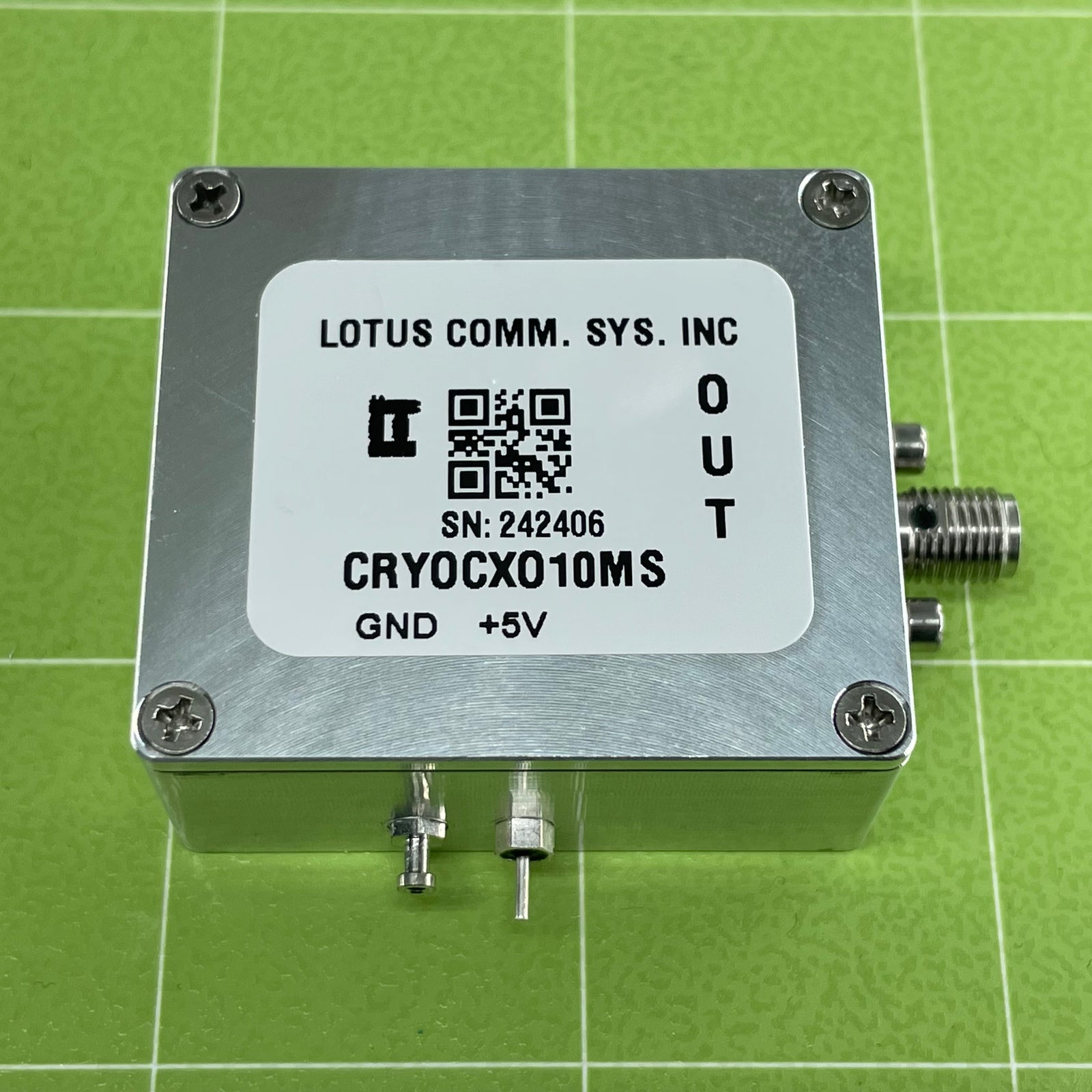

    Enclosure is using RF Design Kit 6UHG2W6H65SMAA1 (only one SMA output) with dimension 1.688"x1.5x0.725". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-014L.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    5 items left

    Features

    • Output Frequency 10 MHz
    • SC-Cut, High "Q" resonator based design
    • Sinewave Output
    • ±30 ppb Stability over -40°C to +75°C
    • Exceptional long-term aging of +/-500 ppb max. over 10-year
    • Exceptional close-in phase noise (-140 dBc/Hz Max. @100Hz offset)
    • Power Supply: +5 V
    • SMA Female Connector (50 ohm system)
    • ROHS Compliant

    Applications

    • Stratum 3
    • Small Cells/Radar Systems
    • Instrument Time & Frequency References
    • SyncE and IEEE 1588
    • GPS Tracking/WiMax/WLAN

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYOCXO10MS Datasheet
