Part Number: CRYOCXO100MS Precision OCXO (Stratum 3) with 100 MHz output. It has superior +/-30 ppb over temperature -40°C to +50°C. It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

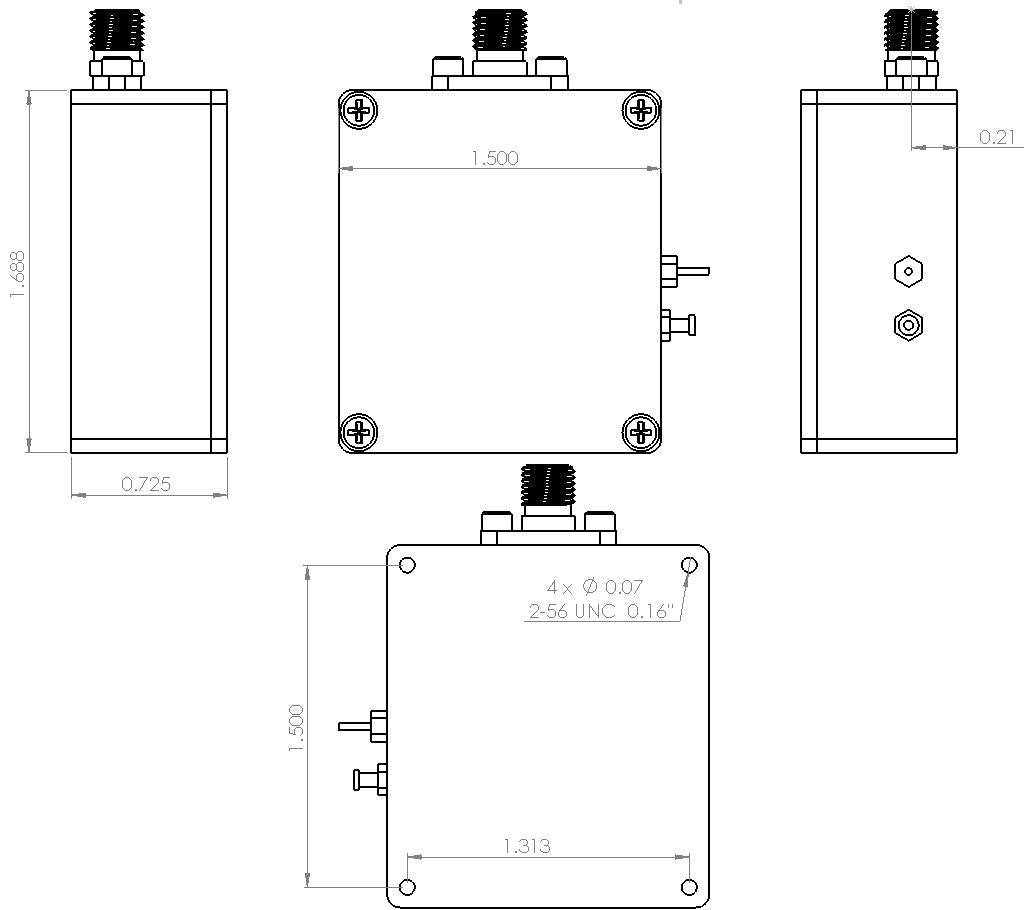

Enclosure is using RF Design Kit 6UHG2W6H65SMAA1 (only one SMA output) with dimension 1.688"x1.5x0.725". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-014L.
Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.
