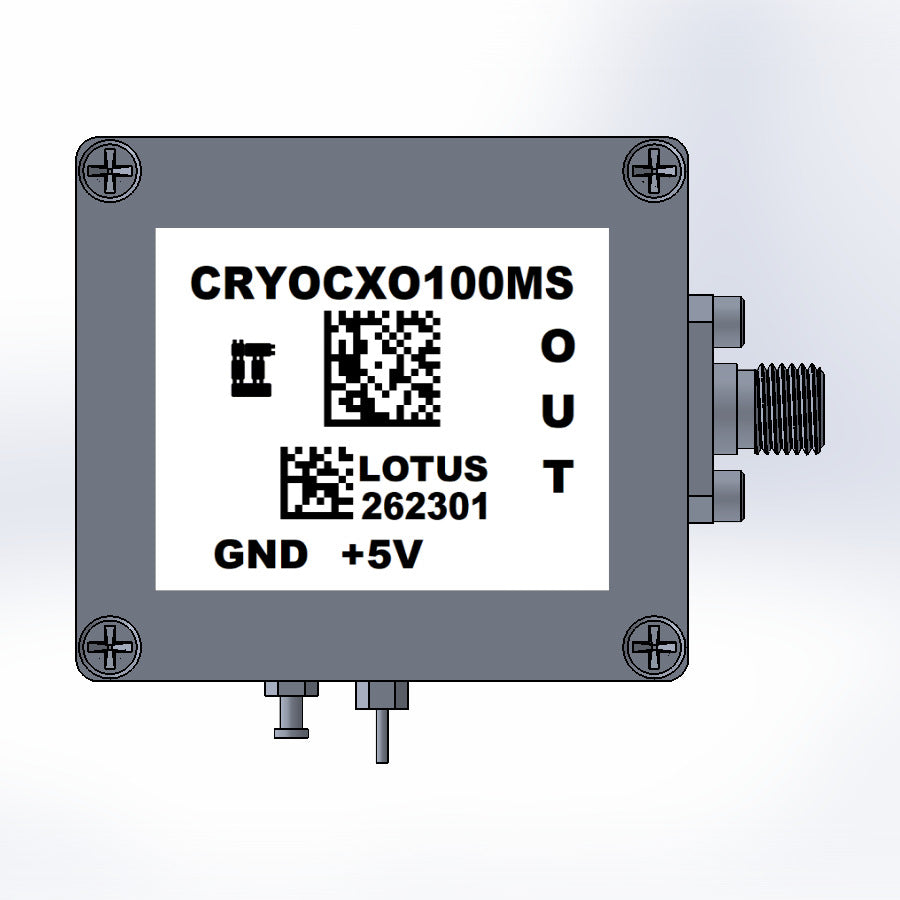

Oscillator OCXO (Stratum 3) 100MHz (±30 ppb)

2 items left

Part Number: CRYOCXO100MS Precision OCXO (Stratum 3) with 100 MHz output. It has superior +/-30 ppb over temperature -40°C to +50°C.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

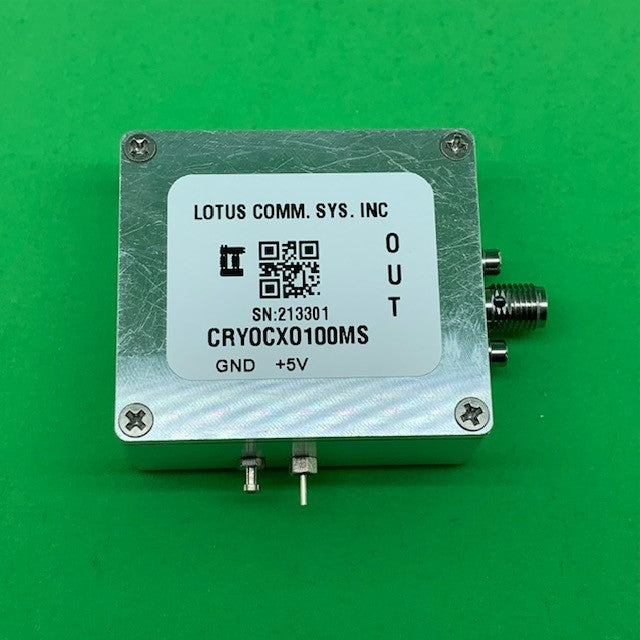

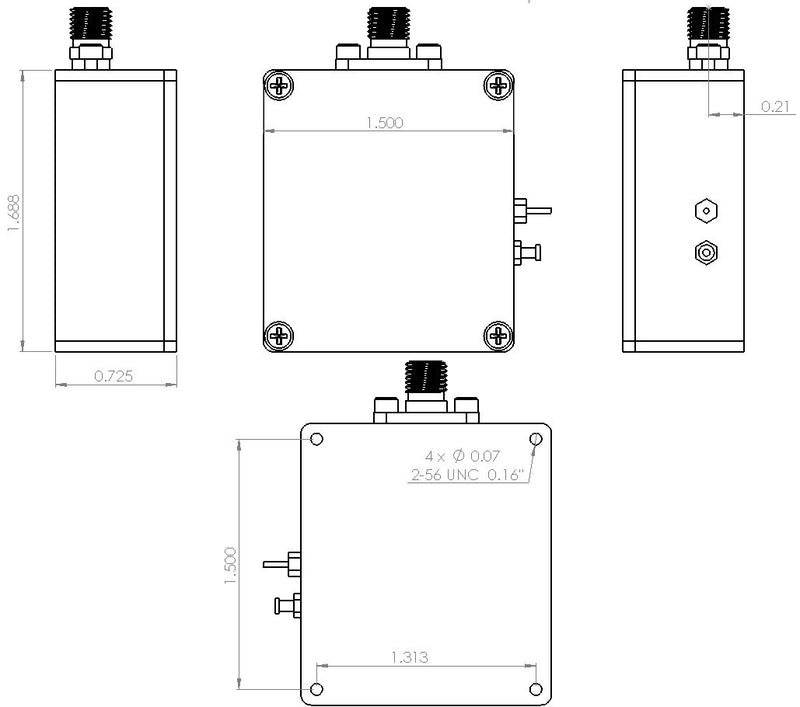

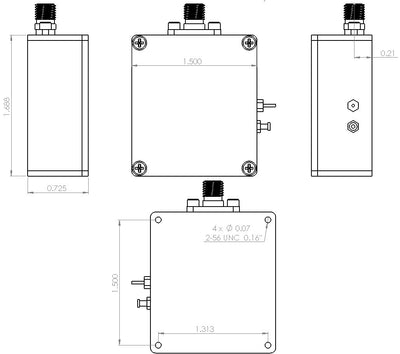

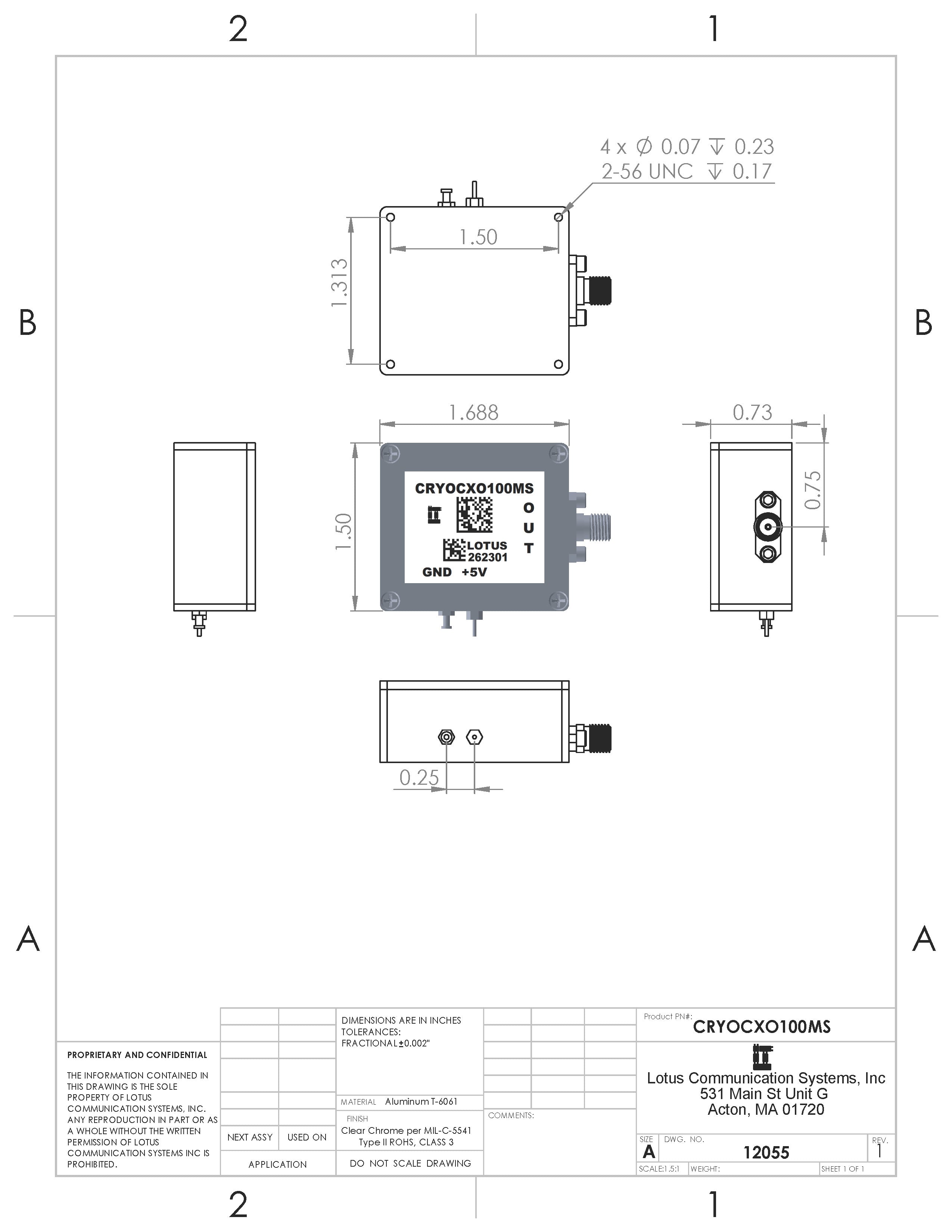

Enclosure is using RF Design Kit 6UHG2W6H65SMAA1 (only one SMA output) with dimension 1.688"x1.5x0.725". This OCXO Module includes the RF Enclosure as shown in picture. SKU#: AK20-014L.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


Features

  • Output Frequency 100 MHz
  • SC-Cut, High "Q" resonator based design
  • Sinewave Output
  • ±30 ppb Stability over -40°C to +50°C
  • Exceptional long-term aging of +/-500 ppb max. over 10-year
  • Exceptional close-in phase noise (-140 dBc/Hz Max. @100Hz offset)
  • Power Supply: +5 V
  • SMA Female Connector (50 ohm system)
  • ROHS Compliant

Applications

  • Stratum 3
  • Small Cells/Radar Systems
  • Instrument Time & Frequency References
  • SyncE and IEEE 1588
  • GPS Tracking/WiMax/WLAN

Resources
