  • Oscillator OCXO (Stratum 3) 10MHz (±25 ppb)

    Part Number: CRYOCXO010M Precision OCXO (Stratum 3) with 10 MHz output. It has superior +/-25 ppb over temperature -40&degC to +85&degC.  It can be used for GPS/GNSS, base station, small cell, and smart grid applications with an outstanding short-term and long-term frequency stability performance.

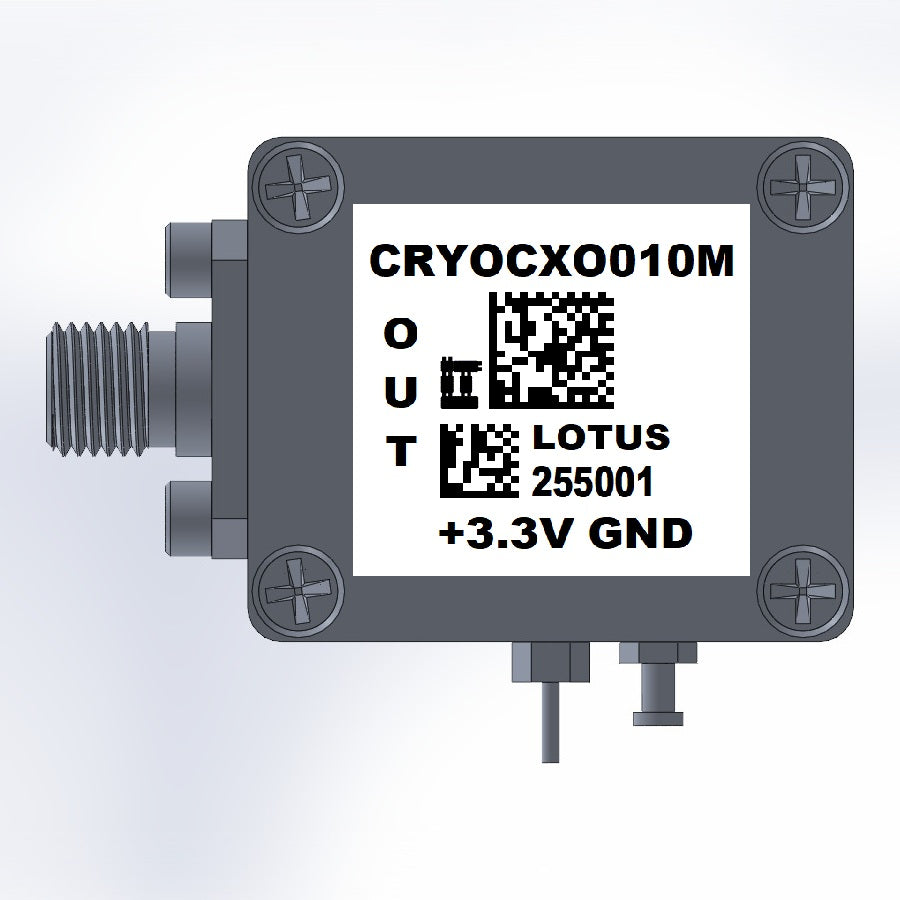

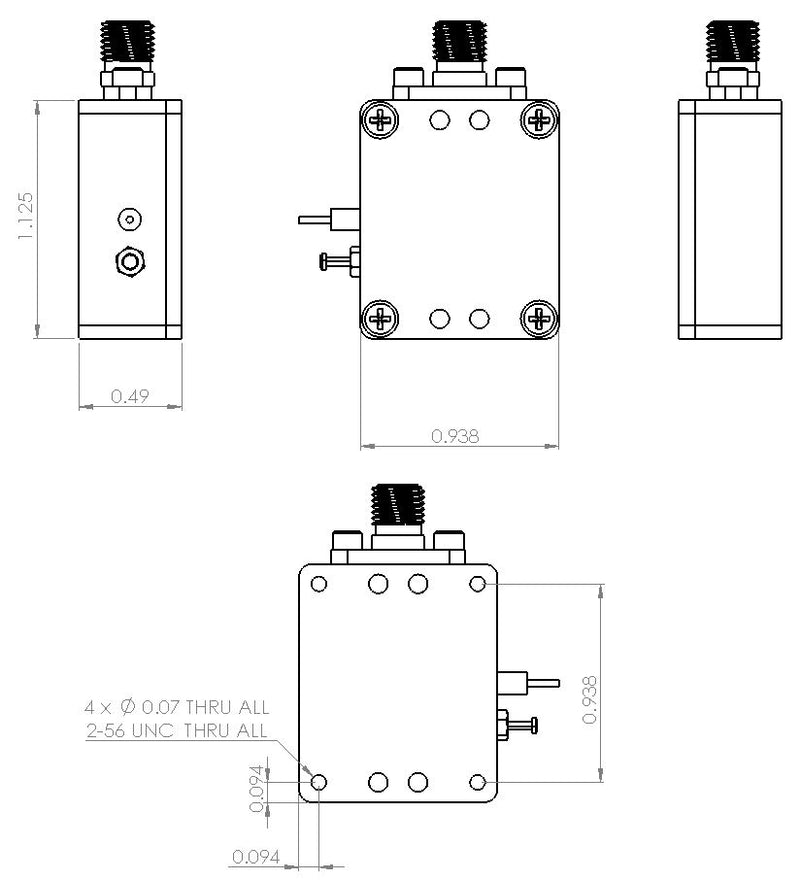

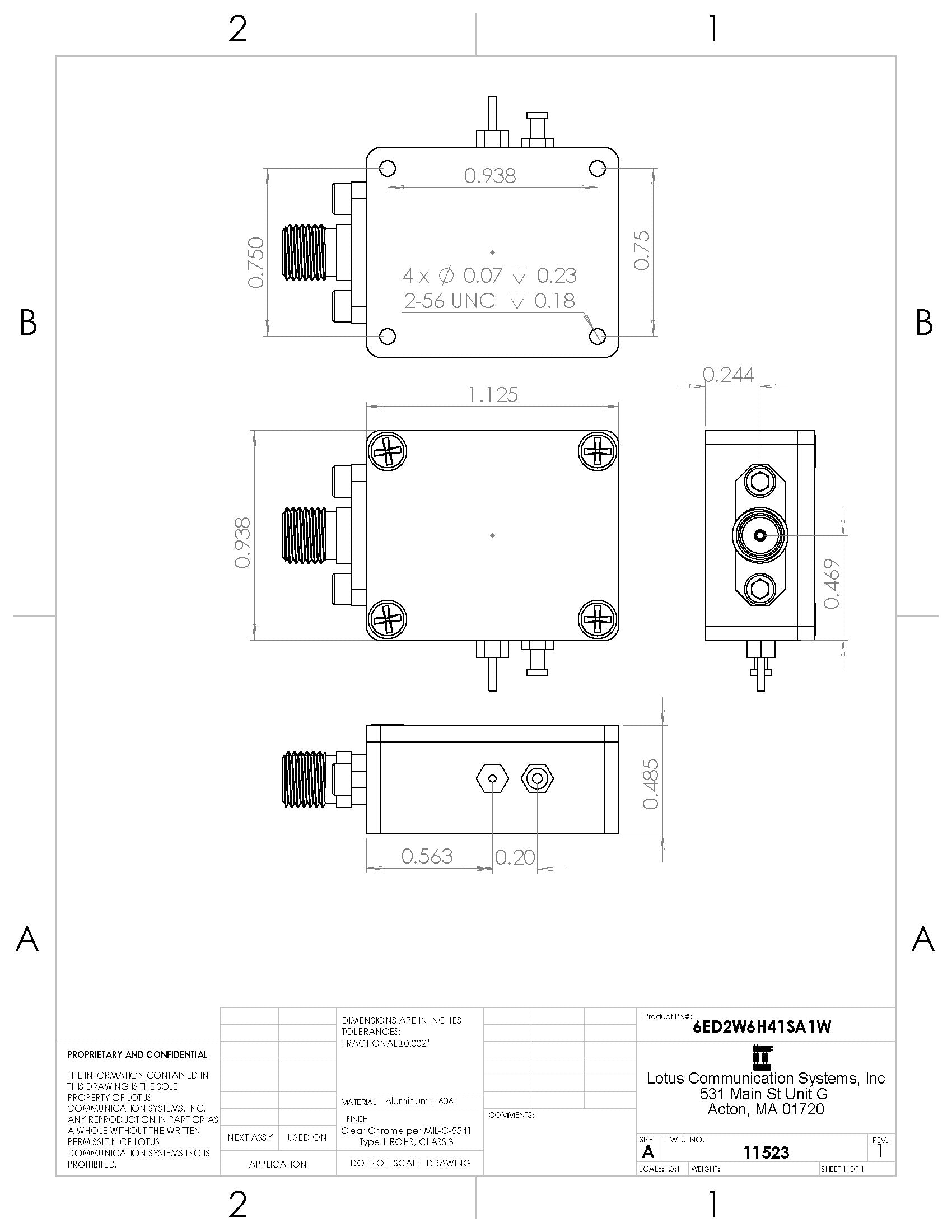

    Enclosure is using RF Design Kit 6UED2W6H41SMAA1 (only one SMA output) with dimension 1.125"x0.9375x0.59". This OCXO Module includes the RF Enclosure as shown in picture.

    Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.

    7 items left

    Features

    • Output Frequency 10 MHz (Smallest OCXO Module)
    • ±25 ppb Stability over -40°C to +85°C
    • Short-term aging better than ±2 ppb/day
    • Low Power Consumption (350mW)
    • Power Supply: +3.3 V
    • Operating Temperature: -40°C to 85°C
    • SMA Female Connector (50 ohm system)
    • ROHS Compliant

    Applications

    • Stratum 3
    • Small Cells
    • Network Switches and Routers
    • Instrument Time & Frequency References
    • SyncE and IEEE 1588

    Resources

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png CRYOCXO010M Datasheet
