Broadband Low Noise Amp 0.95dB NF 0.6GHz to 6GHz 21dB Flat Gain with Bias Tee

5 items left

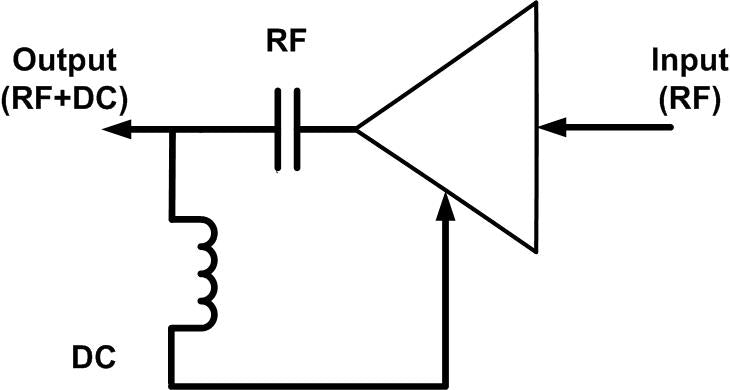

LNA600M6GFGBT is a flat gain, high-linearity, ultra low noise amplifier in a small 1-1/8”x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). The LNA provides a 2dB flat gain (peak-to-peak) from 3 to 6 GHz. At 5.5 GHz, the amplifier typically provides 21 dB gain, +35.5 dBm OIP3 at a 56 mA bias setting, and 0.95 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V. The DC power is fed through output SMA connector. It combines Bias Tee and LNA in one with DC Power via RF output port.

Listed pictures include Product Picture and S Parameter from 600M to 6GHz.

Features:
    * Frequency Range: 600 MHz to 6 GHz;
    * Noise Figure: typical 0.95 dB @ 5.5 GHz
    * Gain: 21 dB Gain at 5.5 GHz
    * Output P1dB: +19 dBm CW
    * +35.5 dBm OIP3 at 65mA current
    * DC Voltage: +3.3 to +5V
    * Stainless Steel SMA Female Connector
    * High Quality RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * 4.5G, 5G Massive MIMO
    * Repeaters/DAS
    * Mobile Infrastructure
    * LTE/WCDMA/CDMA/GSM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

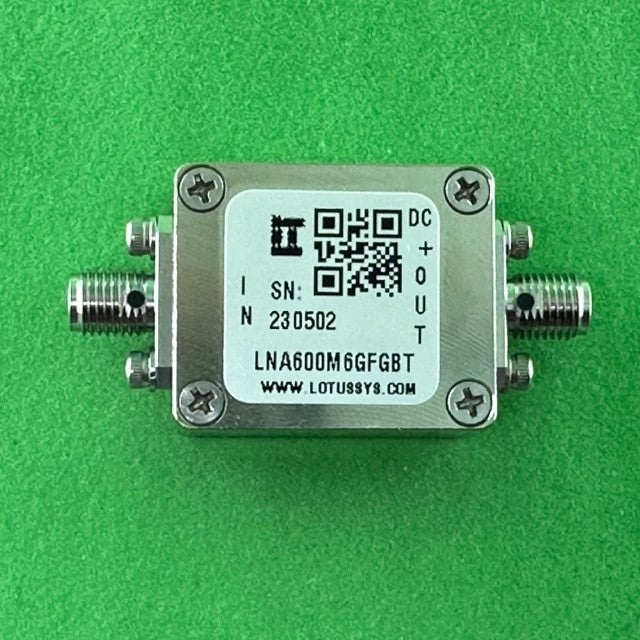

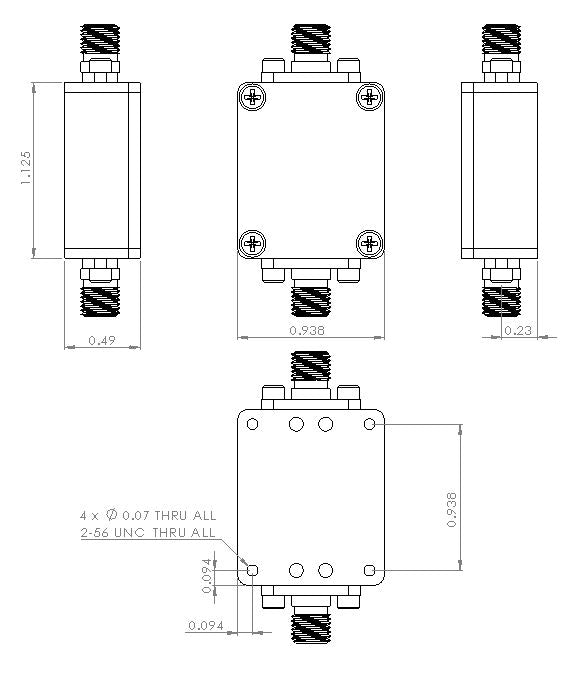

This LNA (integrated with Bias Tee) includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/LNA600M6GFGBT.pdf to see detailed specification.

Proudly MADE IN USA. SKU#: AK20_002K
