LNA700M6GBT

Broadband Low Noise Amp 0.4dB NF 0.7GHz to 6GHz 20dB Gain with Bias Tee

2 items left

LNA700M6GBT is a high-linearity, ultra low noise amplifier in a small 1-1/8"x15/16”x0.59” shielded RF enclosure (PN: 6UED2W6S1A2). At 1.95 GHz, the amplifier typically provides 20 dB gain, +35 dBm OIP3 at a 70 mA bias setting, and 0.4 dB noise figure. The LNA can be biased from a single supply +3.3V to +5V. The DC power is fed through output SMA connector. It combines Bias Tee and LNA in one with DC Power via RF output port.

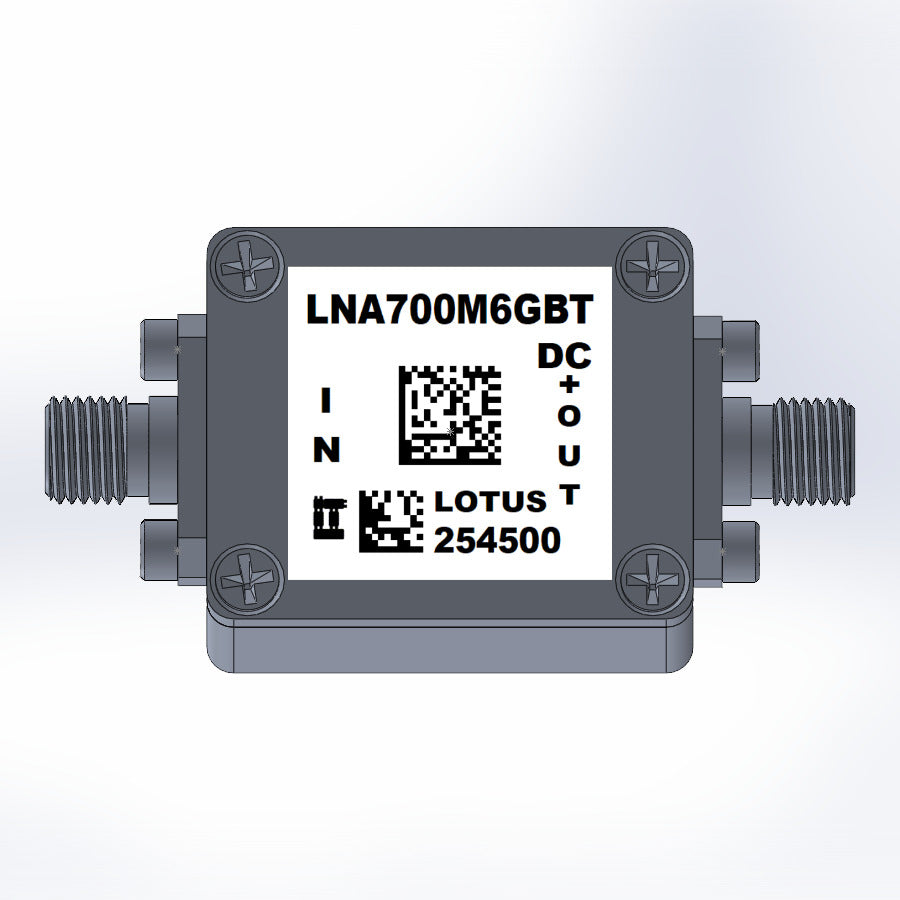

Listed pictures include Product Picture and S Parameter from 700M to 6GHz. SKU#: AK20_002K

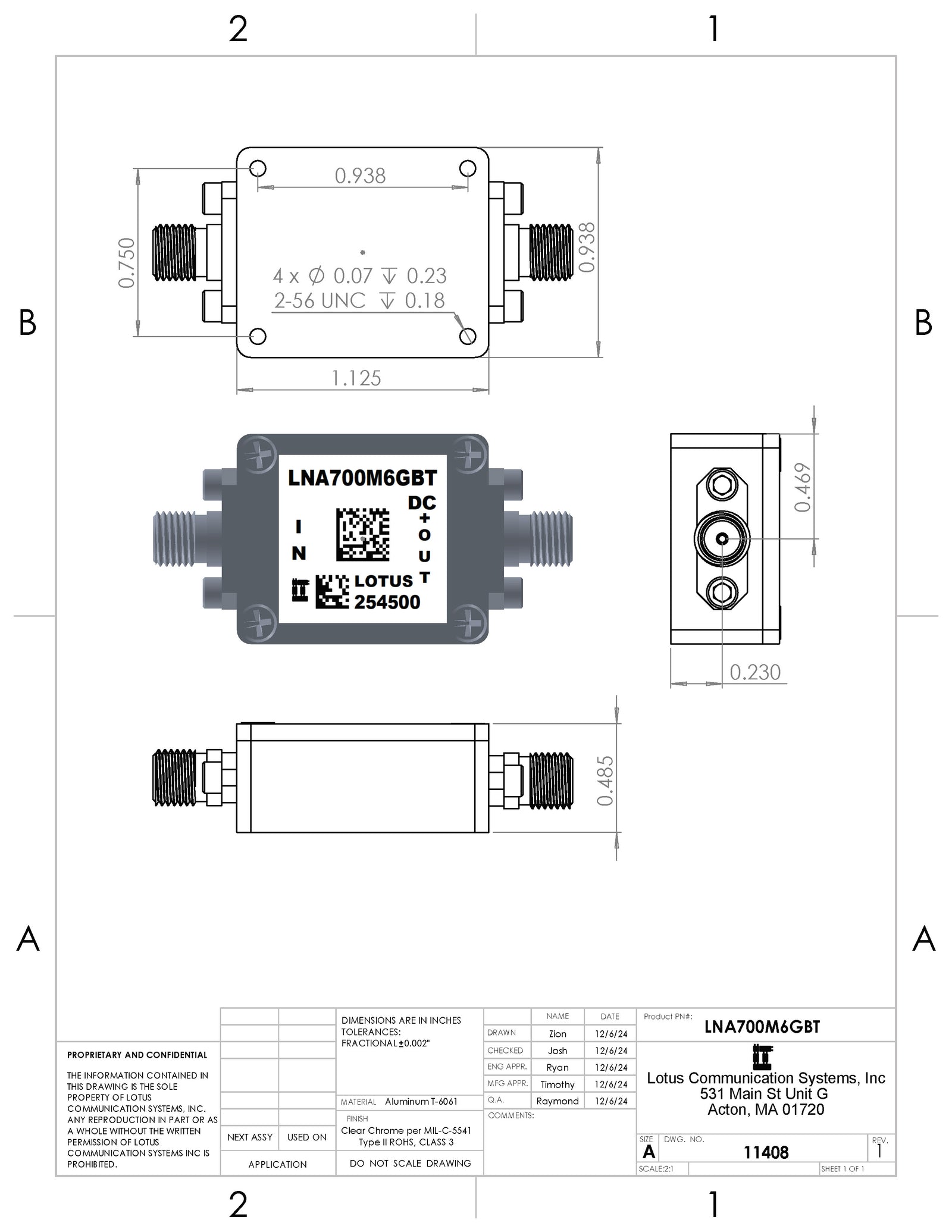

This LNA includes the RF Enclosure as shown in picture. Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.


Features

  • Frequency Range: 700 MHz to 6 GHz
  • Noise Figure: typical 0.4 dB @ 1.95 GHz
  • Gain: 20 dB Gain at 1.95 GHz
  • Output P1dB: +22 dBm CW
  • Output IP3: +35 dBm
  • DC Voltage: +3.3 to +5V
  • Operating Current: 70 mA
  • Stainless Steel SMA Female Connector
  • High Quality RO4350 RF PCB (very low loss and high thermal performance)
  • ROHS Compliant

Applications

  • Repeaters/DAS
  • Mobile Infrastructure
  • LTE/WCDMA/CDMA/GSM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png LNA700M6GBT Datasheet
