MPA6G18G

Medium Power Amplifier 4.5dB NF 6GHz to 18GHz 14dB Gain 20dBm P1dB SMA

2 items left

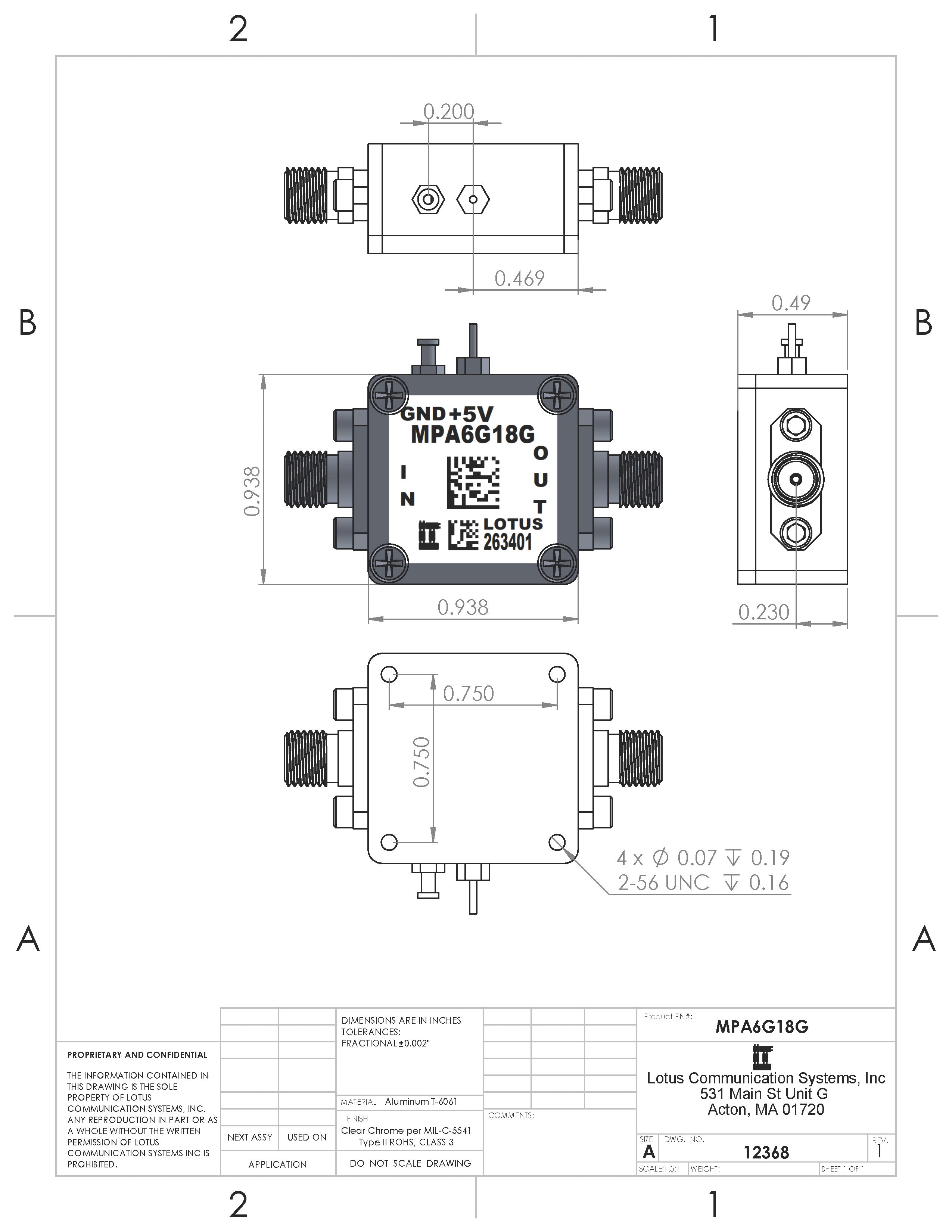

MPA6G18G is a broadband, efficient medium power amplifier with 14 dB typical gain from 6 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  It has +21.5 dBm of saturated power and 27% PAE from single +5
Power supply. Third order linearity (OIP3) is typically 28 dBm. The I/Os are DC blocked.

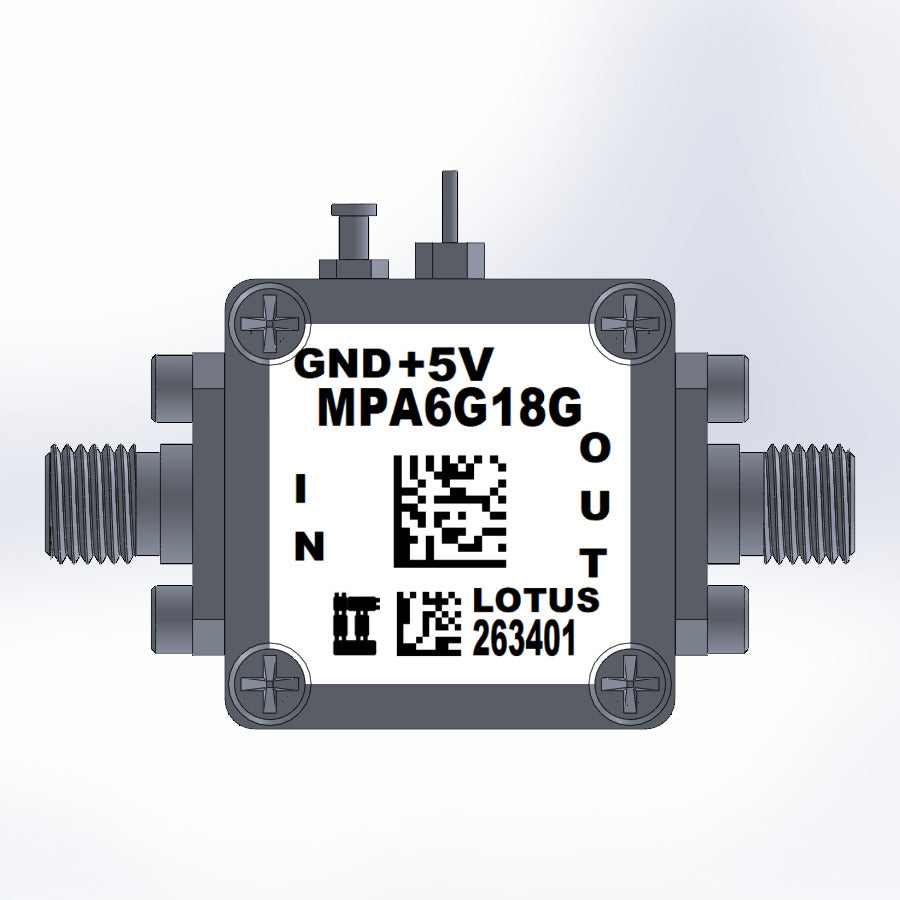

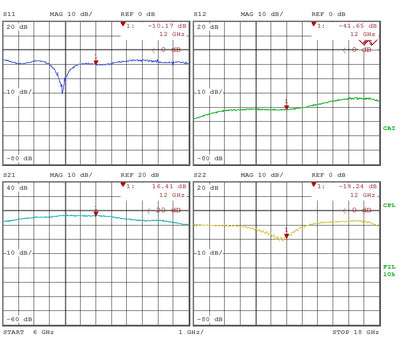

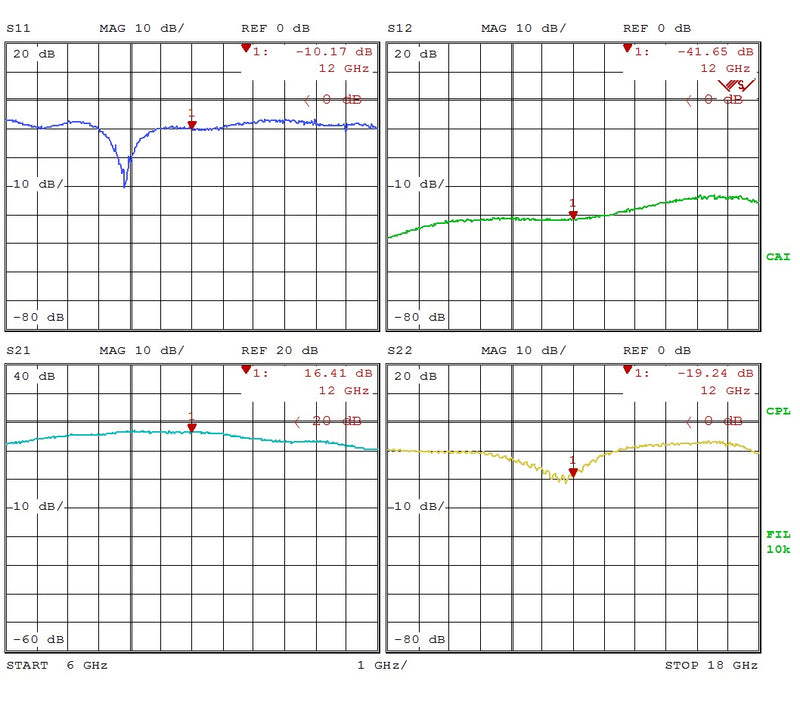

Listed pictures include Product Picture and S Parameter from 6 to 18 GHz.

Features:
    * Frequency Range: 6 GHz to 18 GHz;
    * Noise Figure: typical 4.5dB @ 10 GHz
    * Gain: typical 14 dB
    * Output P1dB:  20 dBm Typ.
    * Output IP3: 32 dBm Typ.
    * DC Voltage: +5V
    * Operating Current: 90mA
    * Stainless Steel SMA Female Connector
    * High Quality Rogers RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant

Applications:
    * Test Instrumentation
    * Wideband A/D System
    * General Purpose Wireless
    * Radar & VSAT
    * SDR & Ham Radio

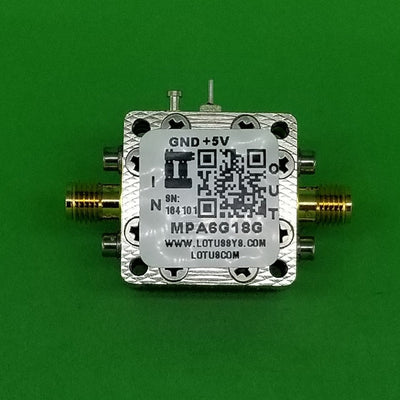

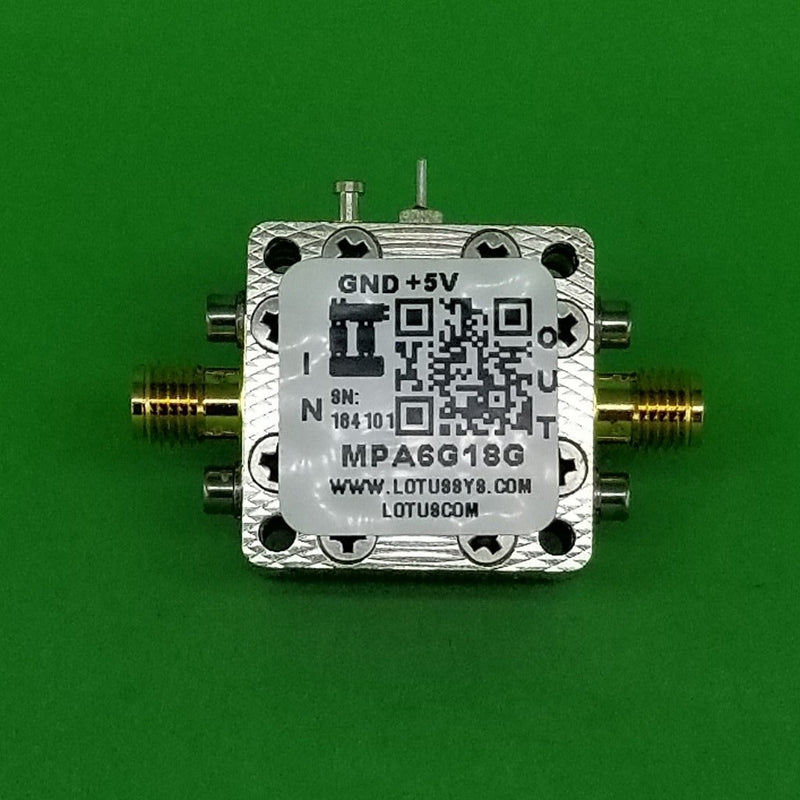

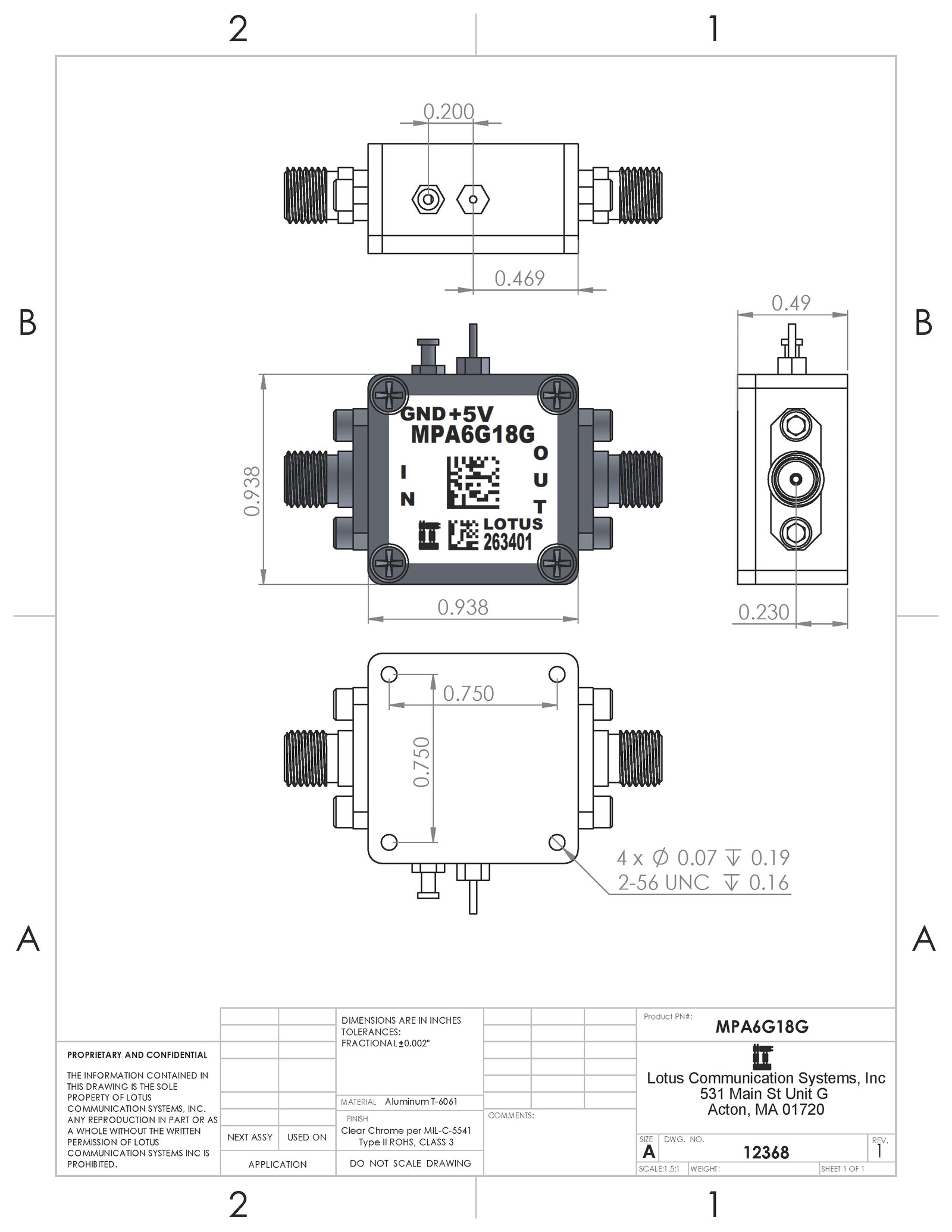

This LNA includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/MPA6G18G.pdf to see detailed specification.

Proudly MADE IN USA by Lotus Communication Systems, INC. in Massachusetts. SKU#: AK20_001N
