MPA5G20G

Medium Power Amplifier 7.0dB NF 5GHz to 20GHz 19dB Gain 20dBm P1dB SMA

2 items left

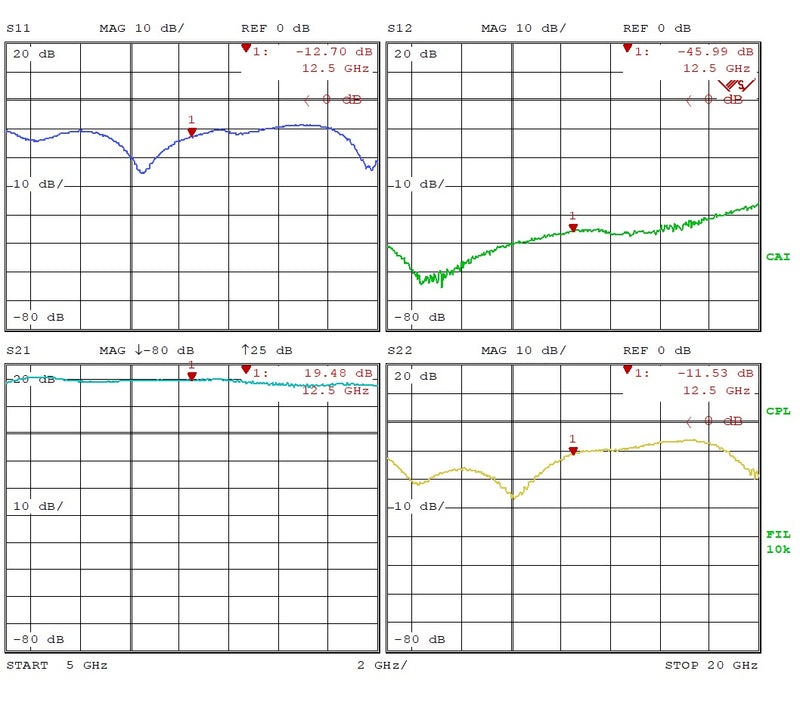

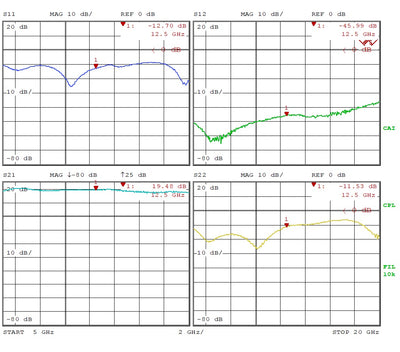

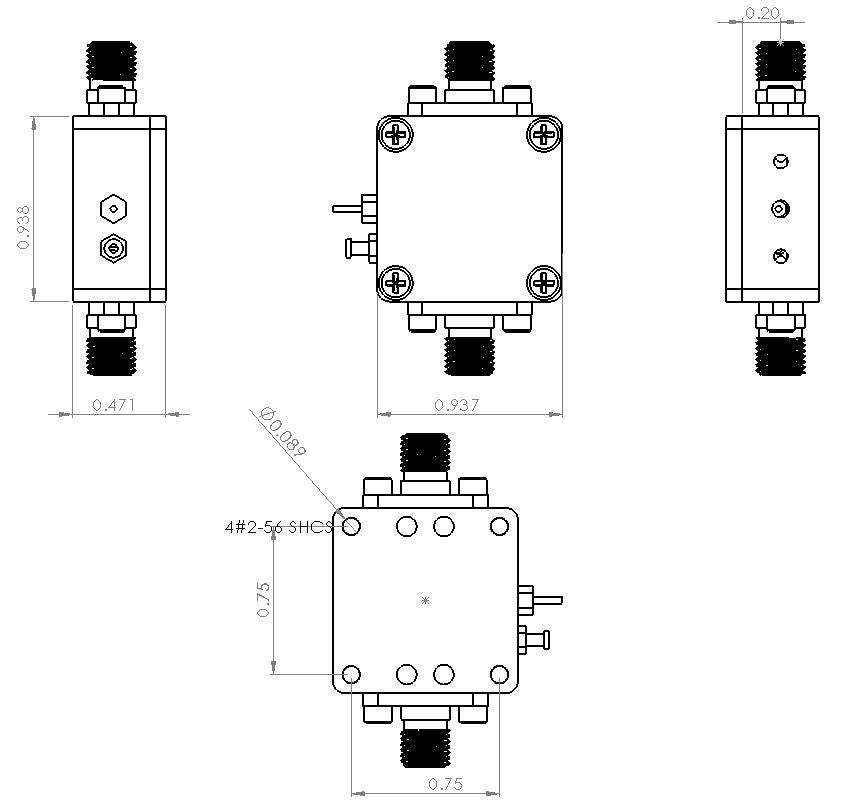

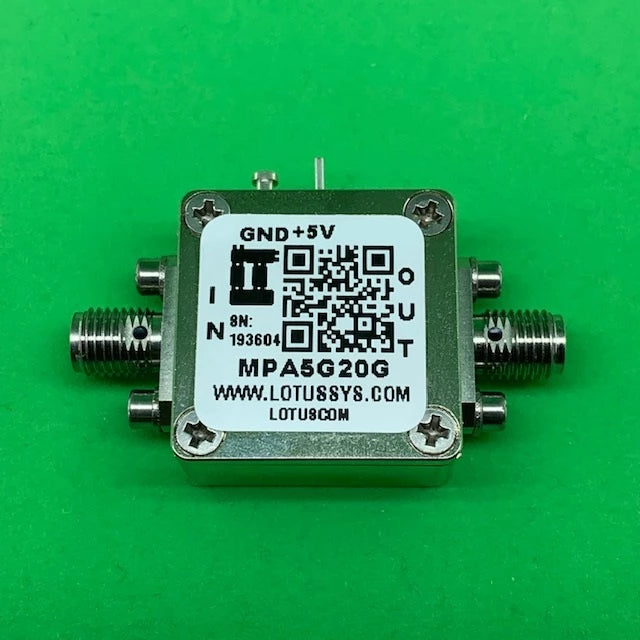

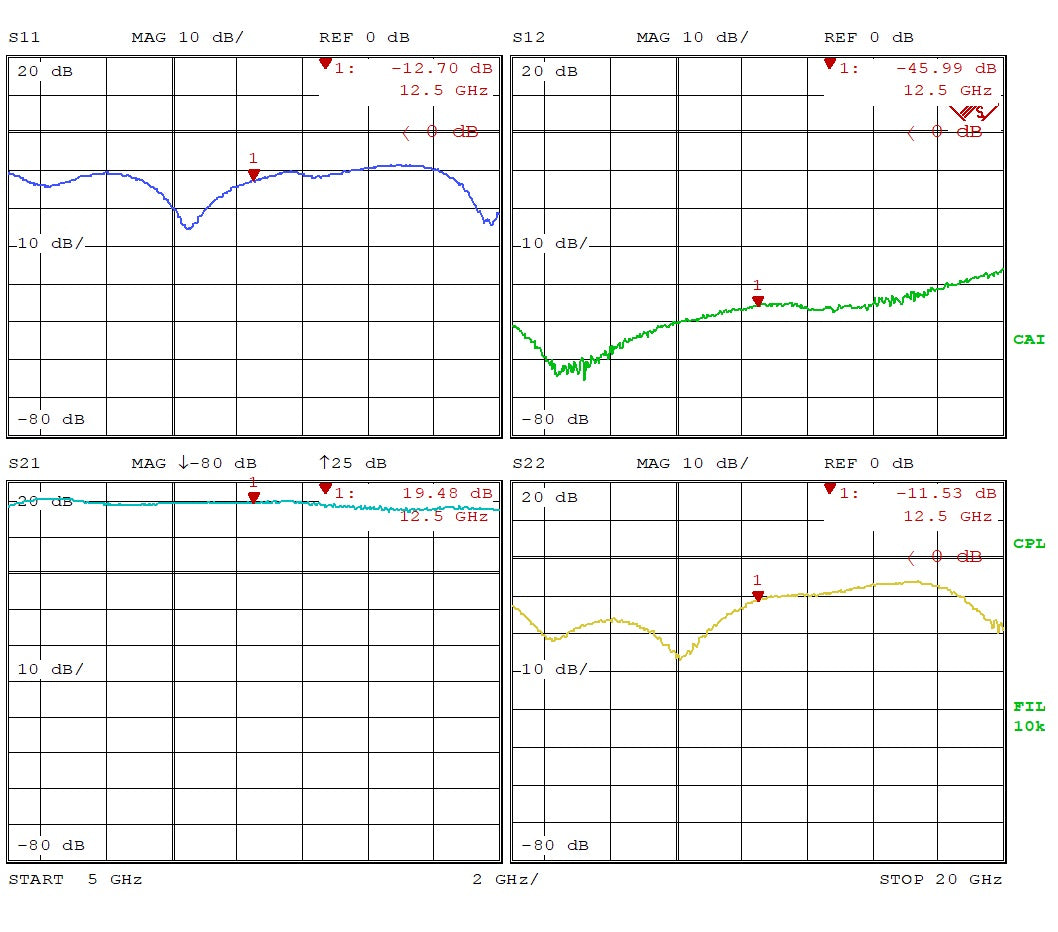

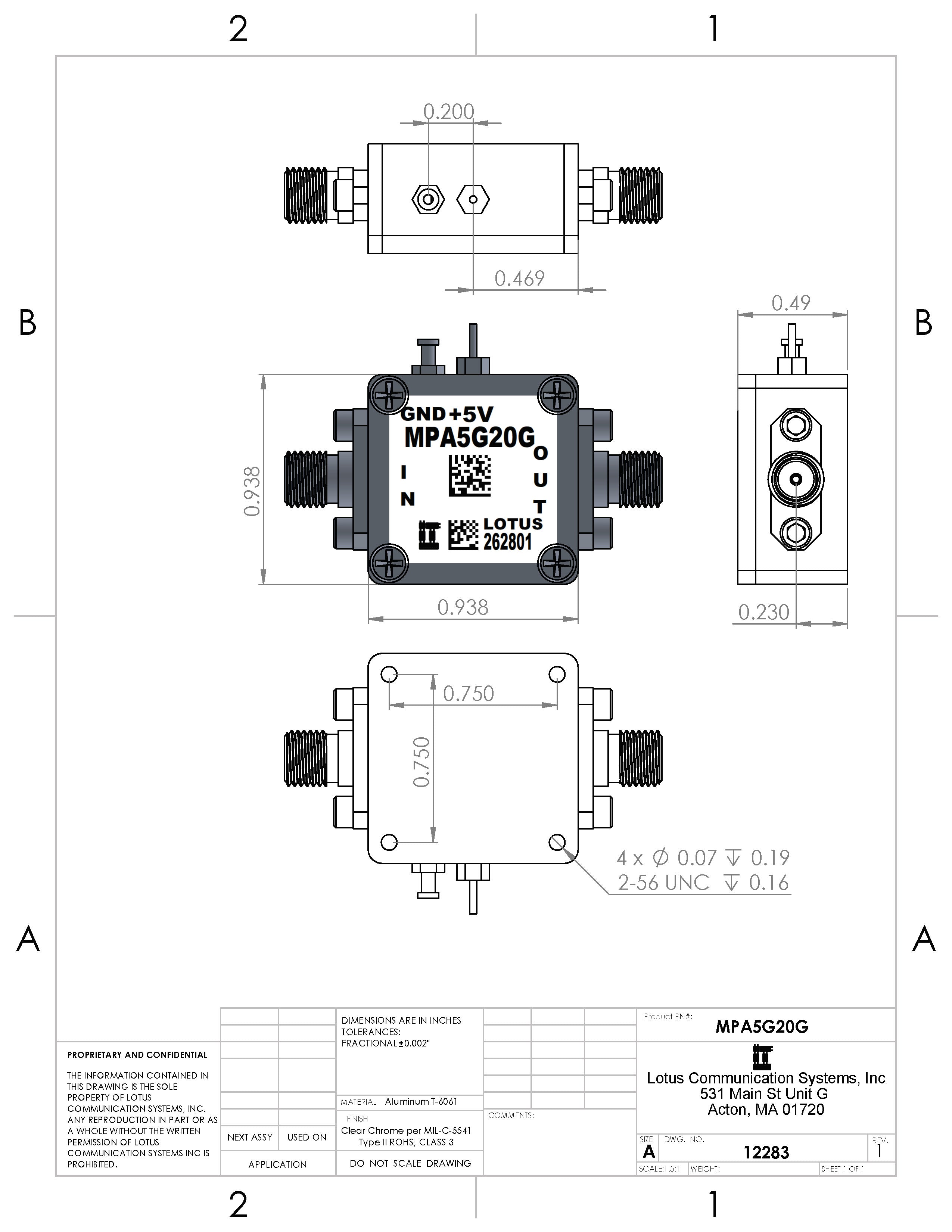

MPA5G20G is an efficient GaAs MMIC broadband, median power amplifier with 19 dB typical gain from 5 to 20 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  The saturated power is +21 dBm and 21% PAE from a single +5V supply.  Third order linearity (OIP3) is typically 30 dBm. It has excellent Gain flatness.

SKU#: AK20-001O


Features

  • Frequency Range: 5GHz to 20GHz
  • Noise Figure: typical 7.0dB @ 10 GHz
  • Gain: typical 18 dB @ 10 GHz
  • Output P1dB: 19.5 dBm
  • Output IP3: 30 dBm
  • DC Voltage: +5V
  • Operating Current: 114mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MPA5G20G Datasheet
