Medium Power Amp. 7.0dB NF 5G~18GHz 18dB Gain 20dBm P1dB SMA Wide Voltage

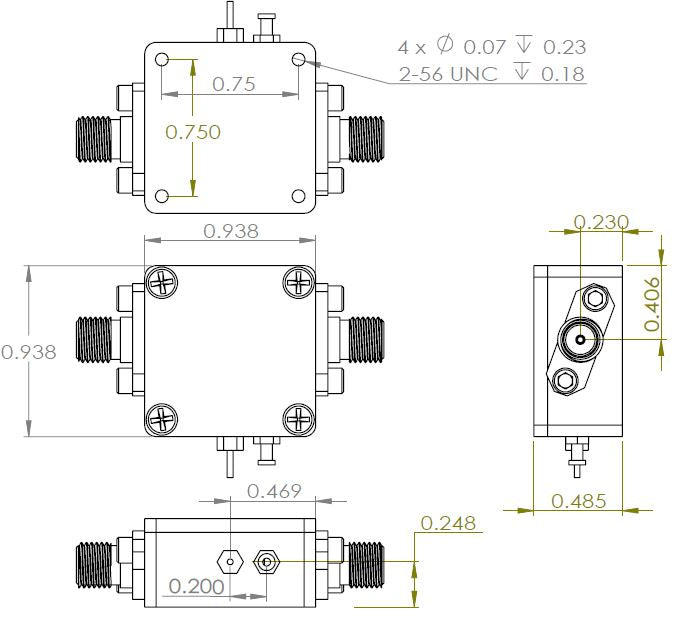

Part Number: MPA5G18GR is a flat gain, is a broadband, medium power amplifier with 18 dB typical gain from 5 to 18 GHz in a small 15/16”x15/16”x0.53” shielded RF enclosure.  Third order linearity (OIP3) is typically 28 dBm. It can be powered by +5.5~12V.

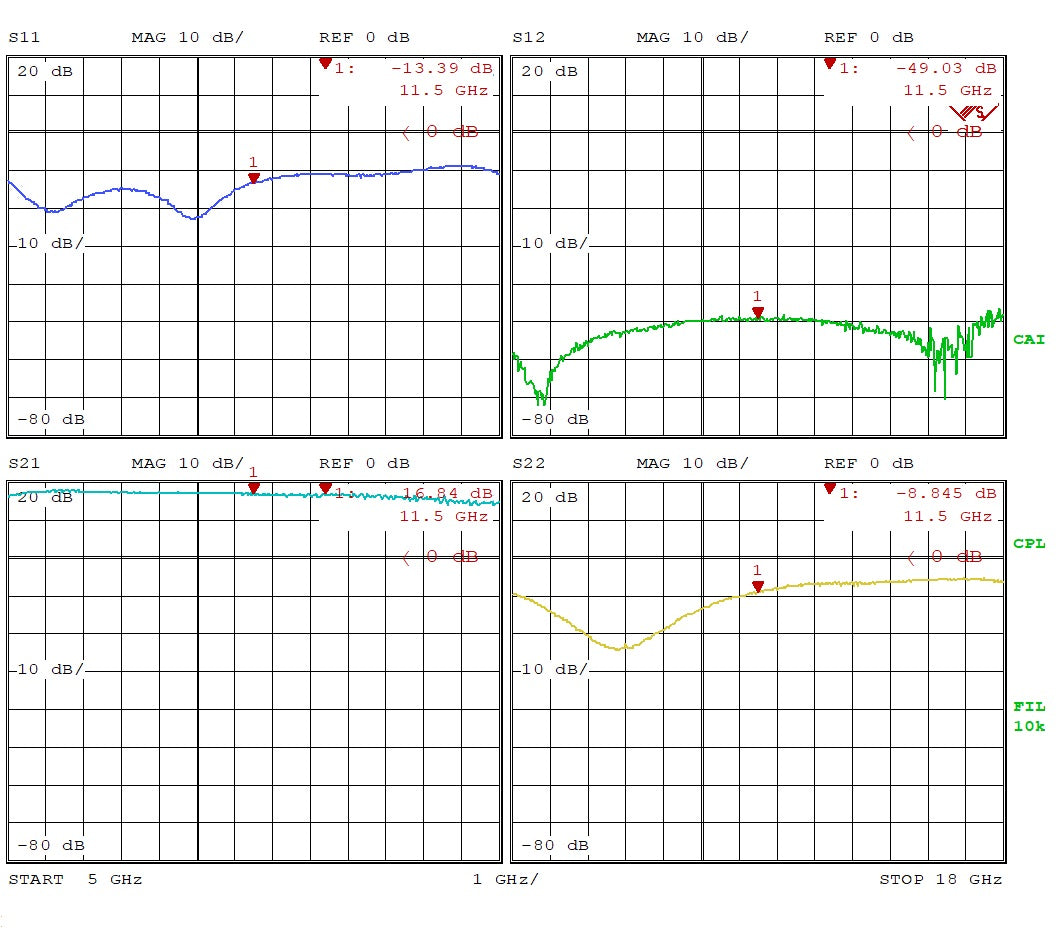

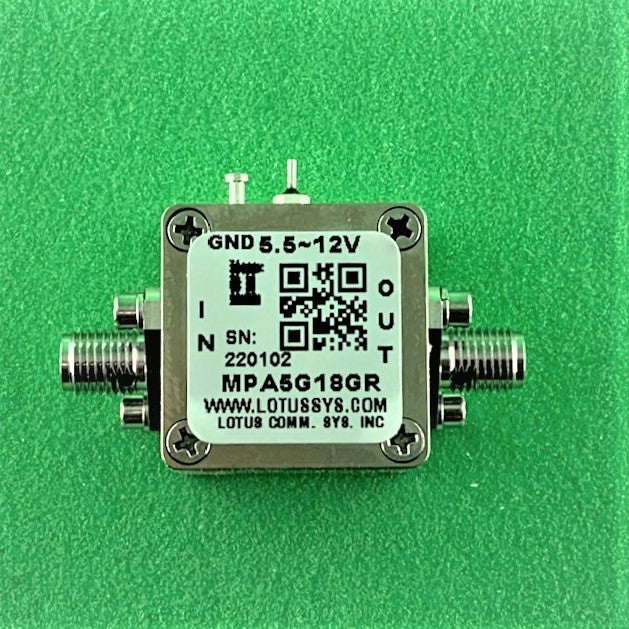

Listed pictures include Product Picture and S Parameter from 5G to 18GHz.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com). SKU#: AK20-020L.
