MPA5G18G

Medium Power Amplifier 7.0dB NF 5GHz to 18GHz 18dB Gain 20dBm P1dB SMA

8 items left

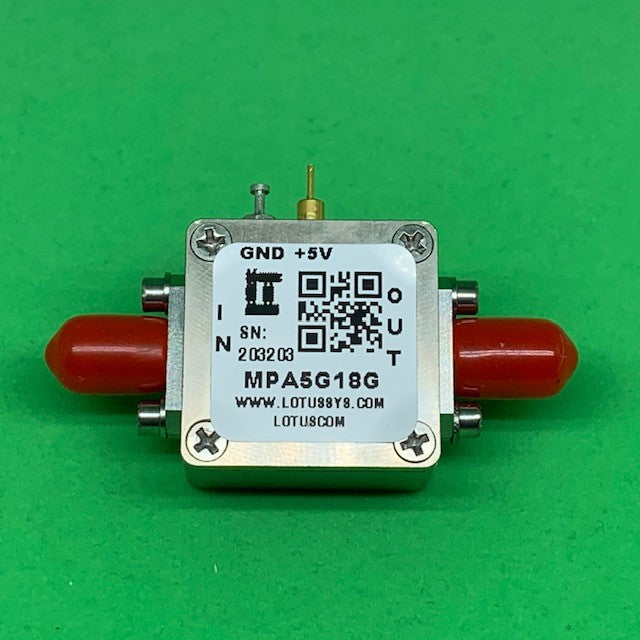

MPA5G18G is a broadband, medium power amplifier with 18 dB typical gain from 5 to 18 GHz in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1A2).  Third order linearity (OIP3) is typically 28 dBm.

SKU#: AK20-001N


Features

  • Frequency Range: 5GHz to 18GHz
  • Noise Figure: typical 7.0dB @ 10 GHz
  • Gain: typical 18 dB @ 10 GHz
  • Output P1dB: 19.5 dBm
  • Output IP3: 28 dBm
  • DC Voltage: +5V
  • Operating Current: 120mA
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Test Instrumentation
  • Wideband A/D System
  • General Purpose Wireless
  • Radar & VSAT
  • SDR & Ham Radio

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MPA5G18G Datasheet
