$ 89.00 USD

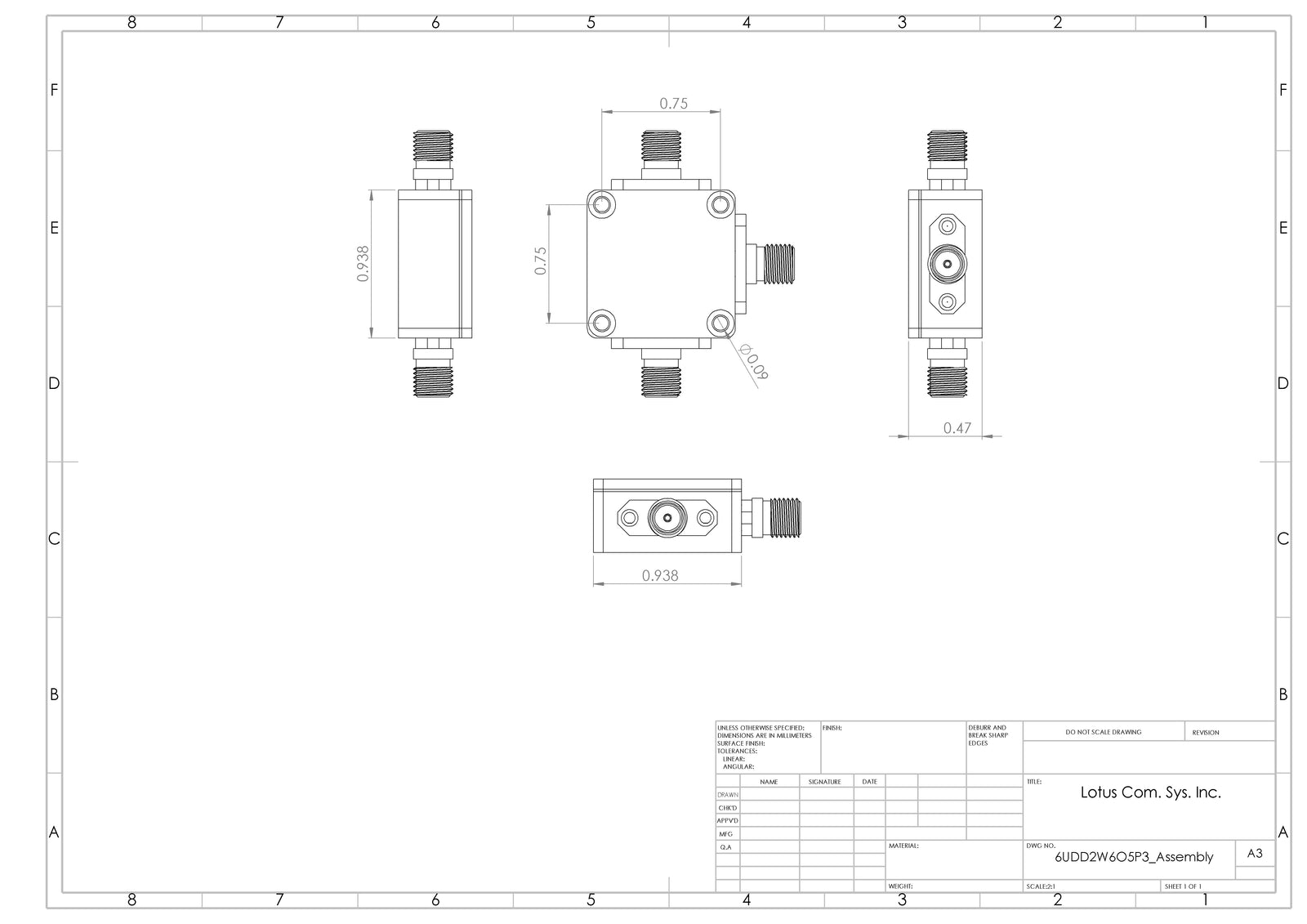

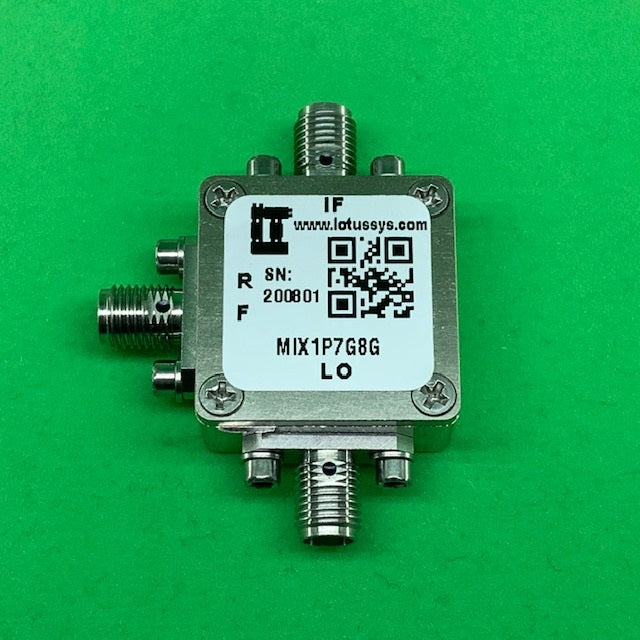

PN#: MIX1P7G8G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (1700 to 8000 MHz) in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6O5P3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 3GHz). It can be used for up and down converter.

SKU#: AK20-001D.

Collections: Frequency Mixers

Features

Frequency Range: 1700 MHz to 8000 MHz
Low insertion loos, 6.0 dB typ.
LTCC double balanced mixer
Useable as up and down converter
High Quality Rogers RO4350 RF PCB
ROHS Compliant
Operating Temp. (-40°C to 85°C)
Storage Temp. (-55°C to 100°C)
Maximum RF Power 50mW

Applications

Satellite up/down converter
Mobile Infrastructure
VSAT/ISM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

Resources

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

MIX1P7G8G Datasheet
