LOTUS COMMUNICATION SYSTEMS, INC.

Frequency Mixer 1.7G - 8GHz RF and DC - 3G IF (Passive)

1 item left

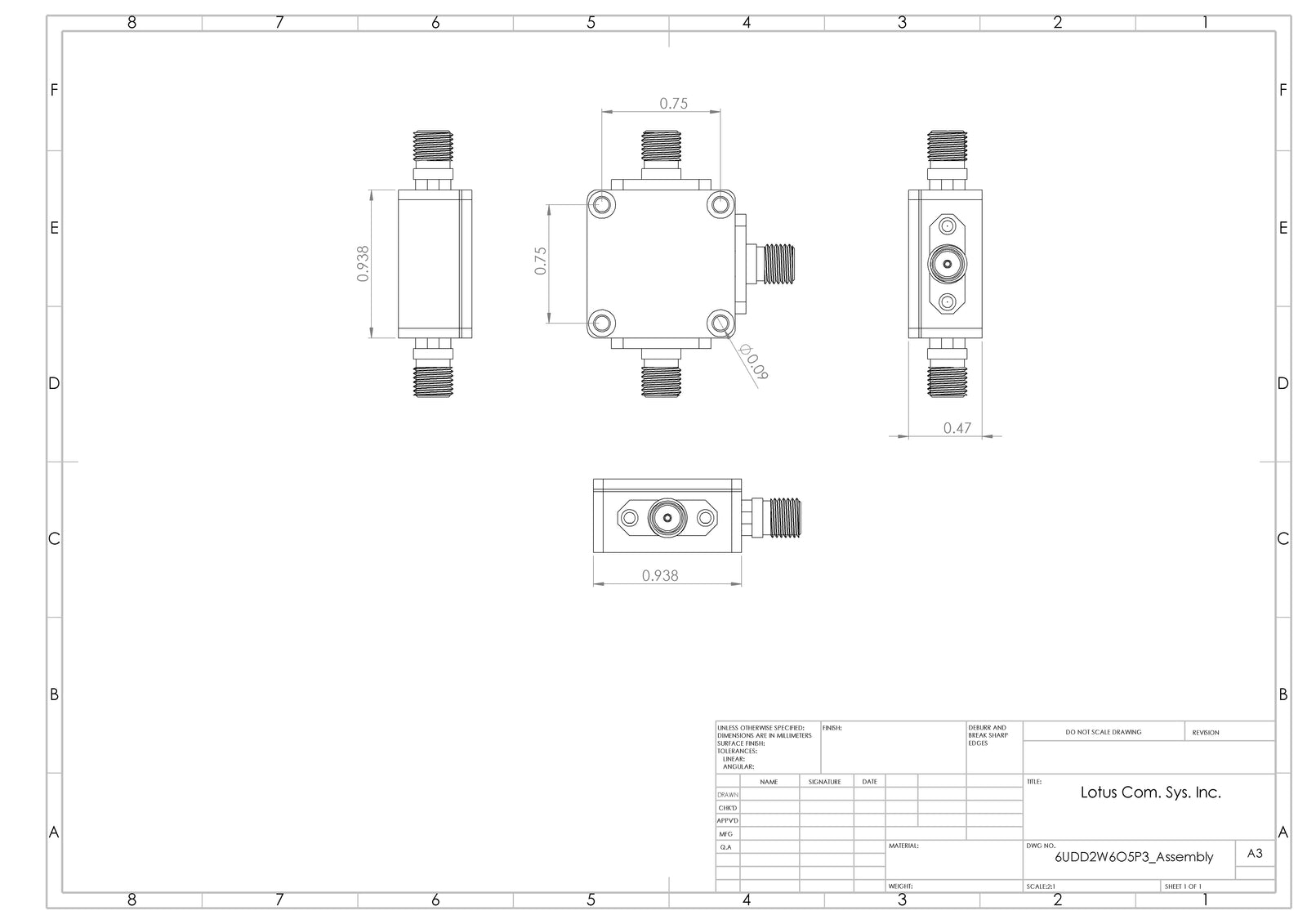

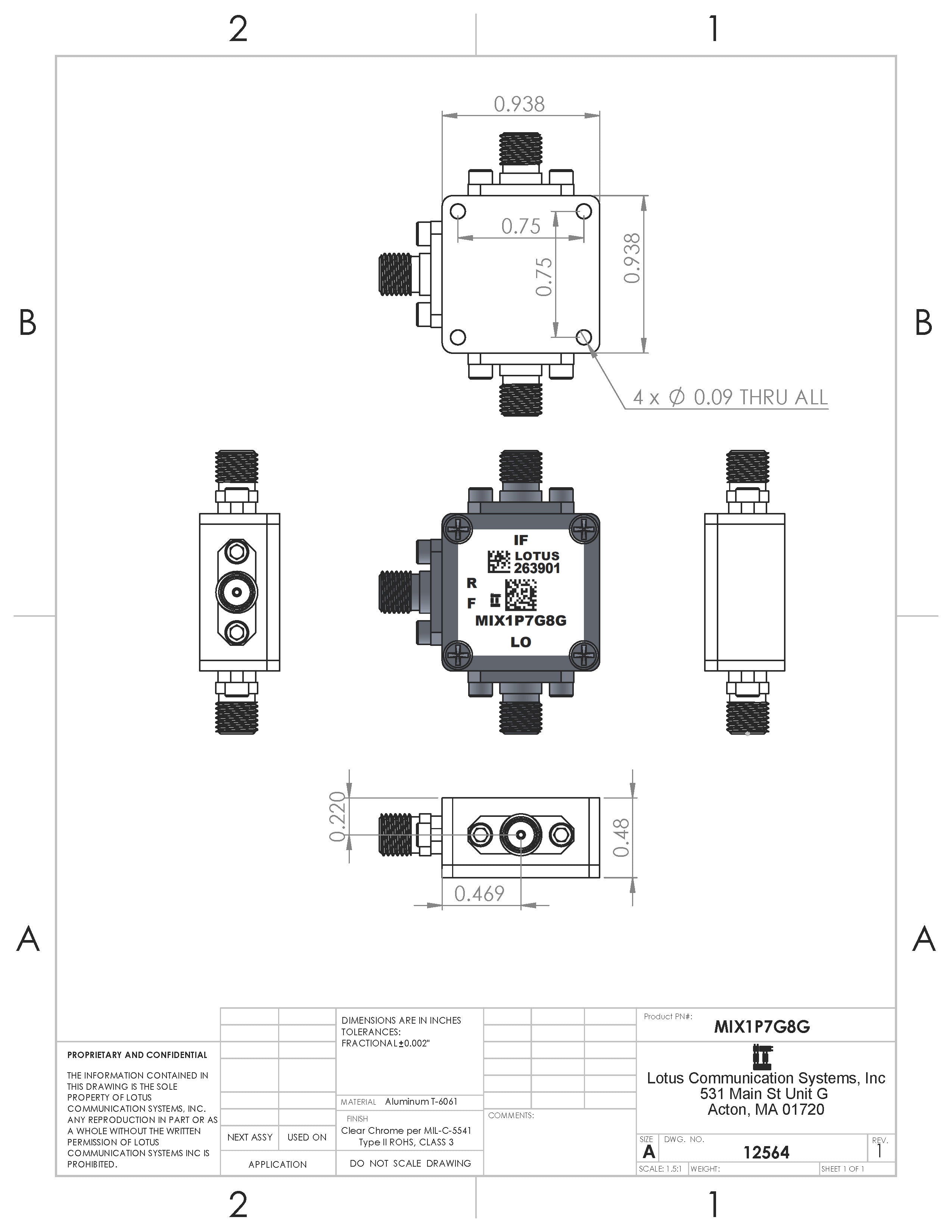

MIX1P7G8G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (1700 to 8000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 3GHz). It can be used for up and down converter.

Features:
    * Frequency Range: 2600 MHz to 8000 MHz;
    * Low insertion loos, 6.0 dB typ.
    * LTCC double balanced mixer
    * Useable as up and down converter
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant
    * Operating Temp. (-40oC to 85oC)
    * Storage Temp. (-55oC to 100oC)
    * Maximum RF Power 50mW

Applications:
    * Satellite up/down converter
    * Mobile Infrastructure
    * VSAT/ISM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

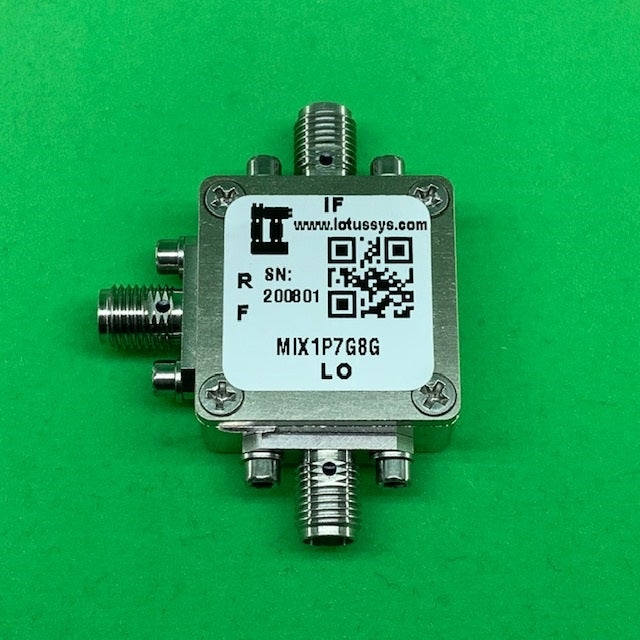

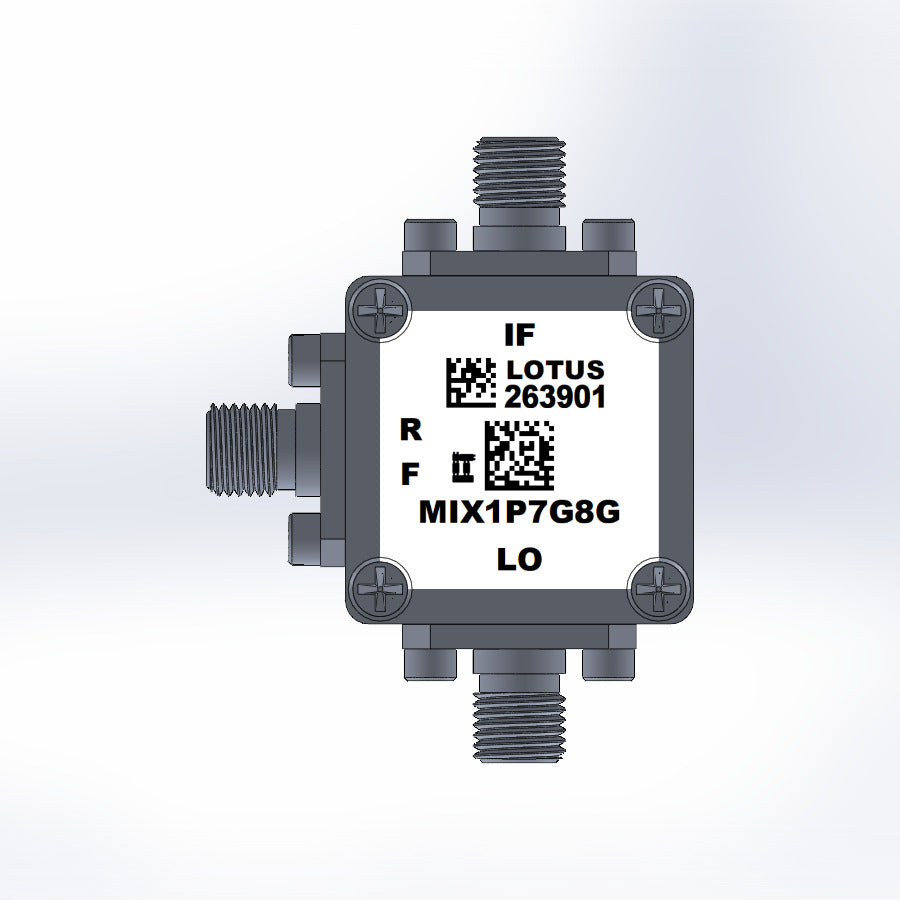

This Mixer includes the RF Enclosure as shown in picture.

Click https://cdn.shopify.com/s/files/1/1592/7469/files/MIX1P7G8G.pdf to see detailed specification.

Proudly MADE IN USA.
