AK16-001I

Frequency Mixer 750M - 4.2GHz RF and DC - 1.5G IF (Passive)

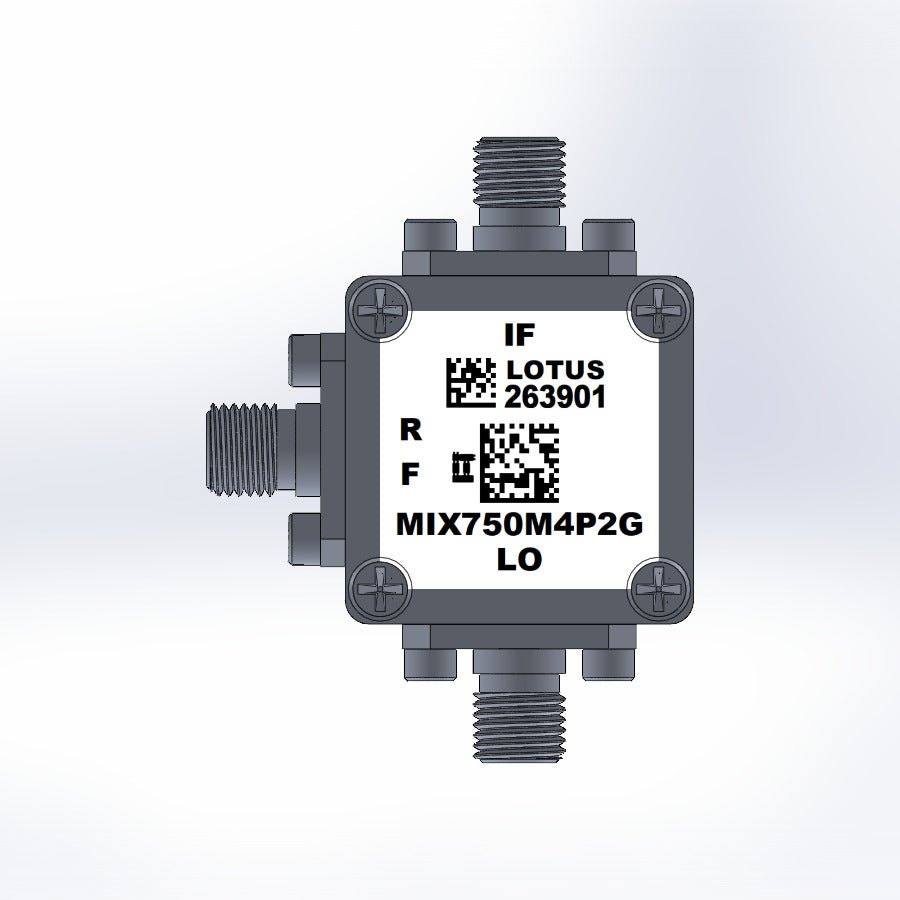

MIX750M4P2G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (750 to 4200 MHz)

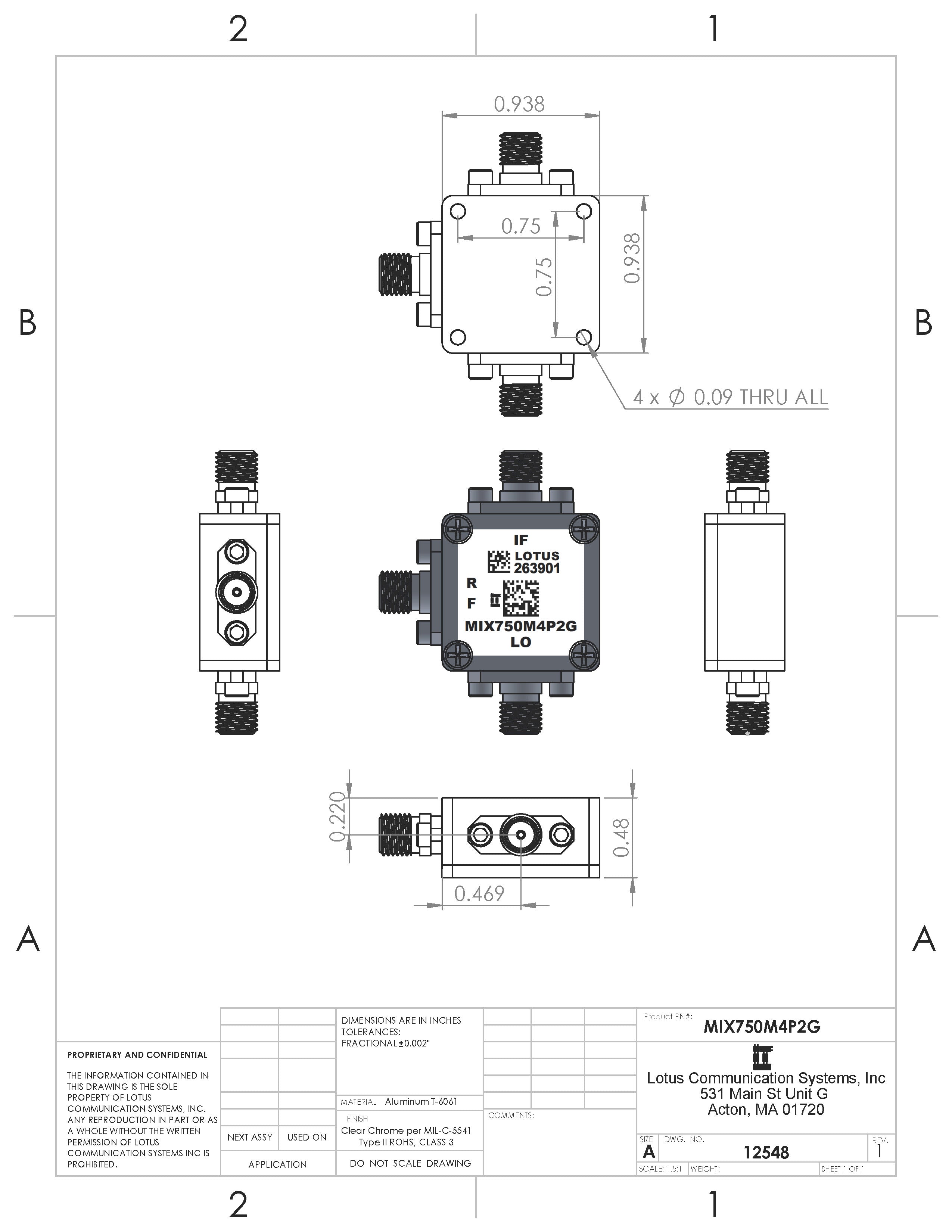

It is in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.1dB typ.) and excellent IF BW (DC to 1.5GHz). It can be used for up and down converter.
Proudly MADE IN USA.

SKU#: AK20_001F


Features

  • Frequency Range: 750 MHz to 4200 MHz
  • Low insertion loos, 6.1 dB typ
  • LTCC double balanced mixer
  • Useable as up and down converter
  • High Quality Isola-Tera RF PCB
  • (very low loss and high thermal performance)
  • ROHS Compliant
  • Operating Temp. (-40C to 85C)
  • Storage Temp. (-55C to 100C)
  • Maximum RF Power 50mW

Applications

  • Satellite up/down converter
  • Mobile Infrastructure
  • VSAT/ISM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation
