MIX3G20G5M3G

Frequency Mixer 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)

4 items left

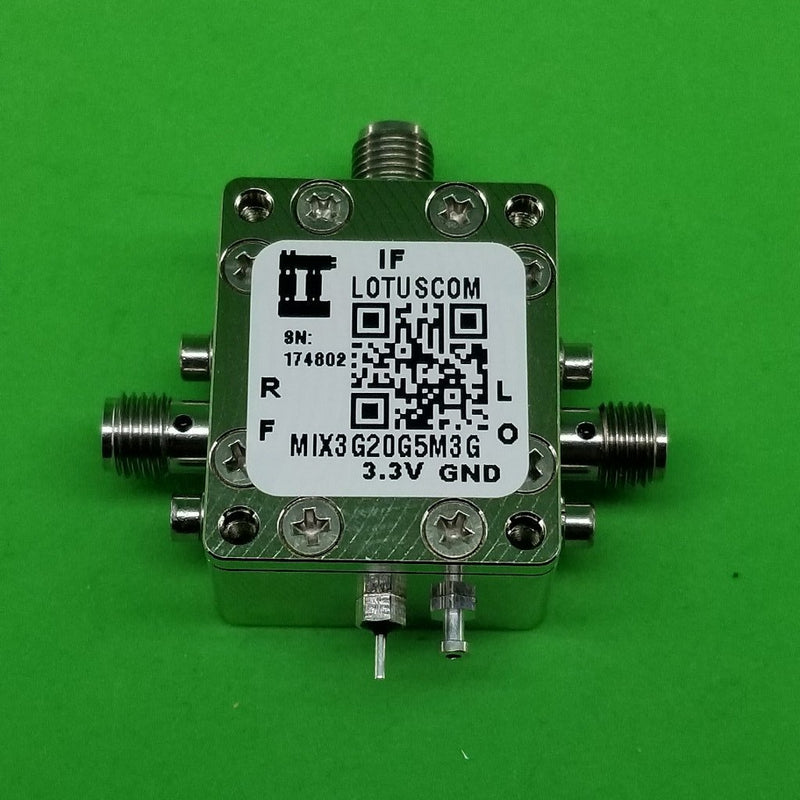

MIX3G20G5M3G microwave mixer. RF input from 3G-20G. It uses LTC5552 and Minicircuits TC1-1-13M+ Balun for 4.5M-3G IF output.

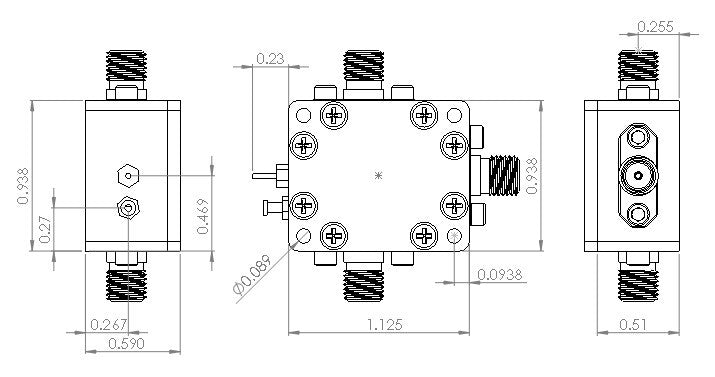

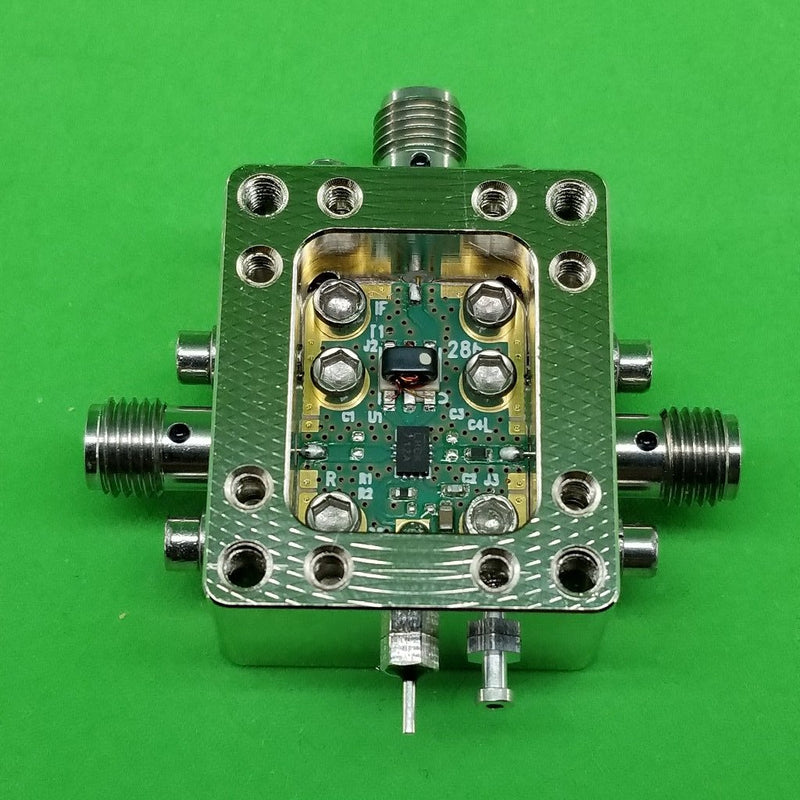

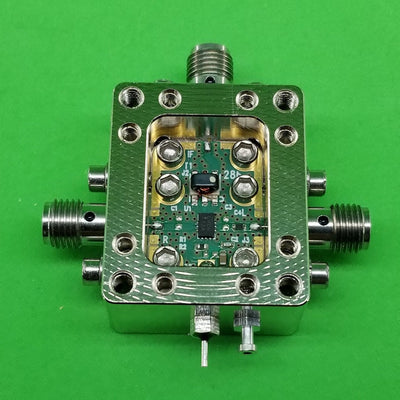

Enclosure is using RF Design Kit 6UDE2W6S1A3 with dimension 1.125"x0.9375x0.59". PCB Size is 0.75"x0.5625"x0.020" (DC).
SKU#: AK20_001G.


Features

  • Up-conversion or Down-conversion
  • High IIP3: +22.5dBm at 10GHz & +18.3dBm at 17GHz
  • 8dB Conversion Loss at 10GHz
  • +14.6dBm Input P1dB at 10GHz
  • Integrated LO Buffer: -6 to 6 dBm LO Drive
  • Low LO-RF Leakage: <-24dBm
  • 3.3V/132mA Supply
  • Use LTC5552 Part and Mini-circuits TC1-1-13M+ Balun
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Transceivers/Point-to-Point Microwave
  • Test Instrument
  • Satellite MODEMs
  • C, X and Ku Band RADAR
  • Phased-Array Antennas
  • Software Defined Radio/Ham Radio

Resources

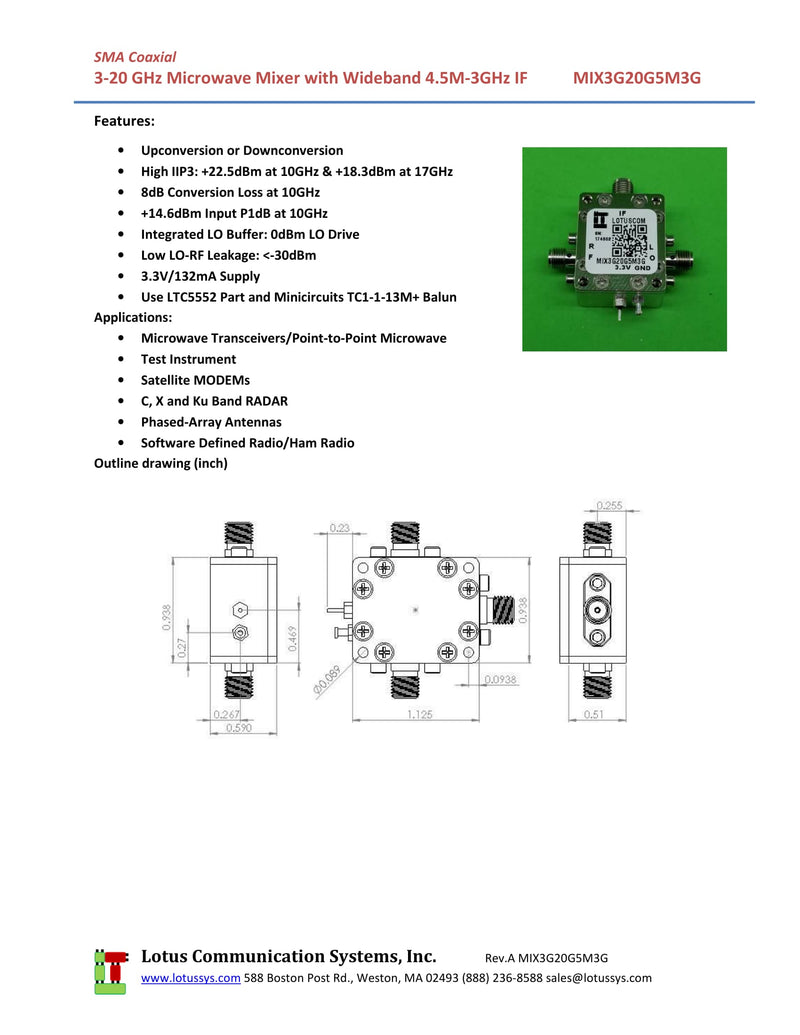

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX3G20G5M3G Datasheet
