MIX3P2G15G

Frequency Mixer 3.2G - 15GHz RF and DC - 4G IF (Passive)

1 item left

MIX3P2G15G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (3200 to 15000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.1dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter.

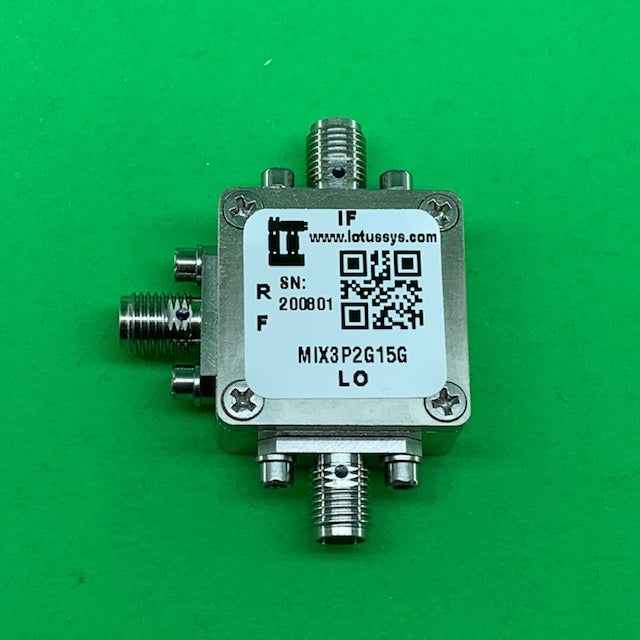

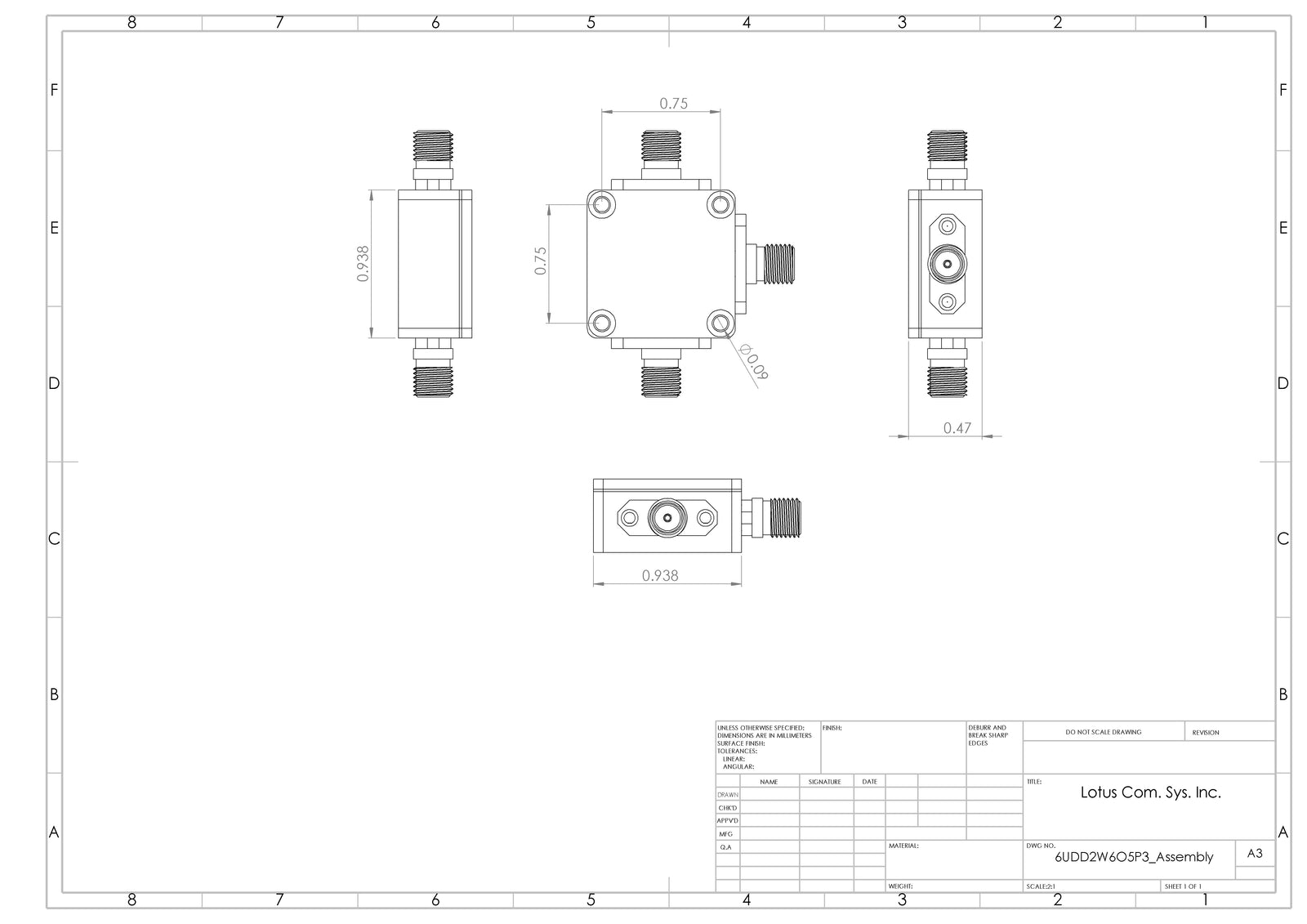

This Mixer includes the RF Enclosure as shown in picture. SKU#: AK20_001E.

Proudly Made in USA by Lotus Communication Systems, INC. in Weston, MA.


Features

  • Frequency Range: 3200 MHz to 15000 MHz
  • Low insertion loos, 6.1 dB typ.
  • LTCC double balanced mixer
  • Usable as up and down converter
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant
  • Operating Temp. (-40C to 85C)
  • Storage Temp. (-55C to 100C)
  • Maximum RF Power 50mW

Applications

  • Satellite up/down converter
  • Mobile Infrastructure
  • VSAT/ISM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation
