Passive Frequency Mixer (MIX3P7G10G) 3.7G - 10GHz RF and DC - 4G IF

5 items left

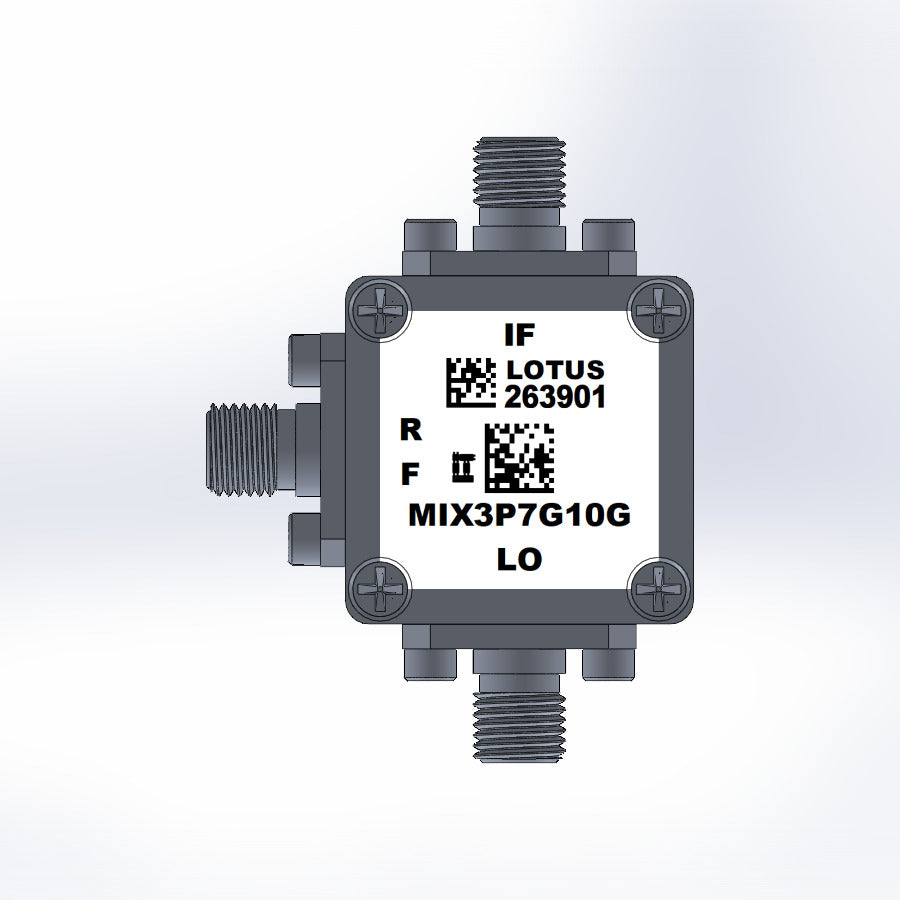

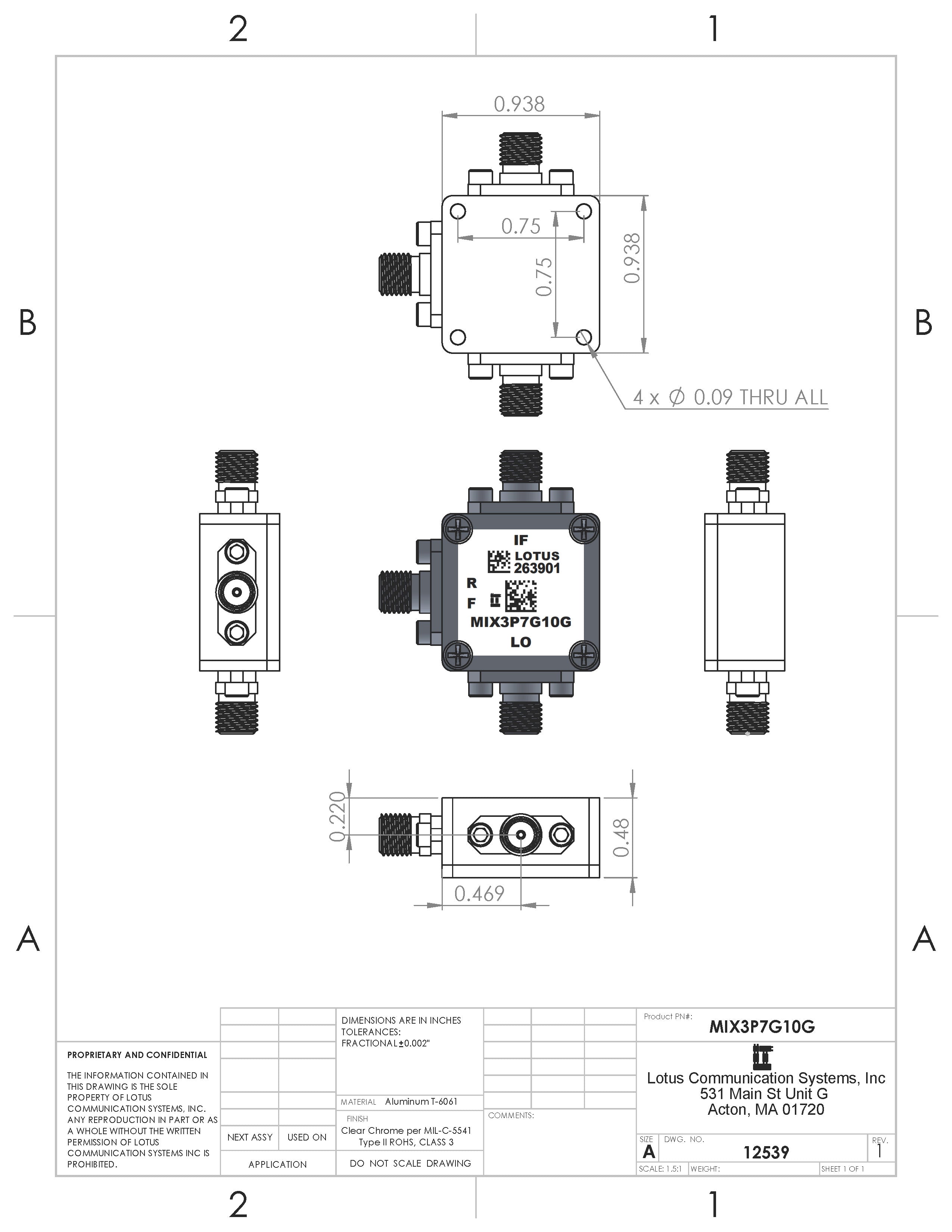

MIX3P7G10G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (3700 to 10000 MHz) in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAP3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter.

SKU#: AK20-001E


  • Frequency Range: 3700 MHz to 10000 MHz
  • Low insertion loos, 6.0 dB typ.
  • LTCC double balanced mixer
  • Usable as up and down converter
  • Operating Temp. (-40°C to 85°C)
  • Storage Temp. (-55°C to 100°C)
  • Maximum RF Power 50mW
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant


  • Satellite up/down converter
  • Mobile Infrastructure
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

Resources (PDF Datasheet) MIX3P7G10G Datasheet
