Passive Frequency Mixer (MIX3G10G4G) 3G - 10GHz RF and DC - 4G IF
$ 328.00 USD

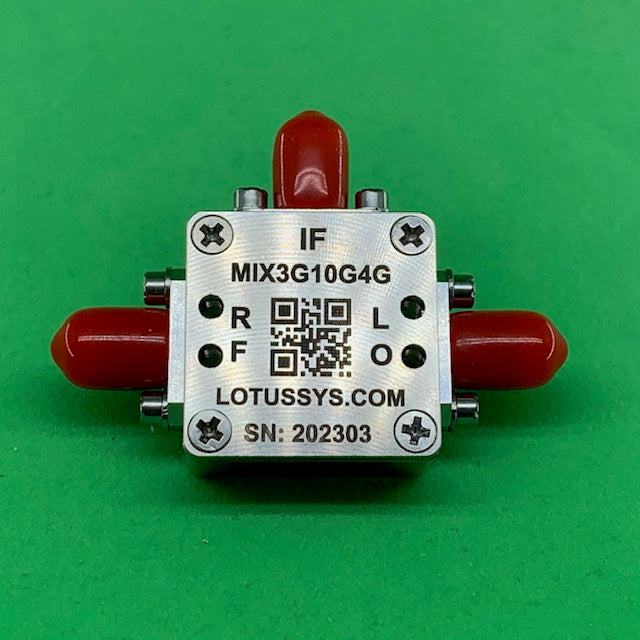

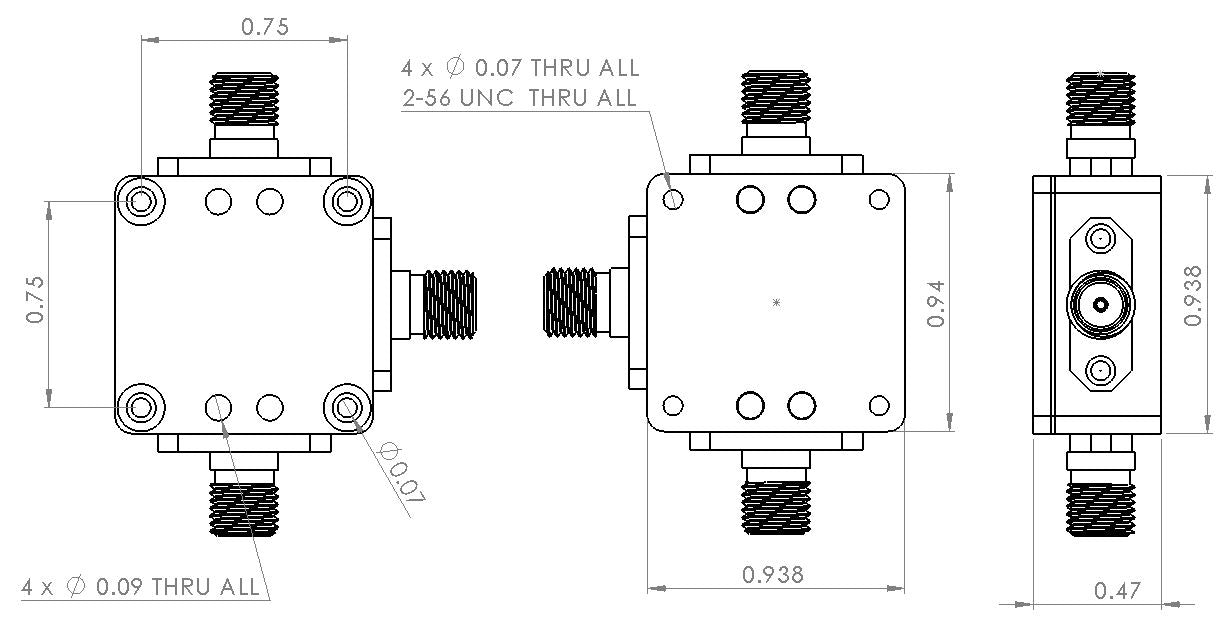

MIX3G10G4G is a Level 17 (LO Power +17 dBm) passive wide band frequency mixer (3 GHz to 10 GHz) in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6S1P3). It has conversion loss (9dB typ. at 3GHz to 9 GHz) and excellent IF BW (DC to 4GHz). It can be used for up and down converter. This mixer provides excellent local oscillator (LO) to radio frequency (RF) and LO to intermediate frequency (IF) isolation due to optimized balun structures. SKU#: AK20-005D.
Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts.
Features
- Frequency Range: 3 GHz to 10 GHz
- Conversion loss, 9 dB typ. at 3 GHz to 9 GHz
- Passive double balanced mixer
- Usable as up and down converter
- Operating Temp. (-40°C to 85°C)
- Maximum RF Power 28 dBm
- Stainless Steel SMA Female Connector
- High Quality Rogers RO4350 RF PCB
- Use ADI Mixer Part HMC787ALC3B
- ROHS Compliant
Applications
- Satellite up/down converter
- Mobile Infrastructure
- VSAT/ISM
- General Purpose Wireless
- SDR & Ham Radio
- Test Instrumentation
Resources (PDF Datasheet)
MIX3G10G4G Datasheet
