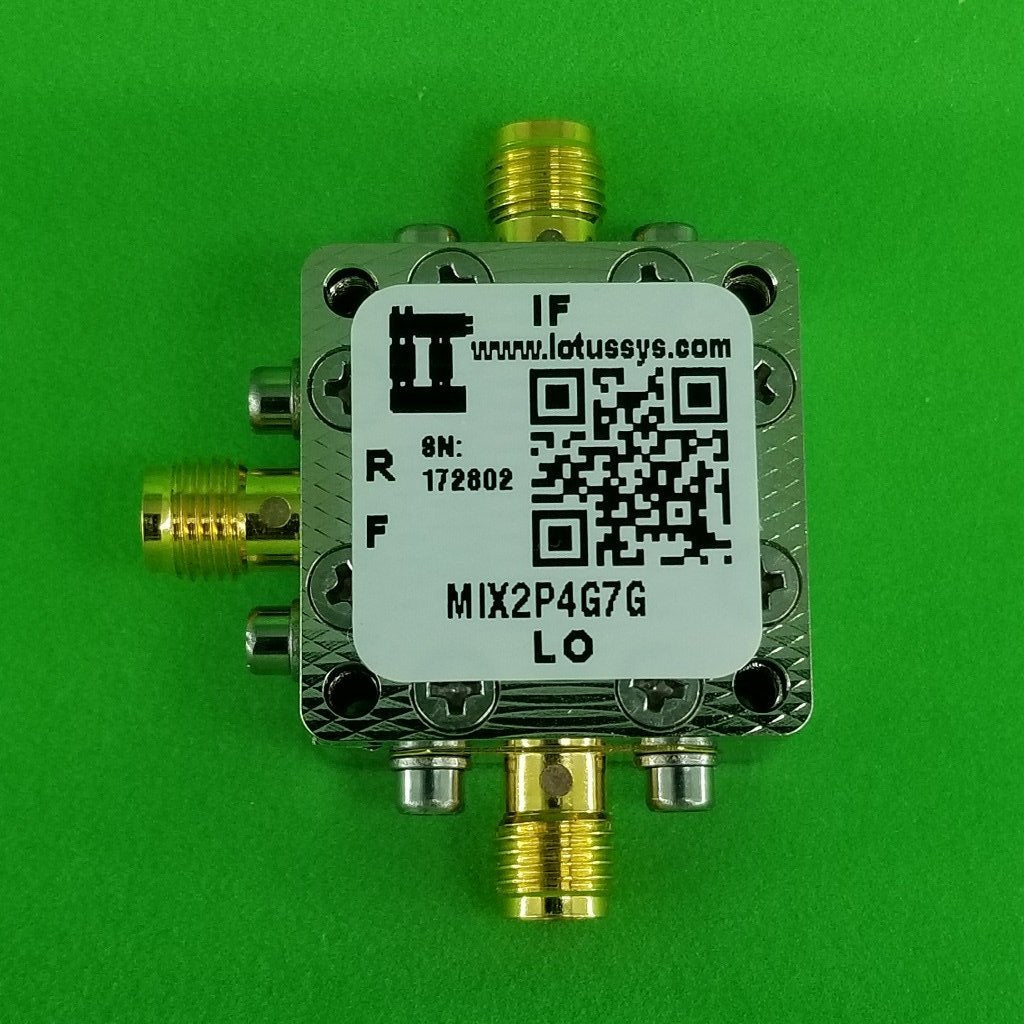

  • Passive Frequency Mixer (MIX2P4G7G) 2.4G - 7GHz RF and DC - 3G IF

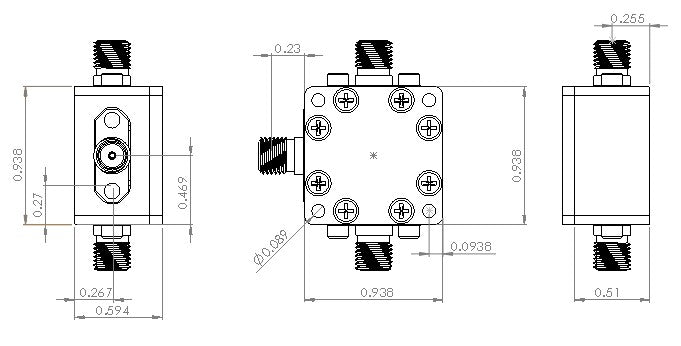

    Part Number: MIX2P4G7G is a Level 4 (LO Power +4 dBm) passive wide band frequency mixer (2400 to 7000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.2dB typ.) and excellent IF BW (DC to 3GHz). It can be used for up and down converter. SKU#: AK20-001F.

    Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

    Features

    • Frequency Range: 2400 MHz to 7000 MHz
    • Low insertion loos, 6.2 dB typ.
    • LTCC double balanced mixer
    • Usable as up and down converter
    • ROHS Compliant
    • Operating Temp. (-40C to 85C)
    • Storage Temp. (-55C to 100C)
    • Maximum RF Power 50mW
    • Stainless Steel SMA Female Connector
    • High Quality Rogers RO4350 RF PCB
    • ROHS Compliant

    Applications

    • Satellite up/down converter
    • Mobile Infrastructure
    • VSAT/ISM
    • General Purpose Wireless
    • SDR & Ham Radio
    • Test Instrumentation

    Resources (PDF Datasheet)

    http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX2P4G7G Datasheet
