Frequency Mixer 750M - 4.2GHz RF and DC - 1.5G IF (Passive)

1 item left

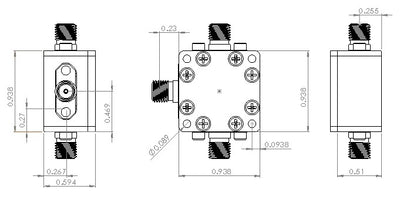

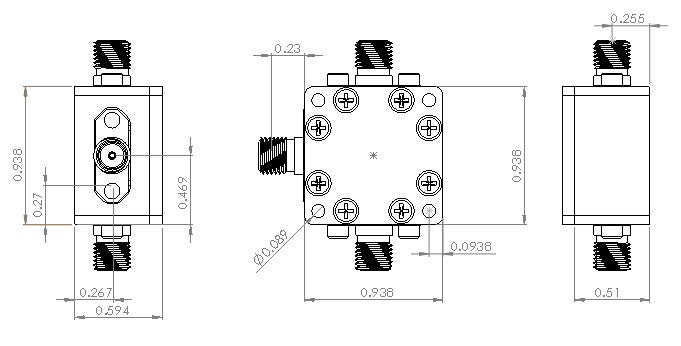

MIX750M4P2G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (750 to 4200 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.1dB typ.) and excellent IF BW (DC to 1.5GHz). It can be used for up and down converter.

    * Frequency Range: 750 MHz to 4200 MHz;
    * Low insertion loos, 6.1 dB typ.
    * LTCC double balanced mixer
    * Useable as up and down converter
    * High Quality Isola-Tera RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant
    * Operating Temp. (-40C to 85C)
    * Storage Temp. (-55C to 100C)
    * Maximum RF Power 50mW

    * Satellite up/down converter
    * Mobile Infrastructure
    * VSAT/ISM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

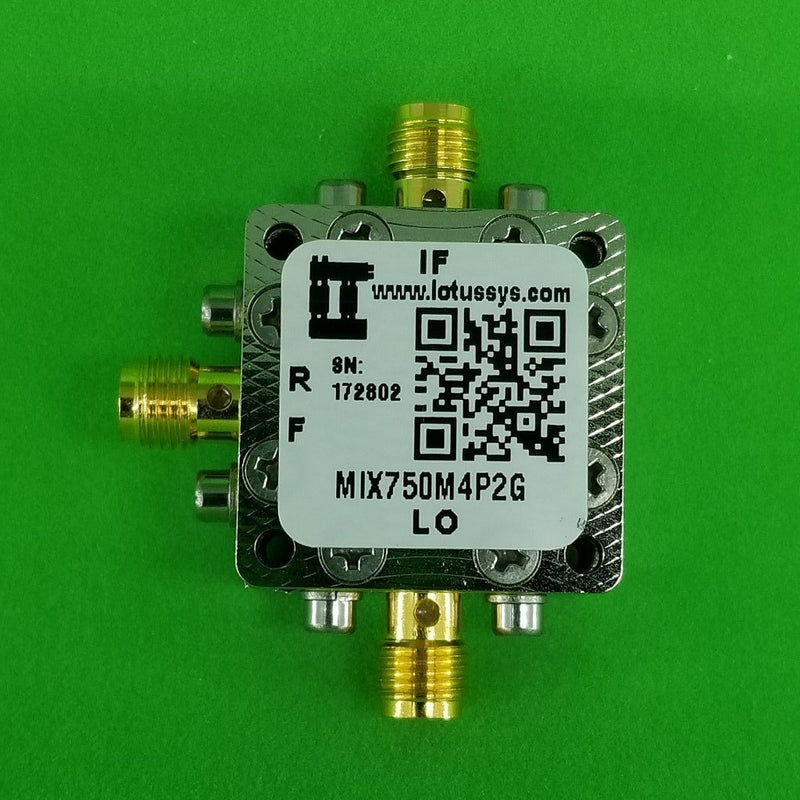

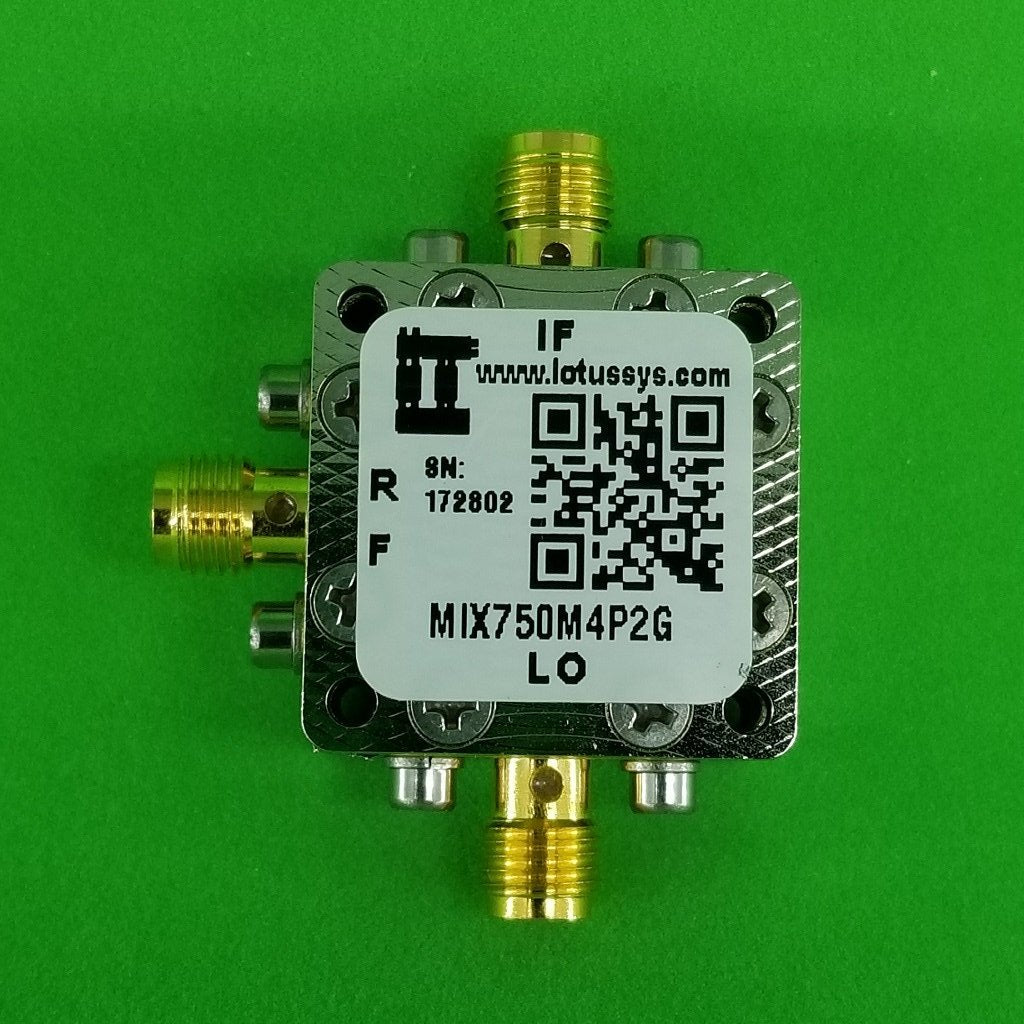

This Mixer includes the RF Enclosure as shown in picture.

Click to see detailed specification.

Proudly MADE IN USA.
