Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)
Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)
Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)
Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)
Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)
Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)

Active Frequency Mixer (MIX2G14G500M6G) 2GHz to 14GHz RF and 500M - 6G IF (LTC5549)

$ 199.00 USD

27 items left

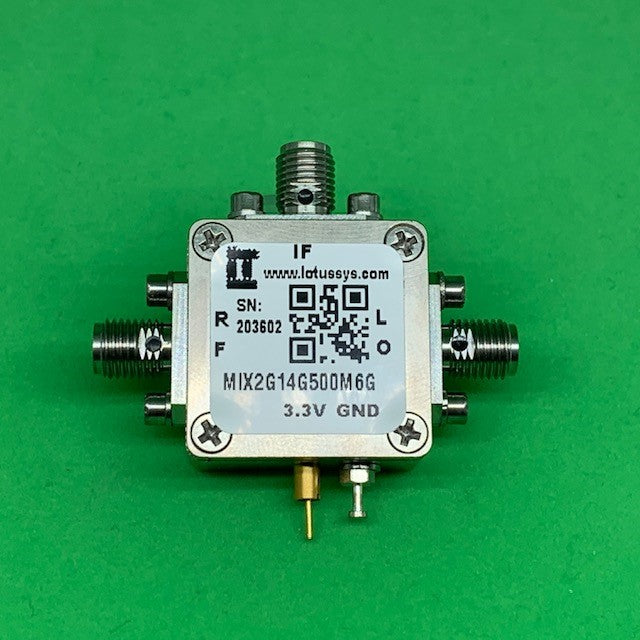

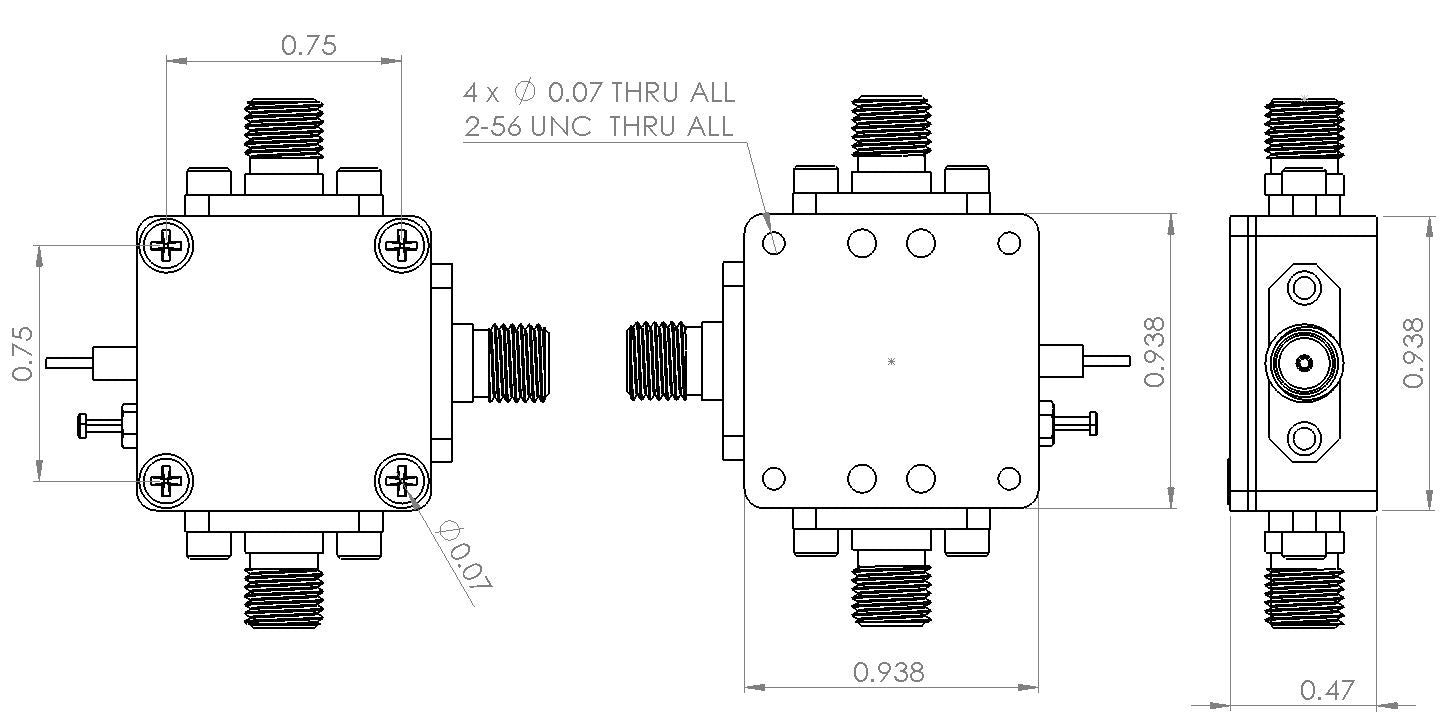

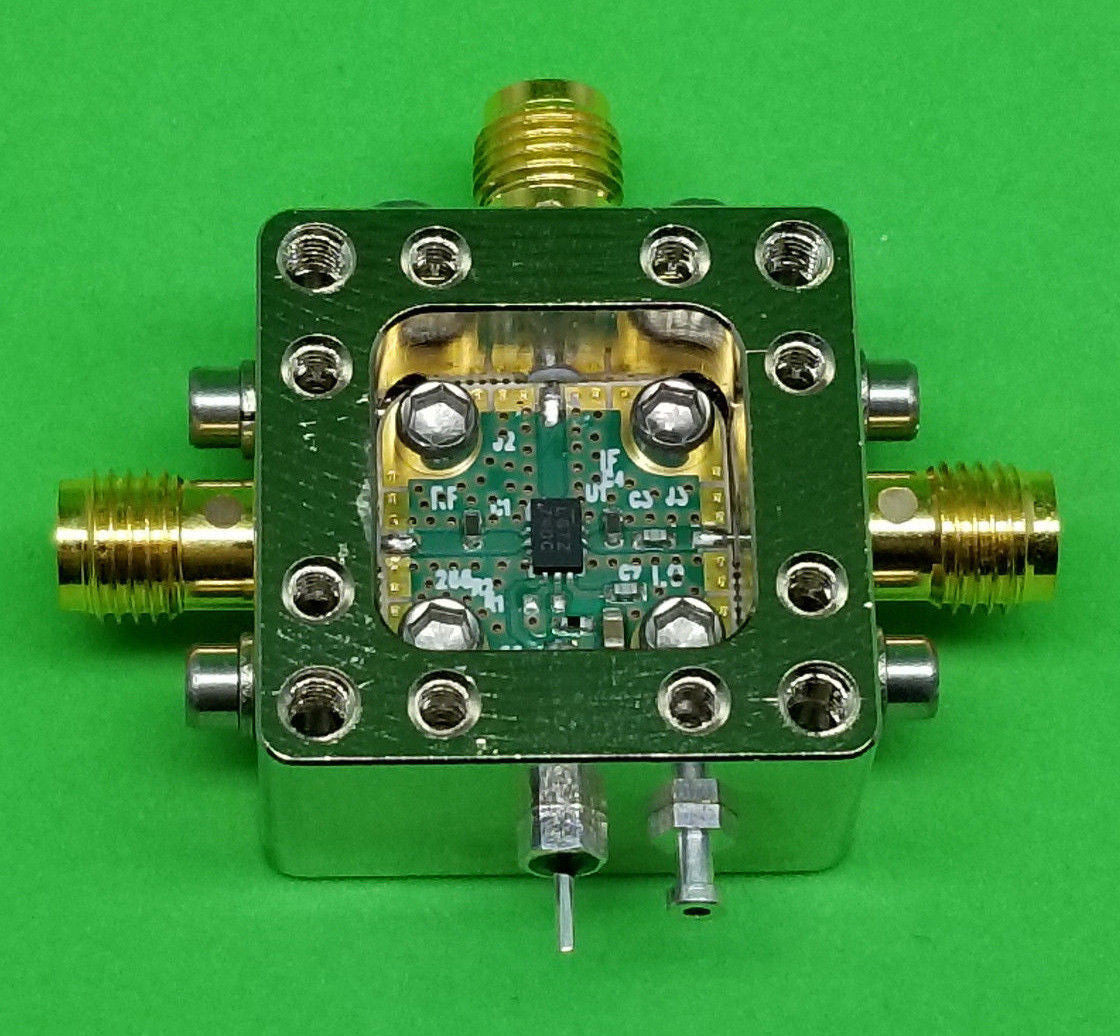

Part Number: MIX2G14G500M6G is a microwave mixer.  RF input from 2G-14G.  It uses LTC5549 for 500M-6G IF output. SKU#: AK20-001D.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Frequency Mixers


Features

  • Up-conversion or Down-conversion
  • High IIP3: +28.2dBm at 5.8GHz & +22.8dBm at 12GHz
  • 8.0 dB Conversion Loss at 5.8GHz
  • +14.3dBm Input P1dB at 5.8GHz
  • Integrated LO Buffer: 0dBm LO Drive
  • Integrated LO Frequency Doubler
  • Low LO-RF Leakage: <-30dBm
  • 3.3V/115mA Supply
  • Use LTC5549 and LO Frequency Doubler is enabled to reduce LO frequency by half
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Transceivers/Point-to-Point Microwave
  • Test Instrument
  • Satellite MODEMs
  • C, X and Ku Band RADAR
  • Phased-Array Antennas
    • Software Defined Radio/Ham Radio

Resources (PDF Datasheet)
