MIX2G14G5M3G

Frequency Mixer 2GHz to 14GHz RF and 4.5M - 3G IF (LTC5548)

2 items left

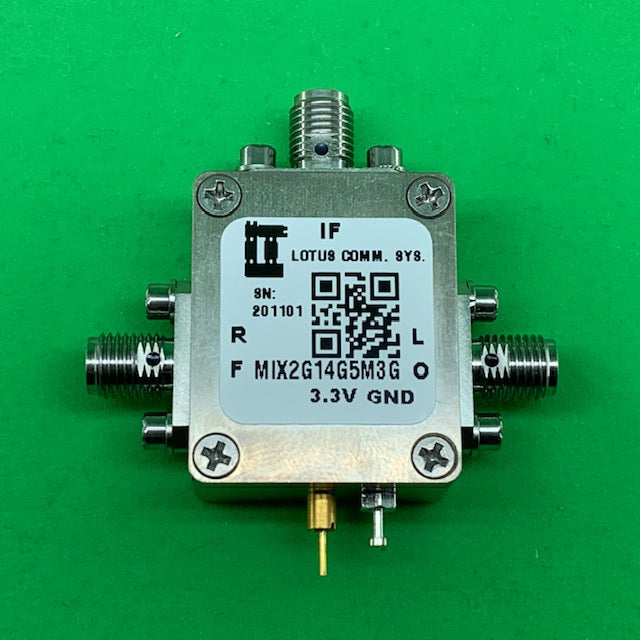

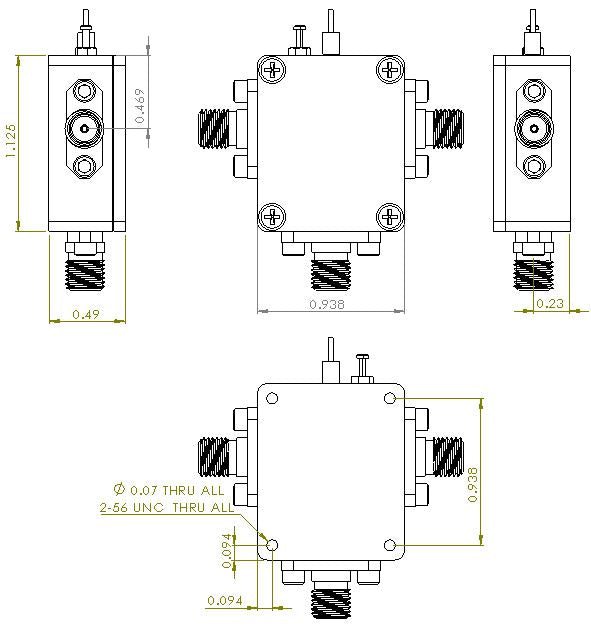

MIX2G14G5M3G microwave mixer. RF input from 2G-14G and IF output 4.5M Hz to 3 GHz.  It uses LTC5548 and Minicircuits TC1-1-13M+ Balun for 4.5M-3G IF output. SKU#: AK20_001G.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Up-conversion or Down-conversion
  • High IIP3: +24.4dBm at 5.8GHz & +21.4dBm at 9GHz
  • 7.1dB Conversion Loss at 5.8GHz
  • +15.2dBm Input P1dB at 5.8GHz
  • Integrated LO Buffer: 0dBm LO Drive
  • Integrated LO Frequency Doubler
  • Low LO-RF Leakage: <-30dBm
  • 3.3V/120mA Supply
  • Use LTC5548 Part and Mini-circuits TC1-1-13M+ Balun
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Transceivers/Point-to-Point Microwave
  • Test Instrument
  • Satellite MODEMs
  • C, X and Ku Band RADAR
  • Phased-Array Antennas
  • Software Defined Radio/Ham Radio

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX2G14G5M3G Datasheet
