Frequency Mixer 750M - 6GHz RF and DC - 1.5G IF (Passive)

1 item left

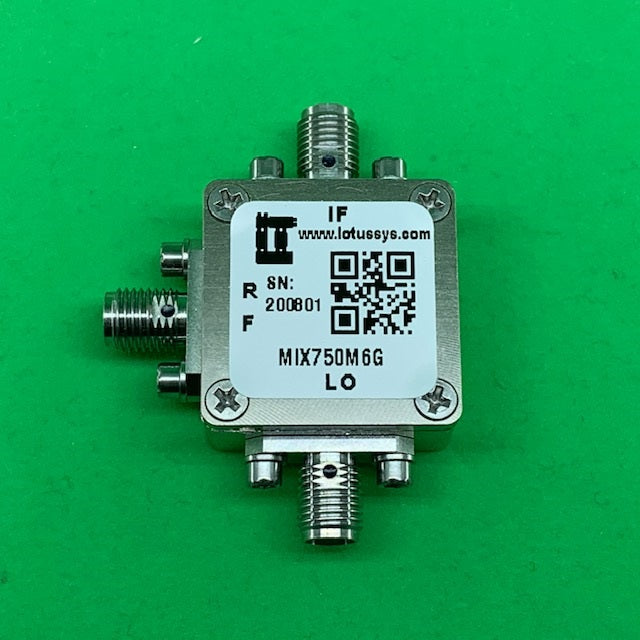

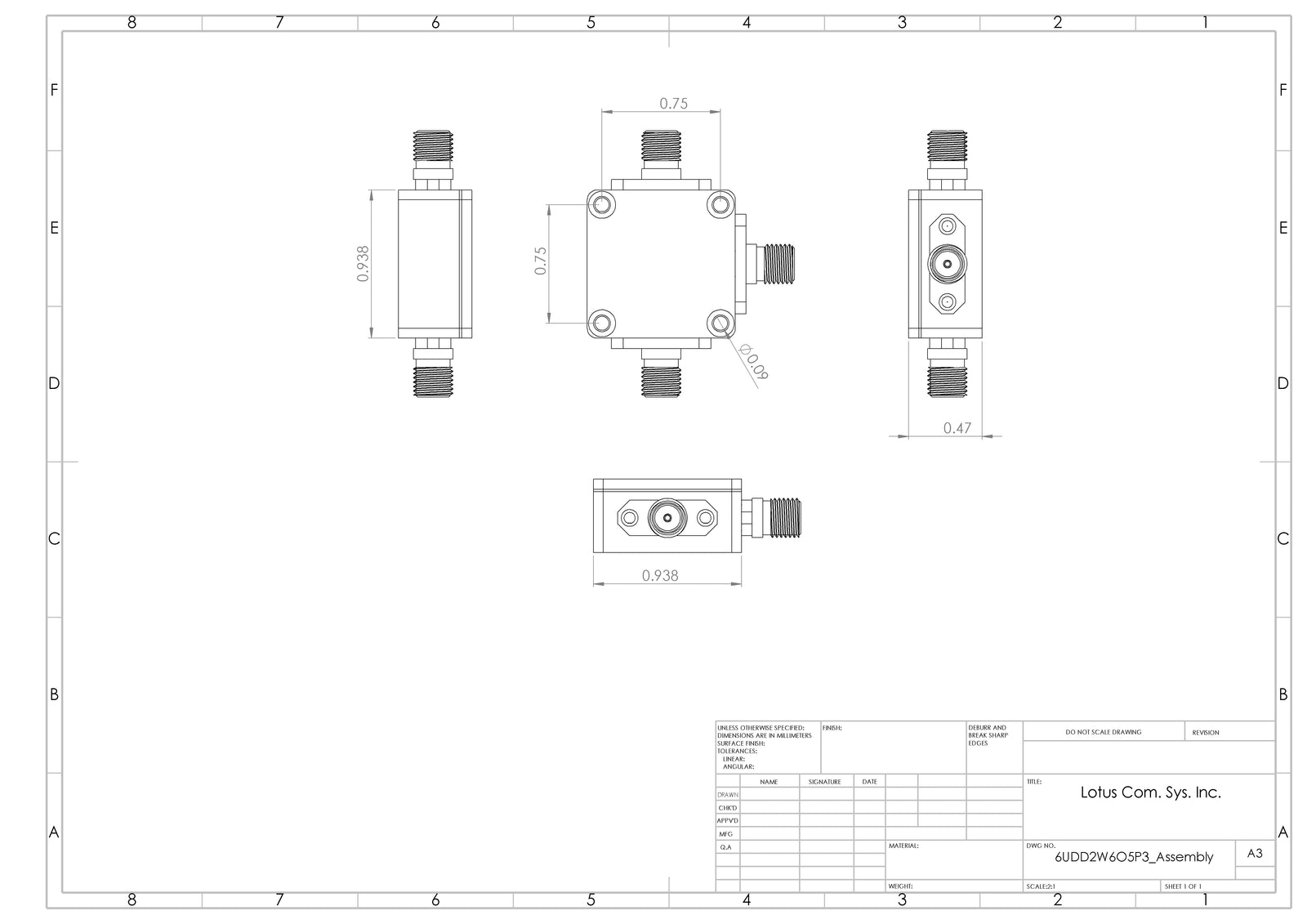

MIX750M6G is a Level 10 (LO Power +10 dBm) passive wide band frequency mixer (750 to 6000 MHz) in a small 15/16”x15/16”x0.59” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.2dB typ.) and excellent IF BW (DC to 1.5GHz). It can be used for up and down converter.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).


Features

  • Frequency Range: 750 MHz to 6000 MHz
  • Low insertion loos, 6.2 dB typ.
  • LTCC double balanced mixer
  • Usable as up and down converter
  • Operating Temp. (-40 to 85C)
  • Storage Temp. (-55 to 100C)
  • Maximum RF Power 50mW
  • Stainless Steel SMA Female Connector
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Satellite up/down converter
  • Mobile Infrastructure
  • VSAT/ISM
  • General Purpose Wireless
  • SDR & Ham Radio
  • Test Instrumentation

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX750M6G Datasheet
