$ 89.00 USD

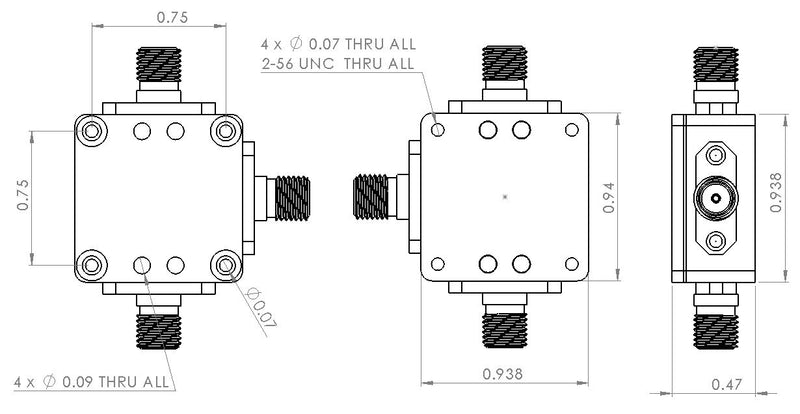

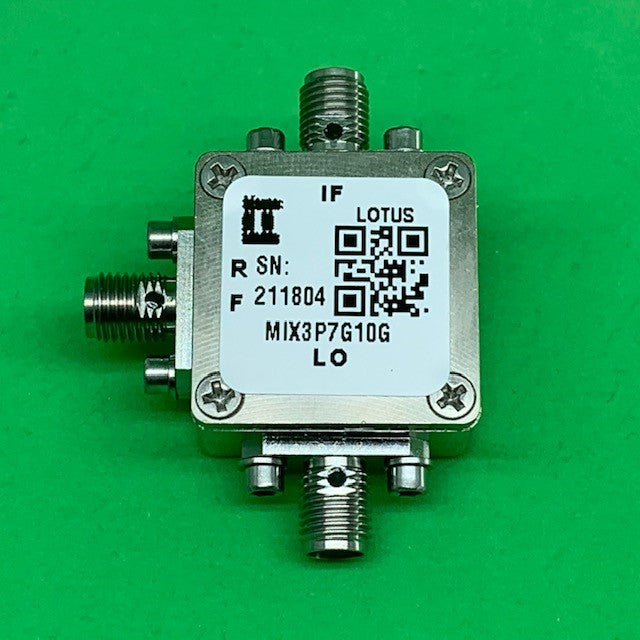

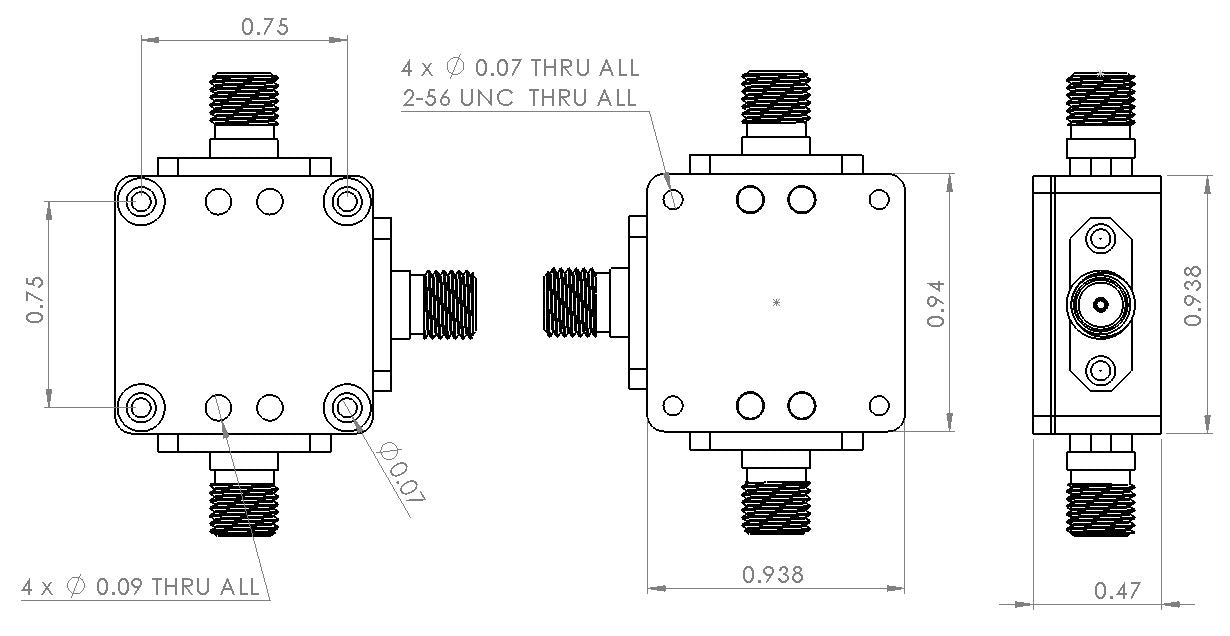

MIX3P7G10G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (3700 to 10000 MHz) in a small 15/16”x15/16”x0.48” shielded RF enclosure (PN: 6UDD2W6H41SMAP3). It has low insertion loss (6.0dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter.

SKU#: AK20-001E

Collections: Frequency Mixers

Features

Frequency Range: 3700 MHz to 10000 MHz
Low insertion loos, 6.0 dB typ.
LTCC double balanced mixer
Usable as up and down converter
Operating Temp. (-40°C to 85°C)
Storage Temp. (-55°C to 100°C)
Maximum RF Power 50mW
Stainless Steel SMA Female Connector
High Quality Rogers RO4350 RF PCB
ROHS Compliant

Applications

Satellite up/down converter
Mobile Infrastructure
VSAT/ISM
General Purpose Wireless
SDR & Ham Radio
Test Instrumentation

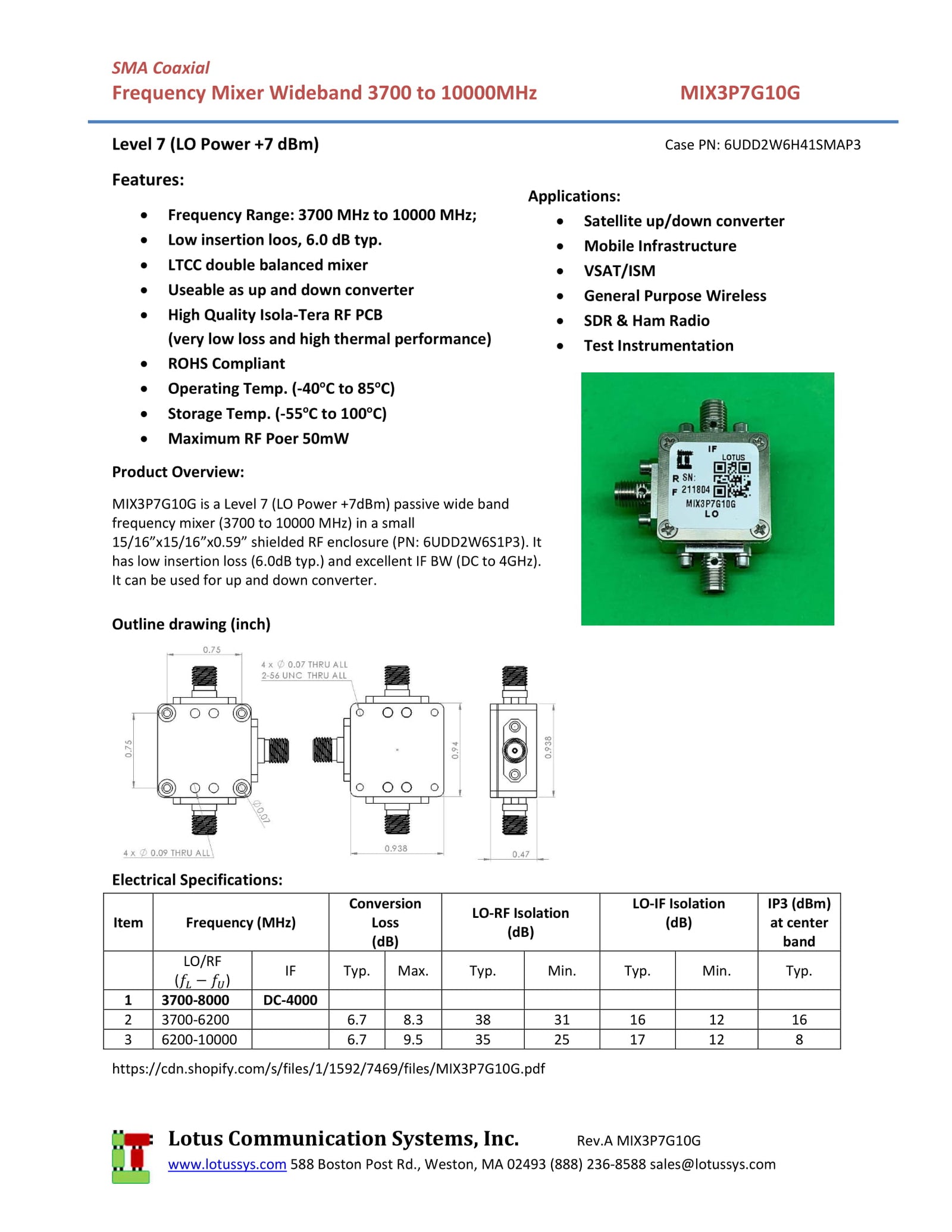

Resources (PDF Datasheet)

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png

MIX3P7G10G Datasheet
