Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)
Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)

Active Frequency Mixer (MIX3G20G5M3G) 3GHz to 20GHz RF and 4.5M - 3G IF (LTC5552)

$ 299.20 USD

4 items left

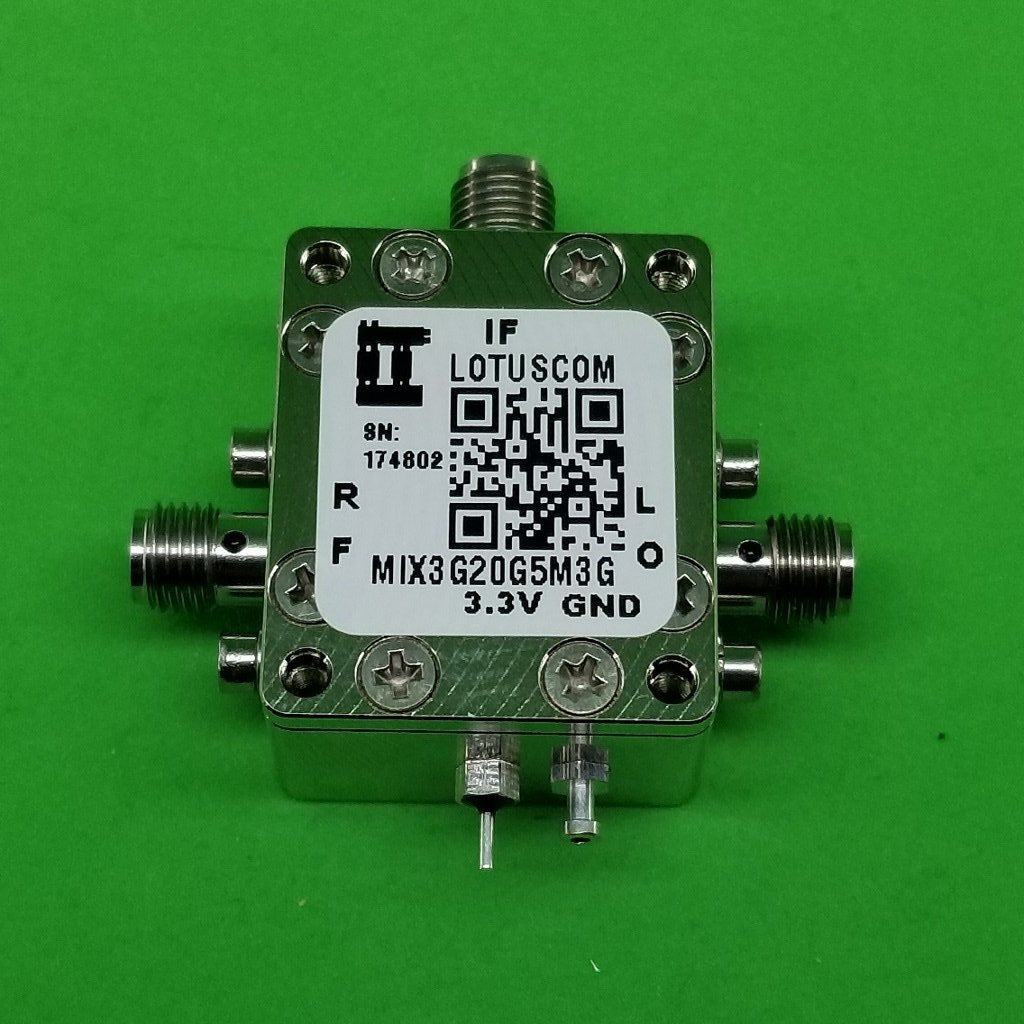

MIX3G20G5M3G microwave mixer. RF input from 3G-20G. It uses LTC5552 and Minicircuits TC1-1-13M+ Balun for 4.5M-3G IF output.

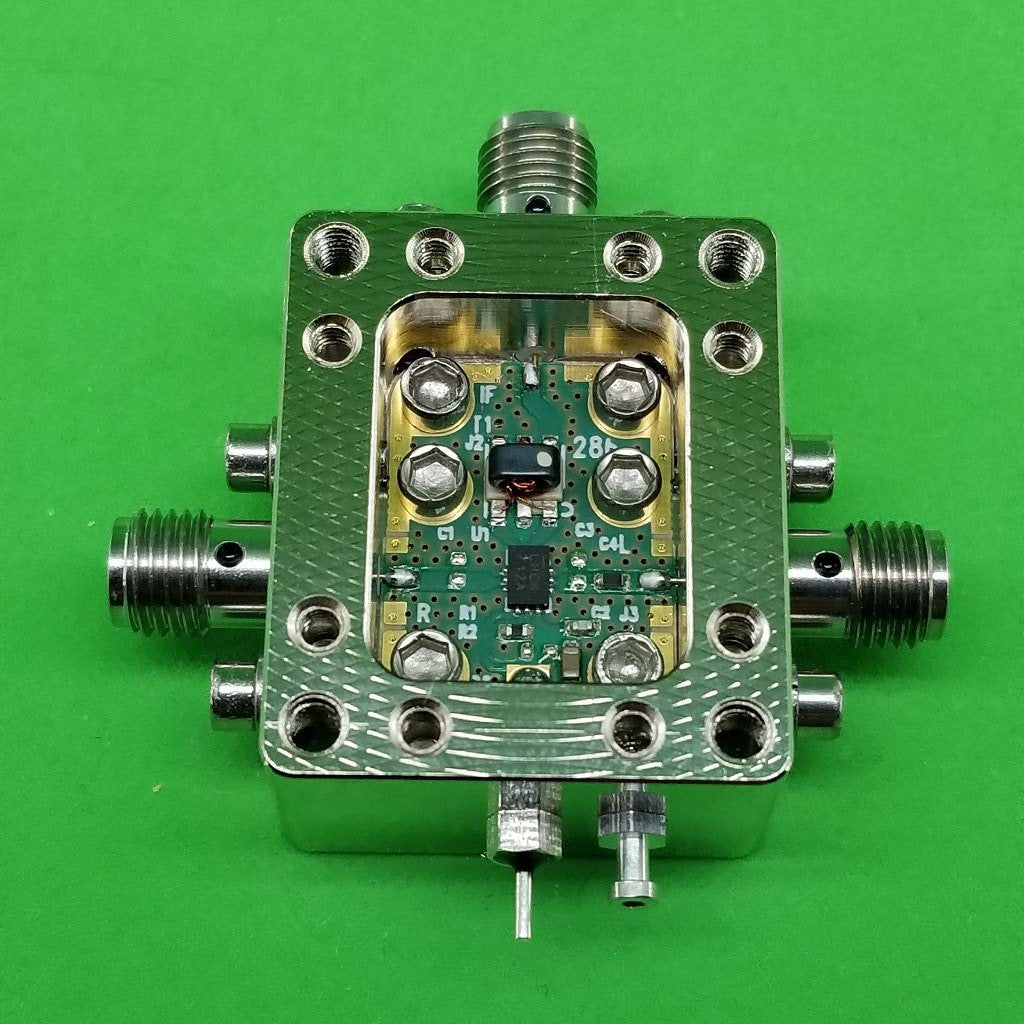

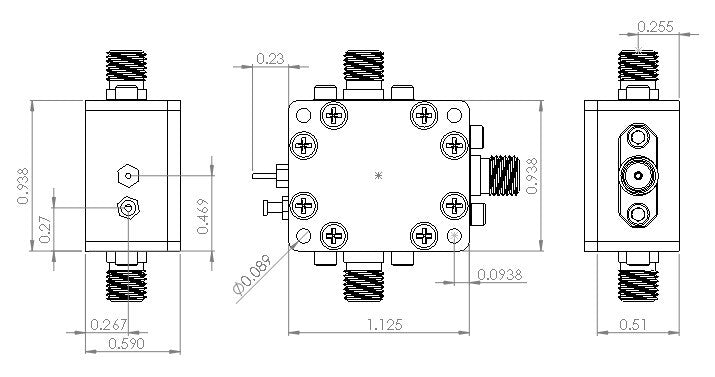

Enclosure is using RF Design Kit 6UDE2W6S1A3 with dimension 1.125"x0.9375x0.59". PCB Size is 0.75"x0.5625"x0.020" (DC). SKU#: AK20-001G.

Proudly Made in USA by Lotus Communication Systems, INC. in Massachusetts (www.lotussys.com).

Collections: Frequency Mixers


Features

  • Up-conversion or Down-conversion
  • High IIP3: +22.5dBm at 10GHz & +18.3dBm at 17GHz
  • 8dB Conversion Loss at 10GHz
  • +14.6dBm Input P1dB at 10GHz
  • Integrated LO Buffer: -6 to 6 dBm LO Drive
  • Low LO-RF Leakage: <-24dBm
  • 3.3V/132mA Supply
  • Use LTC5552 Part and Mini-circuits TC1-1-13M+ Balun
  • High Quality Rogers RO4350 RF PCB
  • ROHS Compliant

Applications

  • Microwave Transceivers/Point-to-Point Microwave
  • Test Instrument
  • Satellite MODEMs
  • C, X and Ku Band RADAR
  • Phased-Array Antennas
    • Software Defined Radio/Ham Radio

Resources (PDF Datasheet)

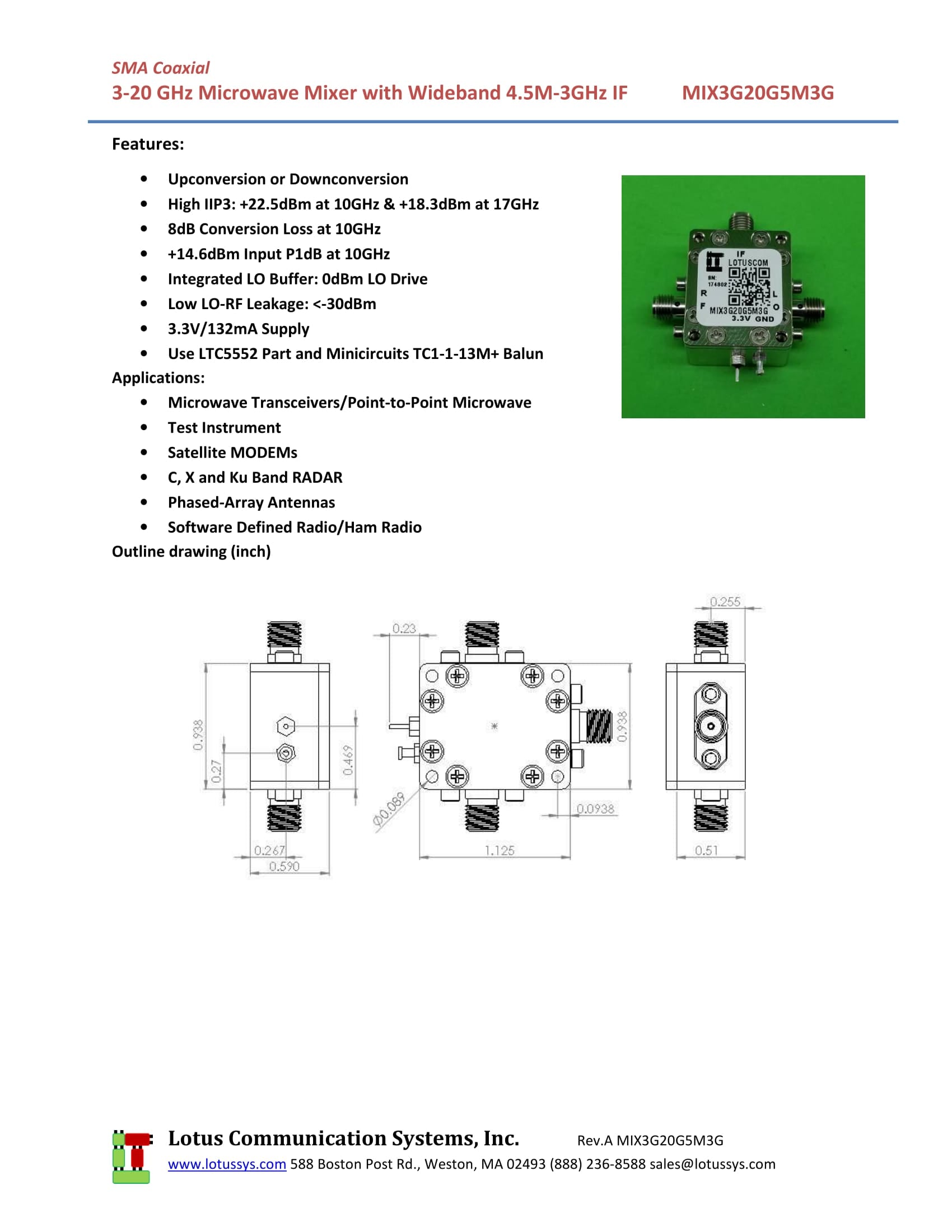

http://wwwimages.adobe.com/content/dam/acom/en/legal/images/badges/Adobe_PDF_file_icon_32x32.png MIX3G20G5M3G Datasheet
