Passive Frequency Mixer (MIX3P4G15G) 3.4G - 15GHz RF and DC - 4 GHz IF

1 item left

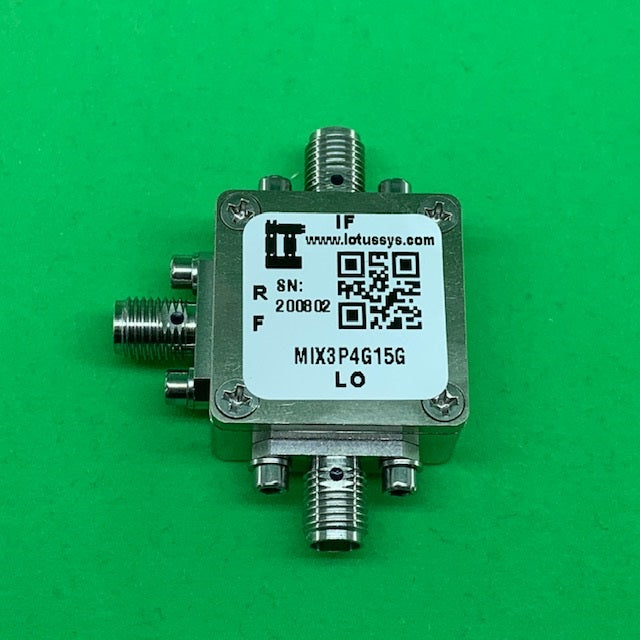

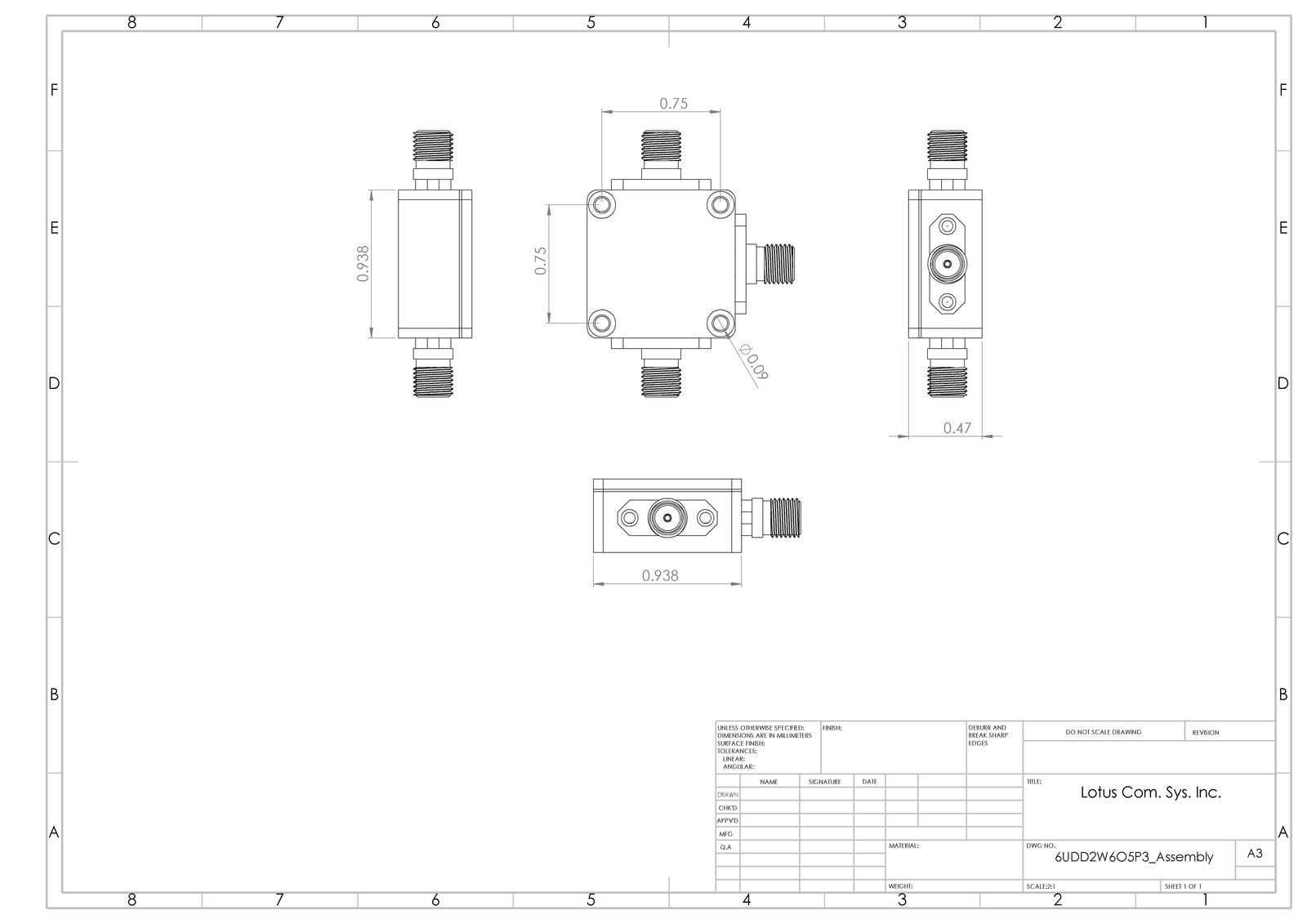

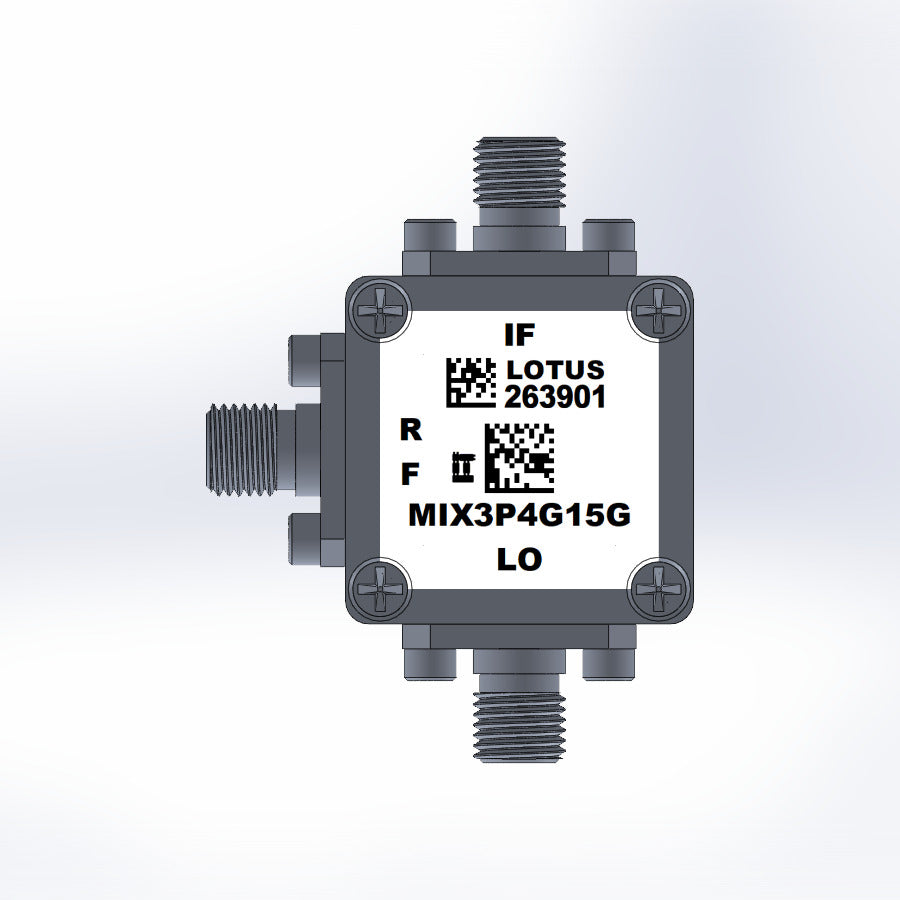

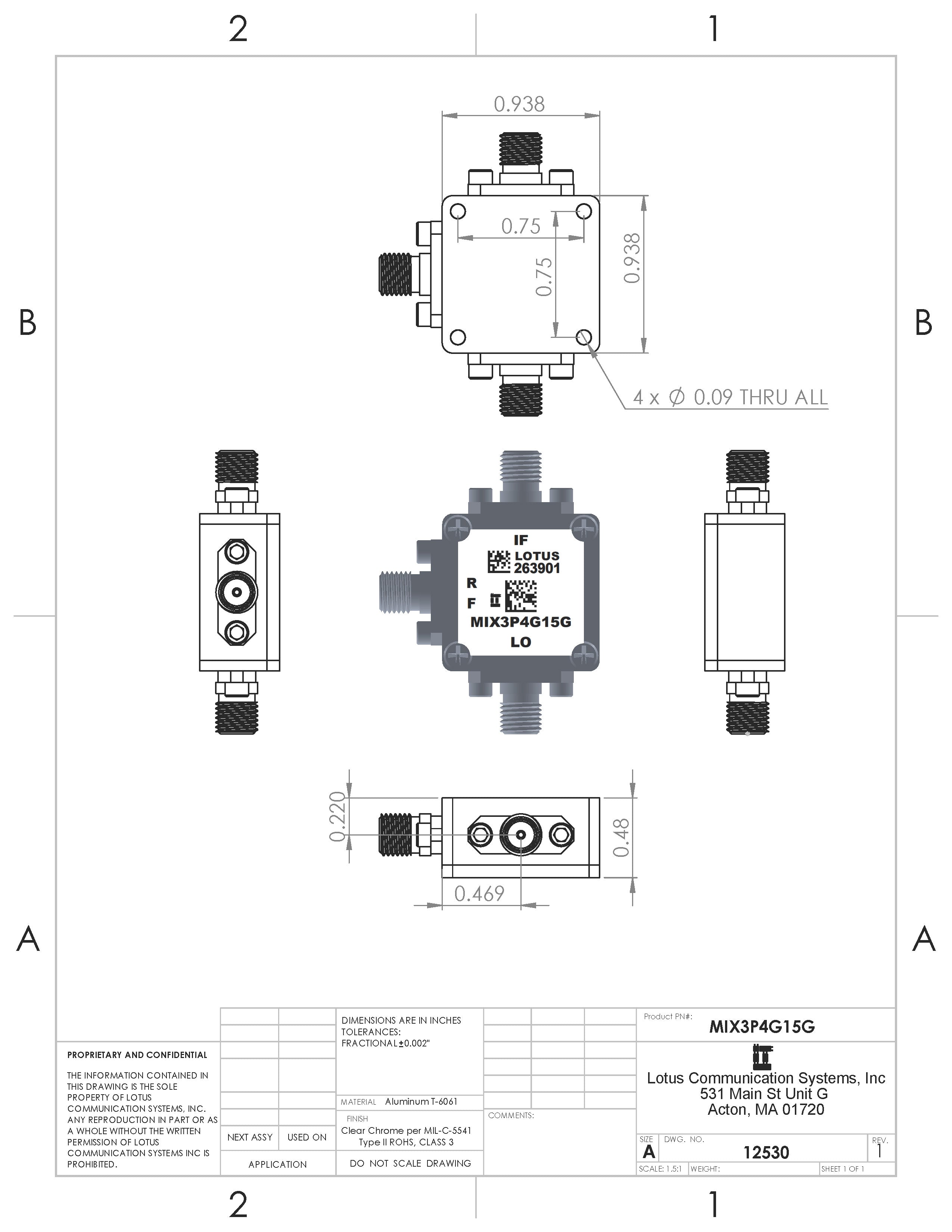

MIX3P4G15G is a Level 7 (LO Power +7 dBm) passive wide band frequency mixer (3400 to 15000 MHz) in a small 15/16”x15/16”x0.47” shielded RF enclosure (PN: 6UDD2W6S1P3). It has low insertion loss (6.8dB typ.) and excellent IF BW (DC to 4GHz). It can be used for up and down converter. SKU#: AK20-001E.

    * Frequency Range: 3400 MHz to 15000 MHz;
    * Low insertion loos, 6.8 dB typ.
    * LTCC double balanced mixer
    * Useable as up and down converter
    * High Quality Rogers RO4350 RF PCB
    (very low loss and high thermal performance)
    * ROHS Compliant
    * Operating Temp. (-40oC to 85oC)
    * Storage Temp. (-55oC to 100oC)
    * Maximum RF Power 50mW

    * Satellite up/down converter
    * Mobile Infrastructure
    * VSAT/ISM
    * General Purpose Wireless
    * SDR & Ham Radio
    * Test Instrumentation

Resources: MIX3P4G15G Datasheet

Proudly MADE IN USA.
